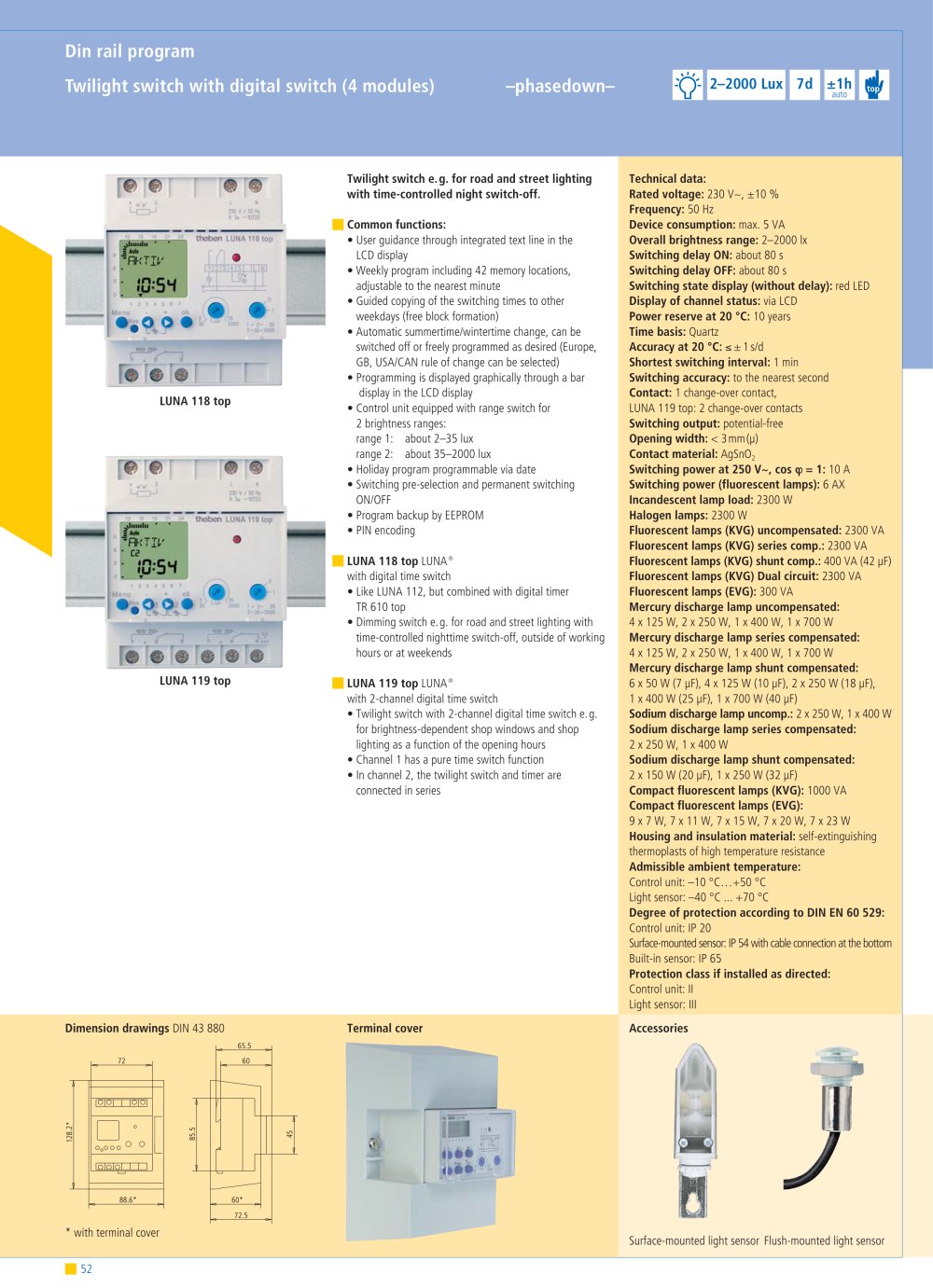

22000 Lux 7d ֱ1h
auto Twilight switch e.g. for road and street lightingwith time-controlled night switch-off.Common functions: 230 V~, 10 % Frequency: 50 Hz Device consumption: max. 5 VA ѕ User guidance through integrated text line in theLCD display Weekly program including 42 memory locations, adjustable to the nearest minuteՕ Guided copying of the switching times to otherweekdays (free block formation) Automatic summertime/wintertime change, can beswitched off or freely programmed as desired (Europe,
GB, USA/CAN rule of change can be selected)Օ Programming is displayed graphically through a bar display in the LCD display Control unit equipped with range switch for 2 brightness ranges:
range 1: about 2Ֆ35 lux
range 2: about 352000 lux֕ Holiday program programmable via date
Switching pre-selection and permanent switchingON/OFFՕ Program backup by EEPROM
PIN encoding Overall brightness range: 2Ֆ2000 lx Switching delay ON: about 80 s Switching delay OFF: about 80 s Switching state display (without delay): red LED Display of channel status: via LCD Control unit: II Light sensor: III Power reserve at 20 C: 10 years Protection class if installed as directed: Time basis: Quartz Accuracy at 20 аC: 1s/d Shortest switching interval: 1 min Control unit: IP 20
Surface-mounted sensor: IP 54 with cable connection at the bottom
Built-in sensor: IP65 Switching accuracy: to the nearest second LUNA 118 top
LUNA 119 top
Technical data:Rated voltage: Degree of protection according to DIN EN 60 529: Contact: Switching output: 1 change-over contact, LUNA 119 top: 2 change-over contacts potential-free LUNA 118 top LUNA Opening width: < 3mm(ѵ) Control unit: 10 ְC+50 ŰC
Light sensor: 40 ְC ... +70 C Contact material: AgSnO Housing and insulation material: Admissible ambient temperature: self-extinguishingthermoplasts of high temperature resistance Compact fluorescent lamps (KVG): 9 x 7 W, 7 x 11 W, 7 x 15 W, 7 x 20 W, 7 x 23 W >
2 1000 VA 2 x 150 W (20 еF), 1 x 250 W (32 F) Compact fluorescent lamps (EVG): Switching power at 250 V~, cos Տ Տ = 1: 10 A Switching power (fluorescent lamps): Sodium discharge lamp shunt compensated: 6 AX Incandescent lamp load: Sodium discharge lamp uncomp.: 2 x 250 W, 1 x 400 W 2300 W 2 x 250 W, 1 x 400 W Halogen lamps: Sodium discharge lamp series compensated: 2300 W Fluorescent lamps (KVG) uncompensated: 6 x 50 W (7 յF), 4 x 125 W (10 F), 2 x 250 W (18 յF), 1 x 400 W (25 F), 1 x 700 W (40 յF) 2300 VA Fluorescent lamps (KVG) series comp.: Mercury discharge lamp shunt compensated: 2300 VA >
Fluorescent lamps (KVG) shunt comp.: 4 x 125 W, 2 x 250 W, 1 x 400 W, 1 x 700 W 400 VA (42 εF) with digital time switch Like LUNA 112, but combined with digital timer TR 610 topՕ Dimming switch e.g. for road and street lighting withtime-controlled nighttime switch-off, outside of working
hours or at weekends Fluorescent lamps (KVG) Dual circuit: Mercury discharge lamp series compensated: 2300 VA Fluorescent lamps (EVG): 4 x 125 W, 2 x 250 W, 1 x 400 W, 1 x 700 W 300 VA Mercury discharge lamp uncompensated: LUNA 119 top LUNA >
with 2-channel digital time switchΕ Twilight switch with 2-channel digital time switch e.g.for brightness-dependent shop windows and shop
lighting as a function of the opening hours Channel 1 has a pure time switch function Օ In channel 2, the twilight switch and timer are connected in series DIN 43 880 AccessoriesTerminal coverDimension drawings >
72
60*88.6*72.5 6065.5 45
85.5 128.2* * with terminal cover Surface-mounted light sensor Flush-mounted light sensor 52 >
-
