To obtain a quick overview, an entered switching program
can be displayed in the form of a graph. You first receive
an overview for the entire year for all channels. By clicking
the desired day and channel, you receive an overview in
the zoom window exactly to the minute. >

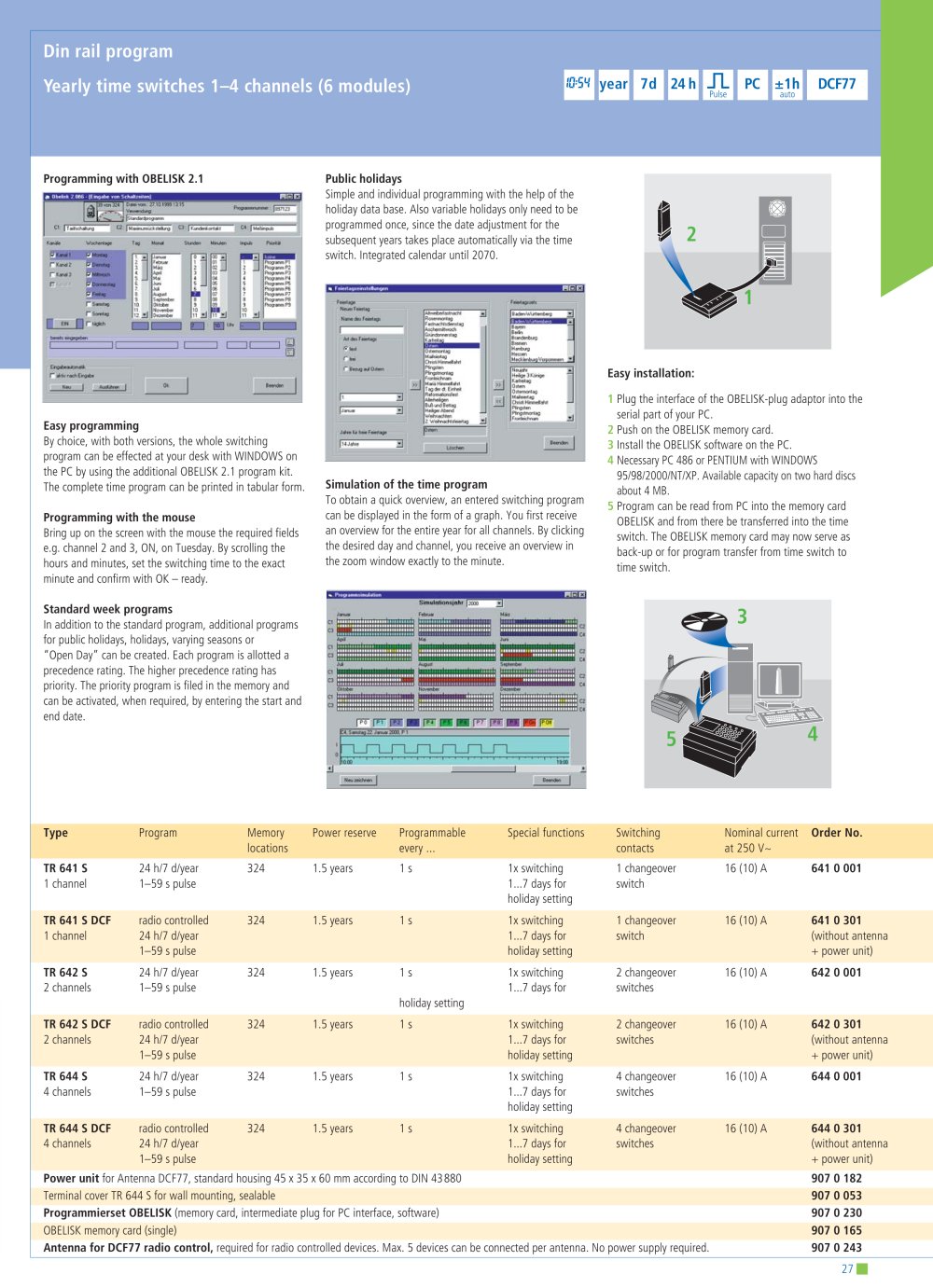

Yearly time switches 14 channels (6 modules)Din rail program
year 7d 24 h I I
Pulse
PC ֱ1h
auto
DCF77
12
Easy installation:1 Plug the interface of the OBELISK-plug adaptor into theserial part of your PC. Easy programming Programming with the mouse Standard week programs 2 Push on the OBELISK memory card. By choice, with both versions, the whole switching
program can be effected at your desk with WINDOWS on
the PC by using the additional OBELISK 2.1 program kit.
The complete time program can be printed in tabular form. Bring up on the screen with the mouse the required fields
e.g. channel 2 and 3, ON, on Tuesday. By scrolling the
hours and minutes, set the switching time to the exact
minute and confirm with OK ready. In addition to the standard program, additional programs
for public holidays, holidays, varying seasons or ֓Open Day can be created. Each program is allotted a
precedence rating. The higher precedence rating has
priority. The priority program is filed in the memory and
can be activated, when required, by entering the start and
end date. 3 Install the OBELISK software on the PC. 4 N ecessary PC 486 or PENTIUM with WINDOWS95/98/2000/NT/XP. Available capacity on two hard discs
about 4 MB. 5 Program can be read from PC into the memory cardOBELISK and from there be transferred into the time
switch. The OBELISK memory card may now serve as
back-up or for program transfer from time switch to
time switch. >
OBELISK Type ProgramMemoryPower reserveProgrammableSpecial functionsSwitchingNominal current Order No. locationsevery ...contactsat 250 V~ TR 641 S 24 h/7 d/year3241.5 years1 s1x switching1 changeover 16 (10) A 641 0 001 1 channel1Ԗ59 s pulse1...7 days forswitchholiday setting TR 641 S DCF radio controlled3241.5 years1 s1x switching1 changeover 16 (10) A 641 0 301 1 channel24 h/7 d/year1...7 days forswitch(without antenna159 s pulseholiday setting+ power unit) TR 642 S 24 h/7 d/year3241.5 years1 s1x switching2 changeover16 (10) A 642 0 001 2 channels1֖59 s pulse1...7 days forswitchesholiday setting TR 642 SDCF radio controlled3241.5 years1 s1x switching2 changeover16 (10) A 642 0 301 2 channels24 h/7 d/year1...7 days forswitches(without antenna159 s pulseholiday setting+ power unit) TR 644S 24 h/7 d/year3241.5 years1 s1x switching4 changeover16 (10) A 644 0 001 4 channels1֖59 s pulse1...7 days forswitchesholiday setting TR 644 S DCF radio controlled3241.5 years1 s1x switching4 changeover16 (10) A 644 0 301 4 channels24 h/7 d/year1...7 days forswitches(without antenna159 s pulseholiday setting+ power unit) Power unit for Antenna DCF77, standard housing 45 x 35 x 60 mm according to DIN 43880 907 0 182 Terminal cover TR 644 S for wall mounting, sealable 907 0 053Programmierset OBELISK (memory card, intermediate plug for PC interface, software) 907 0 230 OBELISK memory card (single) 907 0 165Antenna for DCF77 radio control, required for radio controlled devices. Max. 5 devices can be connected per antenna. No power supply required. 907 0 243 27 >
-
