General Catalogue 2008 - 196 Pages
WP106 >
A group company֕ 13 amp twin gang (only for britishsocket, german and french socket are
unswitched). 6 x 20 mm cable entries.
Օ Earth terminal and loop terminal in back box. Complies with BS1363 (for the britishsocket).Օ Mains isolator switch to isolate supplybefore lid can be opened. IP66 weatherproof rating.
Օ Impact resistant housing.
Locking boss feature. >
Shares all the features of the WP105 SingleGang TR 610 top2 DIN Timer above, plus:
Օ Enclosed Solar Timeswitch.
Precise astronomic calculation of sunrise and sunset times by entering date, time and location co-ordinates (latitude/
longitude or country/city).Օ Lights are switched ON and OFF according to sunrise and sunset times
and can be shifted 120 minutes from
these in either direction. Factory set time and date.
Օ 10 years battery reserve.
Energy saving night switching.
Օ Daily switching times are presented graphically on the LCD by a bar chart. 13 amp single gang switched socket(only for british socket, german and
french socket are unswitched).Օ 4 x 20 mm cable entries.
Earth terminal and loop terminal in back box.Օ Complies with BS1363 (for the britishsocket). IP66 weatherproof rating.
Օ Impact resistant housing.
Locking boss feature.
Օ Mains isolator switch ensures supply isolation before opening lid. >

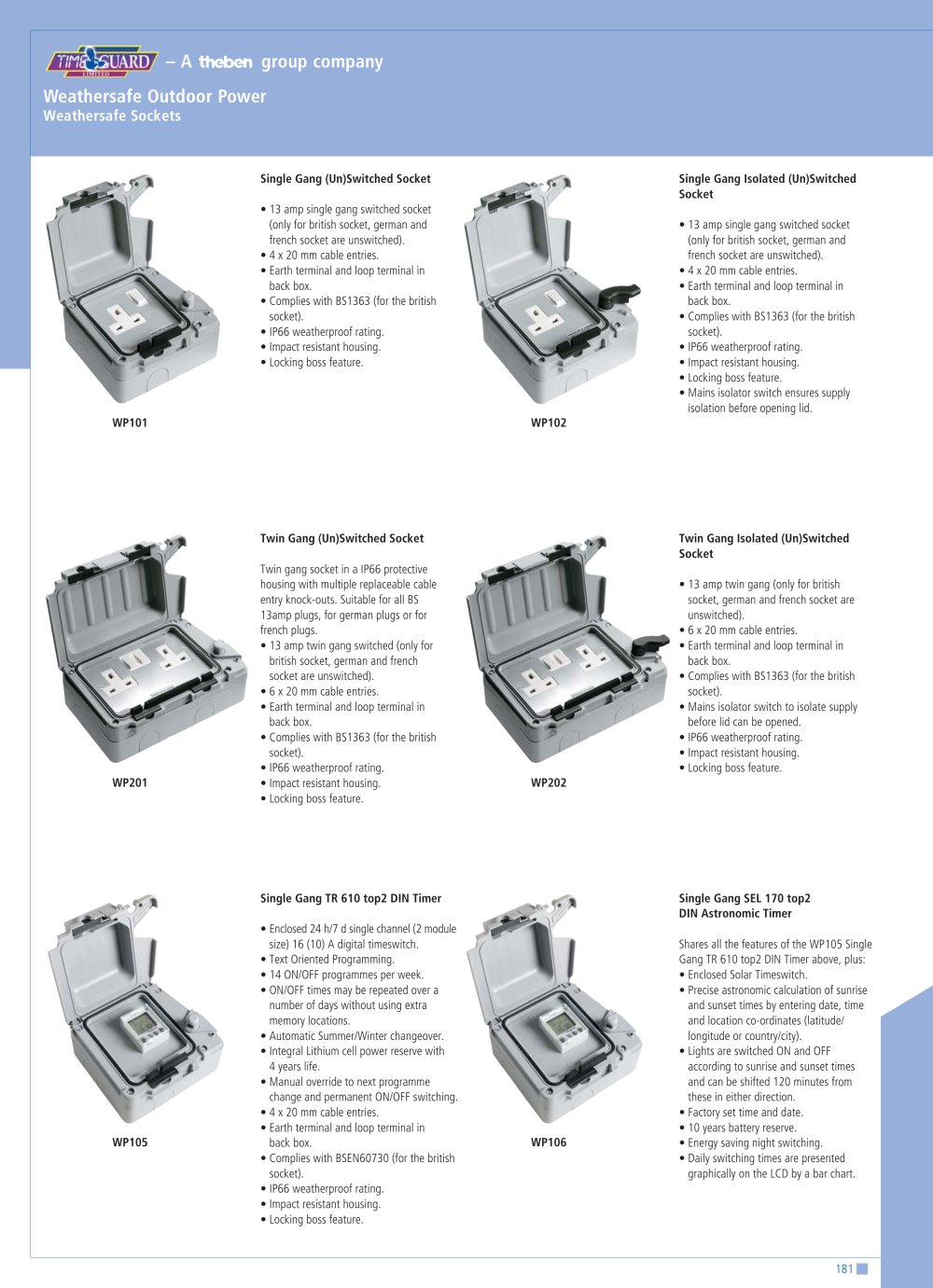

Weathersafe Sockets
WP102Twin Gang (Un)Switched Socket WP202Single Gang TR 610 top2 DIN Timer Single Gang (Un)Switched Socket 13 amp single gang switched socket(only for british socket, german and
french socket are unswitched).Օ 4 x 20 mm cable entries.
Earth terminal and loop terminal inback box.Օ Complies with BS1363 (for the britishsocket). IP66 weatherproof rating.
Օ Impact resistant housing.
Locking boss feature. WP201
Twin Gang Isolated (Un)SwitchedSocket WP105
Single Gang SEL 170 top2 DIN Astronomic Timer Օ Enclosed 24 h/7 d single channel (2 modulesize) 16 (10) A digital timeswitch. Text Oriented Programming.
Օ 14 ON/OFF programmes per week.
ON/OFF times may be repeated over a number of days without using extra memory locations.Օ Automatic Summer/Winter changeover.
Integral Lithium cell power reserve with 4 years life.Օ Manual override to next programme change and permanent ON/OFF switching. 4 x 20 mm cable entries.
Օ Earth terminal and loop terminal in back box. Complies with BSEN60730 (for the britishsocket).Օ IP66 weatherproof rating.
Impact resistant housing.
Օ Locking boss feature. WP101
Single Gang Isolated (Un)SwitchedSocket Twin gang socket in a IP66 protectivehousing with multiple replaceable cable
entry knock-outs. Suitable for all BS
13amp plugs, for german plugs or for
french plugs.
13 amp twin gang switched (only forbritish socket, german and french
socket are unswitched).Օ 6 x 20 mm cable entries.
Earth terminal and loop terminal inback box.Օ Complies with BS1363 (for the britishsocket). IP66 weatherproof rating.
Օ Impact resistant housing.
Locking boss feature. 181 >
-
