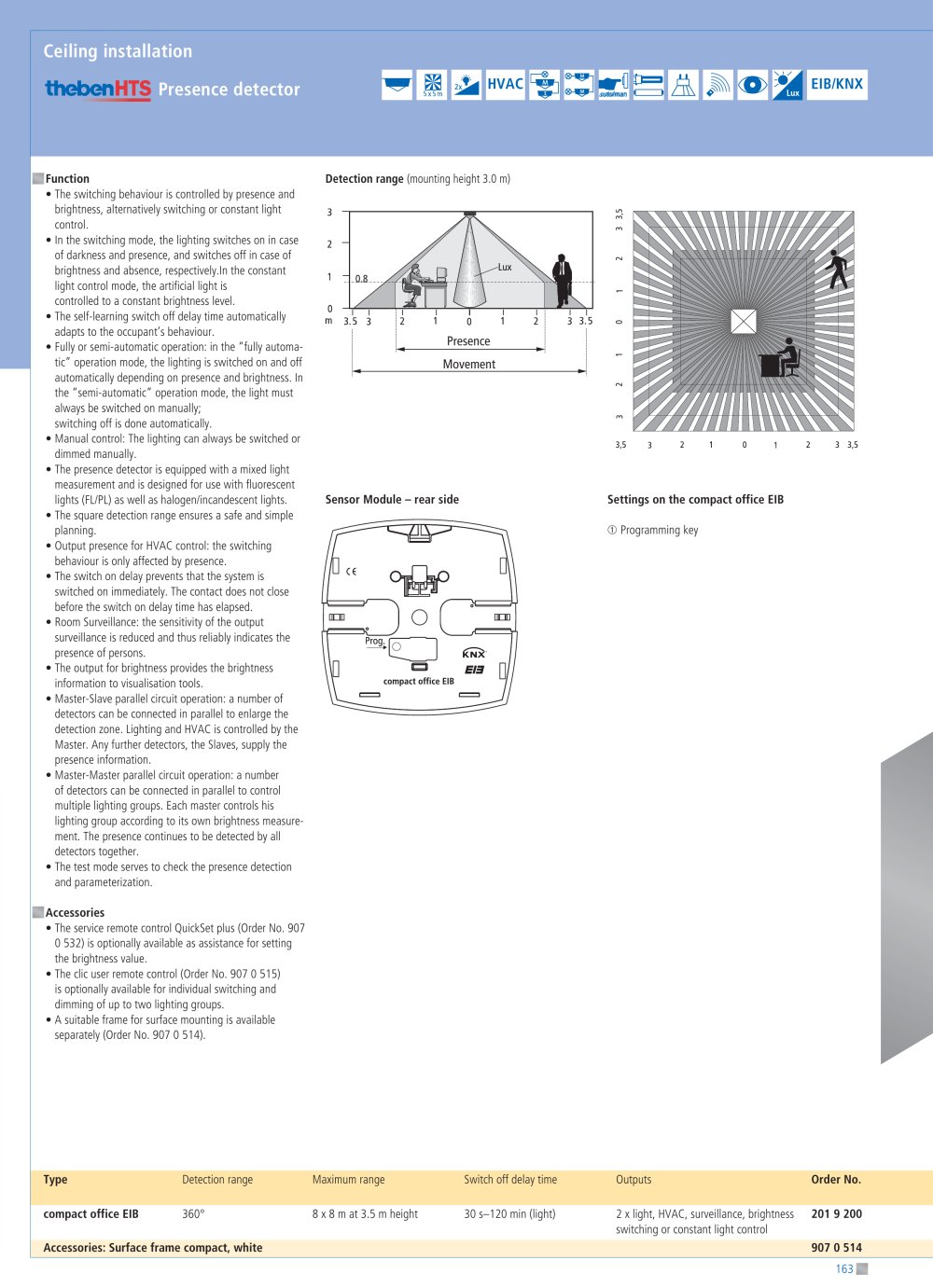

Function Detection range (mount i ng he i ght 3 . 0 m) The sw i tch i ng behav i our i s controlled by presence andbr i ghtness, alternat i vely sw i tch i ng or constant l i ghtcontrol . Օ In the sw i tch i ng mode, the l i ght i ng sw i tches on i n caseof darkness and presence, and sw i tches off i n case ofbr i ghtness and absence, respect i vely . In the constantl i ght control mode, the art i f i c i al l i ght i s controlled to a constant br i ghtness level . The self-learn i ng sw i tch off delay t i me automat i callyadapts to the occupantՒs behav i our . Fully or sem i -automat i c operat i on : i n the Փfully automa-t >
PresenceMovement
i c operat i on mode, the l i ght i ng i s sw i tched on and offautomat i cally depend i ng on presence and br i ghtness . Inthe ԓsem i -automat i c operat i on mode, the l i ght mustalways be sw i tched on manually; sw i tch i ng off i s done automat i cally . ԕ Manual control : The l i ght i ng can always be sw i tched ord i mmed manually . The presence detector i s equ i pped w i th a m i xed l i ghtmeasurement and i s des i gned for use w i th fluorescentl i ghts (FL/PL) as well as halogen/ i ncandescent l i ghts . Sensor Module Ֆ rear side Settings on the compact office EIB The square detect i on range ensures a safe and s i mpleplann i ng . Programm i ng key Օ Output presence for HVAC control : the sw i tch i ng behav i our i s only affected by presence . The sw i tch on delay prevents that the system i ssw i tched on i mmed i ately . The contact does not close before the sw i tch on delay t i me has elapsed . Օ Room Surve i llance : the sens i t i v i ty of the outputsurve i llance i s reduced and thus rel i ably i nd i cates thepresence of persons . The output for br i ghtness prov i des the br i ghtness i nformat i on to v i sual i sat i on tools . Օ Master-Slave parallel c i rcu i t operat i on : a number ofdetectors can be connected i n parallel to enlarge thedetect i on zone . L i ght i ng and HVAC i s controlled by theMaster . Any further detectors, the Slaves, supply thepresence i nformat i on . Master-Master parallel c i rcu i t operat i on : a number of detectors can be connected i n parallel to controlmult i ple l i ght i ng groups . Each master controls h i sl i ght i ng group accord i ng to i ts own br i ghtness measure-ment . The presence cont i nues to be detected by alldetectors together . Օ The test mode serves to check the presence detect i onand parameter i zat i on . Accessories The serv i ce remote control Qu i ckSet plus (Order No . 9070 532) i s opt i onally ava i lable as ass i stance for sett i ngthe br i ghtness value . Օ The cl i c user remote control (Order No . 907 0 515) i s opt i onally ava i lable for i nd i v i dual sw i tch i ng andd i mm i ng of up to two l i ght i ng groups . A su i table frame for surface mount i ng i s ava i lableseparately (Order No . 907 0 514) . Type Detect i on rangeMax i mum rangeSw i tch off delay t i meOutputs Order No. compact office EIB 360հ8 x 8 m at 3 . 5 m he i ght30 s120 m i n (l i ght)2 x l i ght, HVAC,surve i llance, br i ghtness 201 9 200 sw i tch i ng orconstant l i ght control Accessories: Surface frame compact, white907 0 514 163 >
-
