EIB/KNX

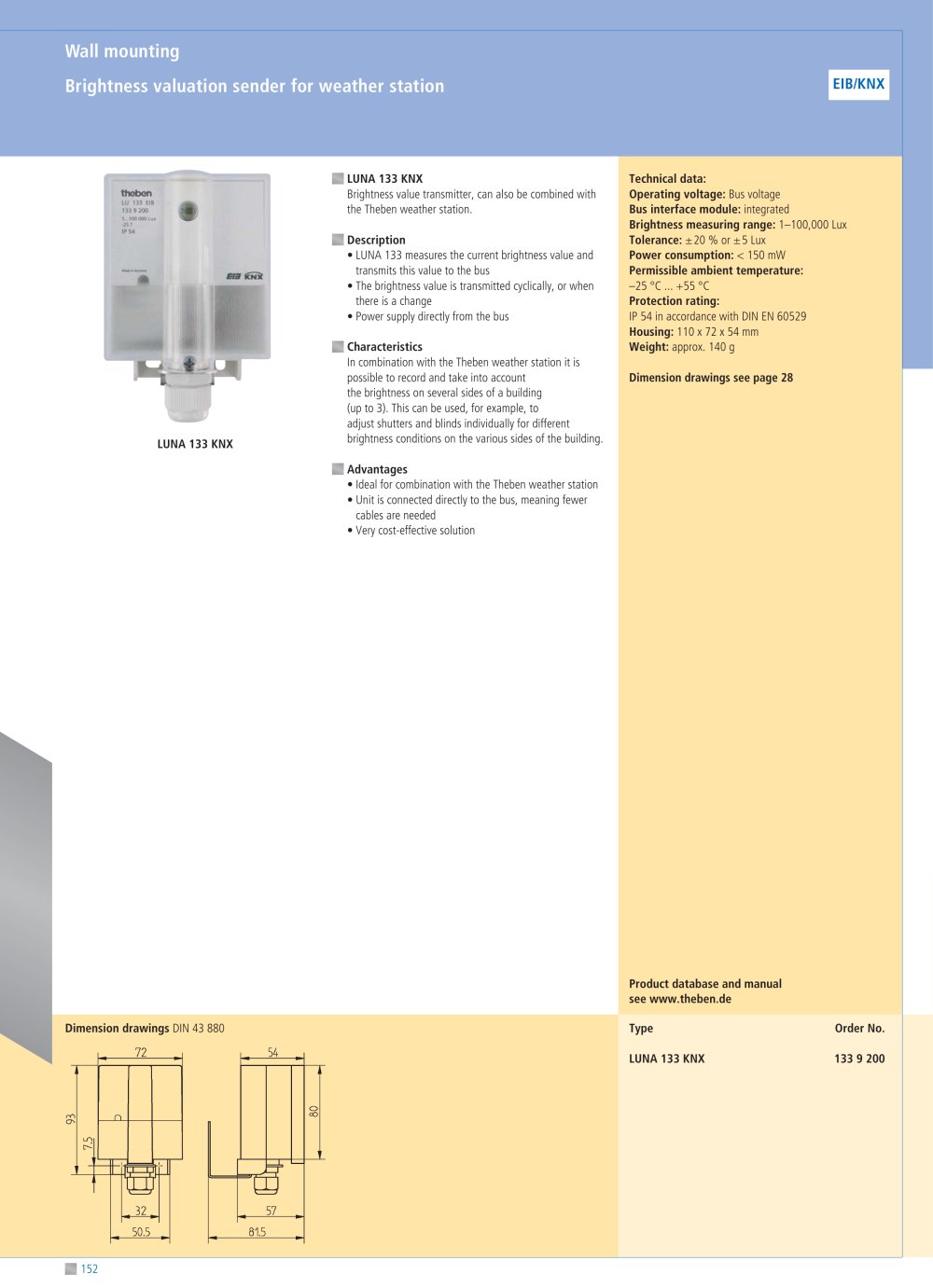

LUNA 133 KNX Technical data:Operating voltage: Brightness value transmitter, can also be combined with
the Theben weather station. Bus voltage Description Bus interface module: Housing: 110 x 72 x 54 mm integrated Brightness measuring range: IP 54 in accordance with DIN EN 60529 Weight: approx. 140 g 1100,000 Lux Tolerance: Protection rating: ֱ20 % or 5 Lux ѕ LUNA 133 measures the current brightness value andtransmits this value to the bus Power consumption: 25 ְC ... +55 C < 150 mW Permissible ambient temperature: Е The brightness value is transmitted cyclically, or when
there is a change Advantages Power supply directly from the bus Characteristics In combination with the Theben weather station it is
possible to record and take into account the brightness on several sides of a building (up to 3). This can be used, for example, to
adjust shutters and blinds individually for different
brightness conditions on the various sides of the building. Dimension drawings see page 28 LUNA 133 KNX Օ Ideal for combination with the Theben weather station Unit is connected directly to the bus, meaning fewercables are needed Օ Very cost-effective solution Product database and manual
see www.theben.de Dimension drawings DIN 43 880 TypeOrder No.LUNA 133 KNX133 9 200 152 >
-
