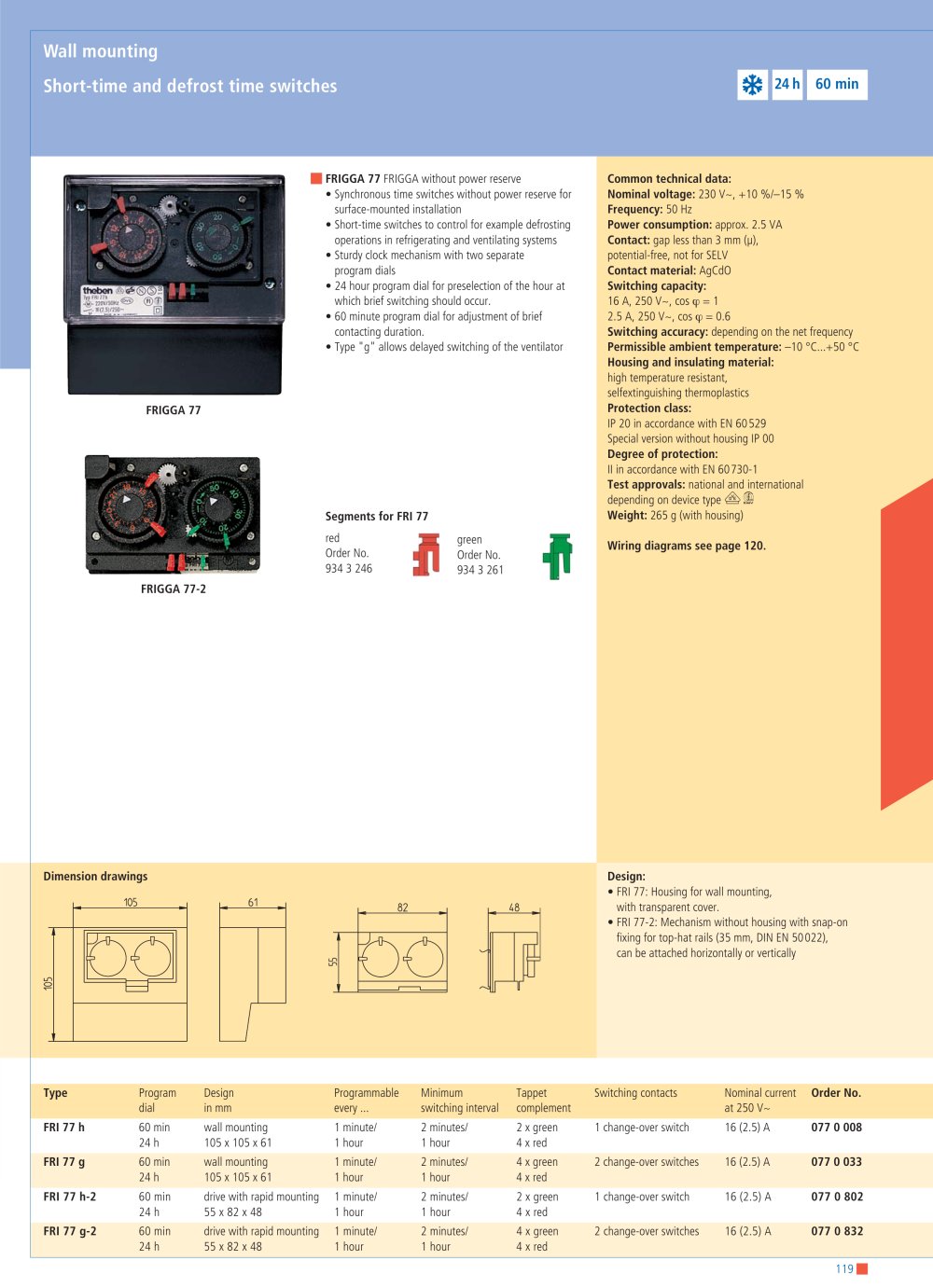

| FRIGGA 77 FRIGGA without power reserve • Synchronous time switches without power reserve for surface-mounted installation • Short-time switches to control for example defrosting operations in refrigerating and ventilating systems • Sturdy clock mechanism with two separate program dials • 24 hour program dial for preselection of the hour at which brief switching should occur. • 60 minute program dial for adjustment of brief contacting duration • Type "g" allows delayed switching of the ventilator | Common technical data: Nominal voltage: 230 V~, +10 %/-15 % Frequency: 50 Hz Power consumption: approx. 2.5 VA Contact: gap less than 3 mm (u), potential-free, not for SELV Contact material: AgCdO Switching capacity: 16 A, 250 V~, costp = 1 2.5 A, 250 V~, costp = 0.6 Switching accuracy: depending on the net frequency Permissible ambient temperature: -10 °C...+50 °C Housing and insulating material: high temperature resistant, selfextinguishing thermoplastics Protection class: IP 20 in accordance with EN 60529 Special version without housing IP 00 Degree of protection: II in accordance with EN 60730-1 Test approvals: national and international depending on device type <^ifii Weight: 265 g (with housing) Wiring diagrams see page 120. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FRIGGA 77 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Segments for FRI 77 red Order No. 934 3 246 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| green Order No. 934 3 261 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FRIGGA 77-2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension drawings 105 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Design: • FRI 77: Housing for wall mounting, with transparent cover. • FRI 77-2: Mechanism without housing with snap-on fixing for top-hat rails (35 mm, DIN EN 50022), can be attached horizontally or vertically | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
