General Catalogue 2008 - 196 Pages

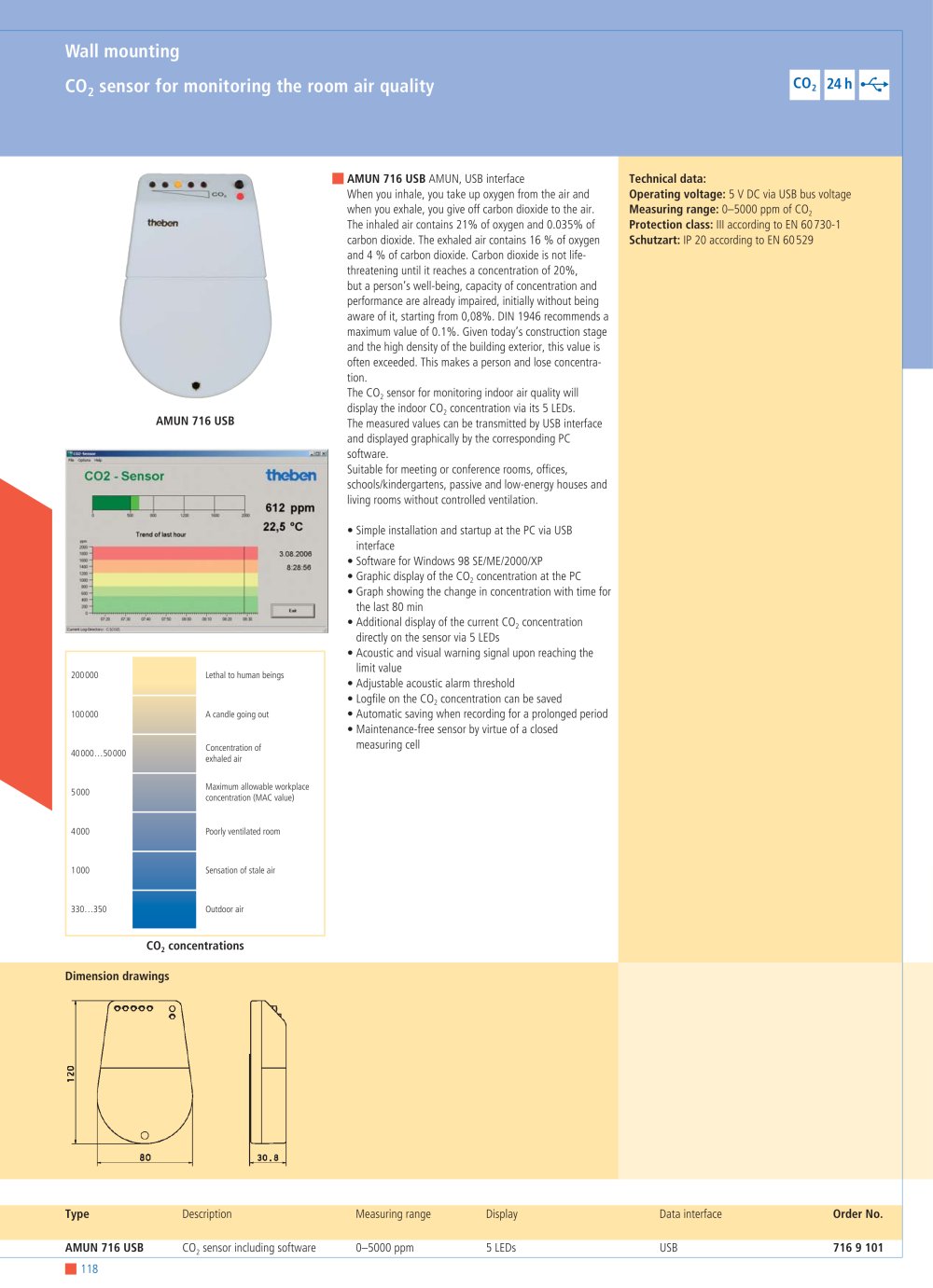

| Wall mounting C02 sensor for monitoring the room air quality | ||||||||||||||||||||||||||||||||||||||
| 24h -V | ||||||||||||||||||||||||||||||||||||||
| | AMUN 716 USB AMUN, USB interface When you inhale, you take up oxygen from the air and when you exhale, you give off carbon dioxide to the air. The Inhaled air contains 21 % of oxygen and 0.035% of carbon dioxide. The exhaled air contains 16 % of oxygen and 4 % of carbon dioxide. Carbon dioxide Is not life-threatening until it reaches a concentration of 20%, but a person's well-being, capacity of concentration and performance are already Impaired, Initially without being aware of it, starting from 0,08%. DIN 1946 recommends a maximum value of 0.1 %. Given today's construction stage and the high density of the building exterior, this value Is often exceeded. This makes a person and lose concentration. The C02 sensor for monitoring Indoor air quality will display the Indoor C02 concentration via Its 5 LEDs. The measured values can be transmitted by USB Interface and displayed graphically by the corresponding PC software. Suitable for meeting or conference rooms, offices, schools/kindergartens, passive and low-energy houses and Iving rooms without controlled ventilation. • Simple Installation and startup at the PC via USB nterface • Software for Windows 98 SE/ME/2000/XP • Graphic display of the C02 concentration at the PC • Graph showing the change In concentration with time for the last 80 mln • Additional display of the current C02 concentration directly on the sensor via 5 LEDs • Acoustic and visual warning signal upon reaching the limit value • Adjustable acoustic alarm threshold • Logflle on the C02 concentration can be saved • Automatic saving when recording for a prolonged period • Maintenance-free sensor by virtue of a closed measuring eel | ||||||||||||||||||||||||||||||||||||||
| Technical data: Operating voltage: 5 V DC via USB bus voltage Measuring range: 0-5000 ppm of C02 Protection class: III according to EN 60730-1 Schutzart: IP 20 according to EN 60 529 | ||||||||||||||||||||||||||||||||||||||
| •_• • • "—----ico, - | ||||||||||||||||||||||||||||||||||||||
| №obefi | ||||||||||||||||||||||||||||||||||||||
| AMUN 716 USB | ||||||||||||||||||||||||||||||||||||||
| ttieben 61! ppm 22,5 *C 3.0B.2͌W a ;s M | ||||||||||||||||||||||||||||||||||||||
| C02 - Sensor | ||||||||||||||||||||||||||||||||||||||
| Turivi Itthum | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| C02 concentrations Dimension drawings | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
-
