| fCIM IIIUUIIllllLj igital clock thermostat with radio control | |||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||

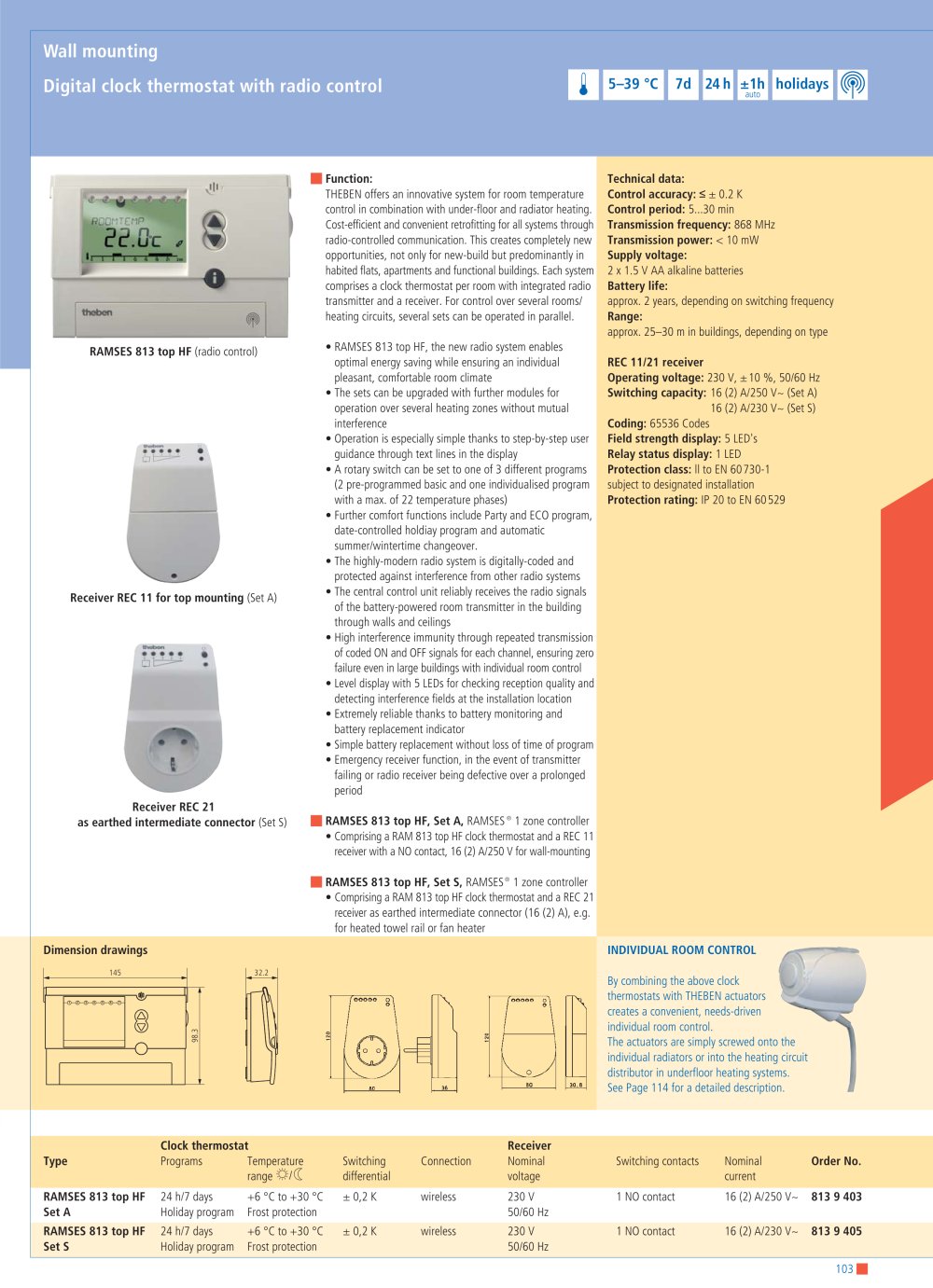

| I Function: THEBEN offers an innovative system for room temperature control in combination with under-floor and radiator heating. I Cost-efficient and convenient retrofitting for all systems through I radio-controlled communication. This creates completely new I opportunities, not only for new-build but predominantly in habited flats, apartments and functional buildings. Each system I comprises a clock thermostat per room with integrated radio I transmitter and a receiver. For control over several rooms/ heating circuits, several sets can be operated in parallel. • RAMSES 813 top HF, the new radio system enables optimal energy saving while ensuring an individual pleasant, comfortable room climate • The sets can be upgraded with further modules for operation over several heating zones without mutual interference • Operation is especially simple thanks to step-by-step user I guidance through text lines in the display • A rotary switch can be set to one of 3 different programs I (2 pre-programmed basic and one individualised program I with a max. of 22 temperature phases) • Further comfort functions include Party and ECO program, I date-controlled holdiay program and automatic summer/wintertime changeover. • The highly-modern radio system is digitally-coded and protected against interference from other radio systems • The central control unit reliably receives the radio signals I of the battery-powered room transmitter in the building through walls and ceilings • High interference immunity through repeated transmission I of coded ON and OFF signals for each channel, ensuring zero I failure even in large buildings with individual room control • Level display with 5 LEDs for checking reception quality and I detecting interference fields at the installation location • Extremely reliable thanks to battery monitoring and battery replacement indicator • Simple battery replacement without loss of time of program I • Emergency receiver function, in the event of transmitter failing or radio receiver being defective over a prolonged I period I RAMSES 813 top HF, Set A, RAMSES8 1 zone controller • Comprising a RAM 813 top HF clock thermostat and a REC 11 receiver with a NO contact, 16(2) A/250 V for wall-mounting I I RAMSES 813 top HF, Set S, RAMSES® 1 zone controller • Comprising a RAM 813 top HF clock thermostat and a REC 211 receiver as earthed intermediate connector (16 (2) A), e.g. I for heated towel rail or fan heater | |||||||||||||||||||||||||||||||||||||||||||||||
| Technical data: Control accuracy: < ± 0.2 K Control period: 5..30 min Transmission frequency: 868 MHz Transmission power: < 10 mW Supply voltage: 2 x 1.5 VAA alkaline batteries Battery life: approx. 2 years, depending on switching frequency Range: approx. 25-30 m in buildings, depending on type REC 11/21 receiver Operating voltage: 230 V, ±10 %, 50/60 Hz Switching capacity: 16 (2) A/250 V~ (Set A) 16 (2) A/230 V~ (Set S) Coding: 65536 Codes Field strength display: 5 LEDs Relay status display: 1 LED Protection class: II to EN 60730-1 subject to designated installation Protection rating: IP 20 to EN 60529 | |||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||
| Receiver REC 11 for top mounting (Set A) | |||||||||||||||||||||||||||||||||||||||||||||||
| Receiver REC 21 as earthed intermediate connector (Set S) | |||||||||||||||||||||||||||||||||||||||||||||||
| Dimension drawings 145 | |||||||||||||||||||||||||||||||||||||||||||||||
| INDIVIDUAL ROOM CONTROL | |||||||||||||||||||||||||||||||||||||||||||||||
| r By combining the above clock thermostats with THEBEN actuators creates a convenient, needs-driven individual room control. The actuators are simply screwed onto the individual radiators or into the heating circuit distributor in underfloor heating systems. See Page 114 for a detailed description. | |||||||||||||||||||||||||||||||||||||||||||||||
