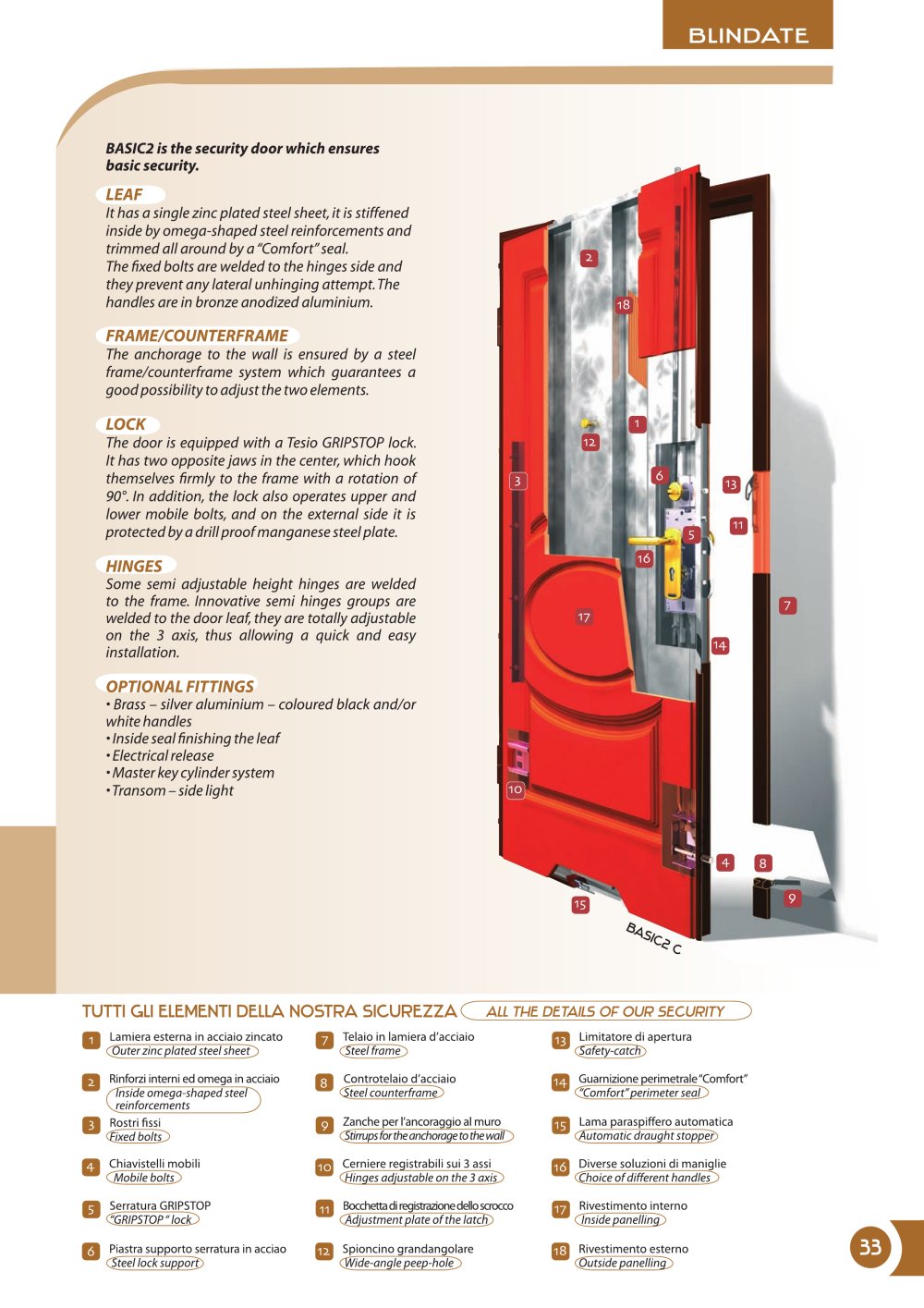

BASIC2 is the security door which ensures basic security.
It has a single zinc plated steel sheet, it is stiffened inside by omega-shaped steel reinforcements and trimmed all around by a "Comfort" seal. The fixed bolts are welded to the hinges side and they prevent any lateral unhinging attempt. The handles are in bronze anodized aluminium.
FRAME/COUNTERFRAME
The anchorage to the wall is ensured by a steel frame/counterframe system which guarantees a good possibility to adjust the two elements.
LOCK
The door is equipped with a Tesio GRIPSTOP lock. It has two opposite jaws in the center, which hook themselves firmly to the frame with a rotation of 90°. In addition, the lock also operates upper and lower mobile bolts, and on the external side it is protected by a drill proof manganese steel plate.
HINGES
Some semi adjustable height hinges are welded to the frame. Innovative semi hinges groups are welded to the door leaf, they are totally adjustable on the 3 axis, thus allowing a quick and easy installation.
OPTIONAL FITTINGS
• Brass - silver aluminium - coloured black and/or white handles
• Inside seal finishing the leaf ' Electricalrelease
• Master key cylinder system
• Transom - side light
TUTTI GU ELEMENTI DELLA NOSTRA SICUREZZA C ALL THE DETAILS OF OUR SECURITY ~)
Lamiera esterna in acciaio zincato (Outer zinc plated steel sheet}
Rinforzi interni ed omega in acciaio Inside omega-shaped steel reinforcements_
Rostri fissi (Sxedbolts}
Chiavistelli mobili Mobileboltù
Serratura GRIPSTOP
(tGRIPSTOP'Iociù
Piastra supporto serratura in acciao Steel lock support
Telaio in lamiera d'acciaio (Steel frame}
Controtelaio d'acciaio ^Steel counterframe}
Zanche per l'ancoraggio al muro StirrupsforthearKnoragetothewall
Cerniere registrabili sui 3 assi (&inges adjustable onthe3axit)
RI Limitatore di apertura
<$afay-cateff)
ffl Guarnizione perimetrale "Comfort" (Somfotf perimeter seaQ
n Lama paraspiffero automatica (automatic draught stopper
fl3 Diverse soluzioni di maniglie <£hoice of different handles}
RI Rivestimento interna Inside panelling
I Bocchetta di regstrazionedelb scrocco (Adjustment plate of the laicR)
Q Spioncino grandangolare Wide-angle peep-hole
Rivestimento esterno Outside panelling
