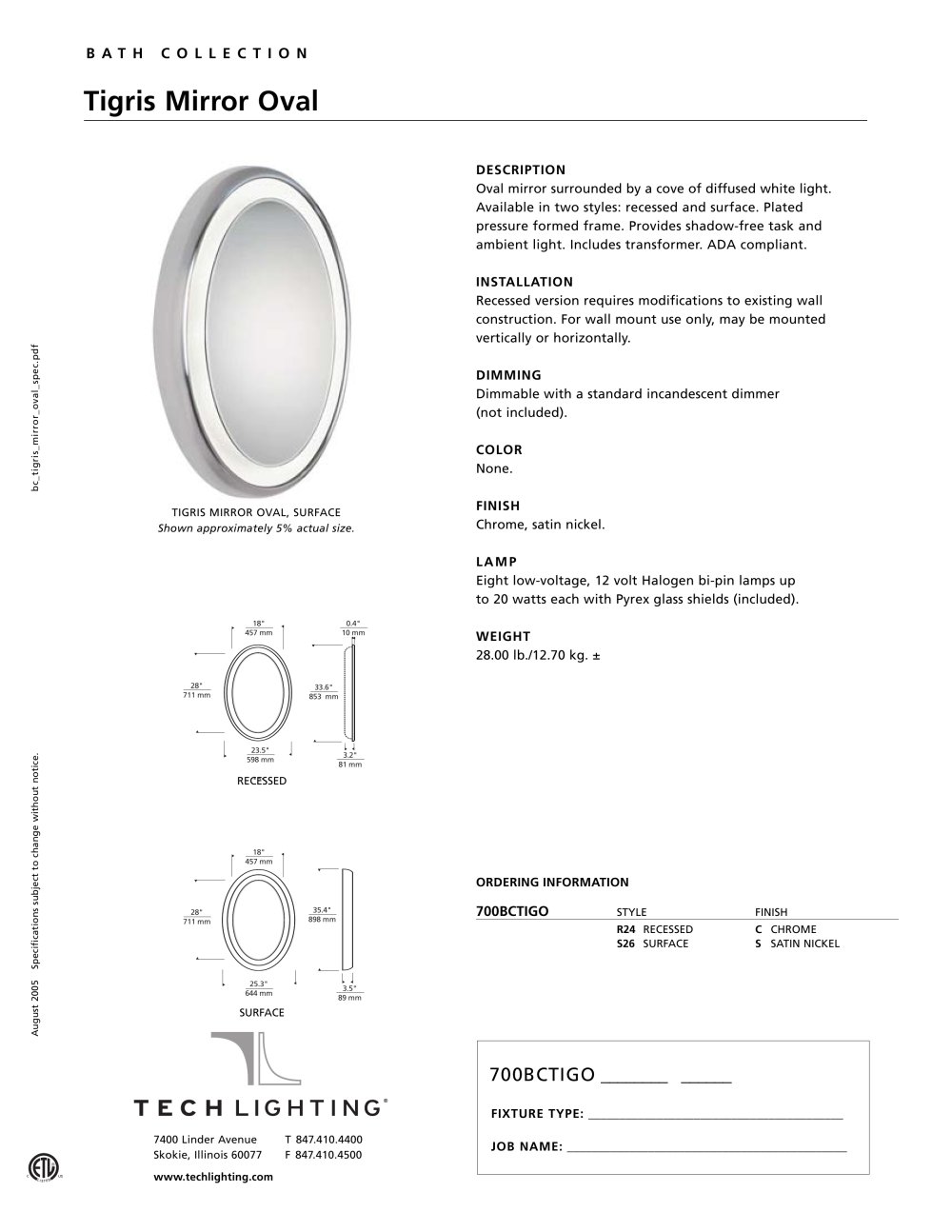

BATH COLLECTION
Tigris Mirror Oval
DESCRIPTION
Oval mirror surrounded by a cove of diffused white light. Available in two styles: recessed and surface. Plated pressure formed frame. Provides shadow-free task and ambient light. Includes transformer. ADA compliant.
INSTALLATION
Recessed version requires modifications to existing wall construction. For wall mount use only, may be mounted vertically or horizontally.
DIMMING
Dimmable with a standard incandescent dimmer (not included).
COLOR
None. FINISH
Chrome, satin nickel.
TIGRIS MIRROR OVAL, SURFACE Shown approximately 5% actual size.
LAMP
Eight low-voltage, 12 volt Halogen bi-pin lamps furniture up to 20 watts each with Pyrex glass shields (included).
WEIGHT
28.00 lb./12.70 kg. ±
18" 457 mm
0.4" 10 mm
28" 711 mm
33.6" 853 mm
l ¡
3.2" 81 mm
23.5" 598 mm
O C
RE ""¡SED
01
-C
o 1}
o
(1)
Q. V>
Lfl O
o
r\l 01
18" 457 mm
ORDERING INFORMATION 700BCTIGO STYLE
35.4" 898 mm
FINISH
28" 711 mm
R24 RECESSED S26 SURFACE
CHROME SATIN NICKEL
L J
3.5" 89 mm
25.3" 644 mm
SURFACE
IL
700BCTIGO
FIXTURE TYPE: JOB NAME:
TECH LIGHTING"
7400 Linder Avenue Skokie, Illinois 60077
T 847.410.4400 F 847.410.4500
www.techlighting.com
