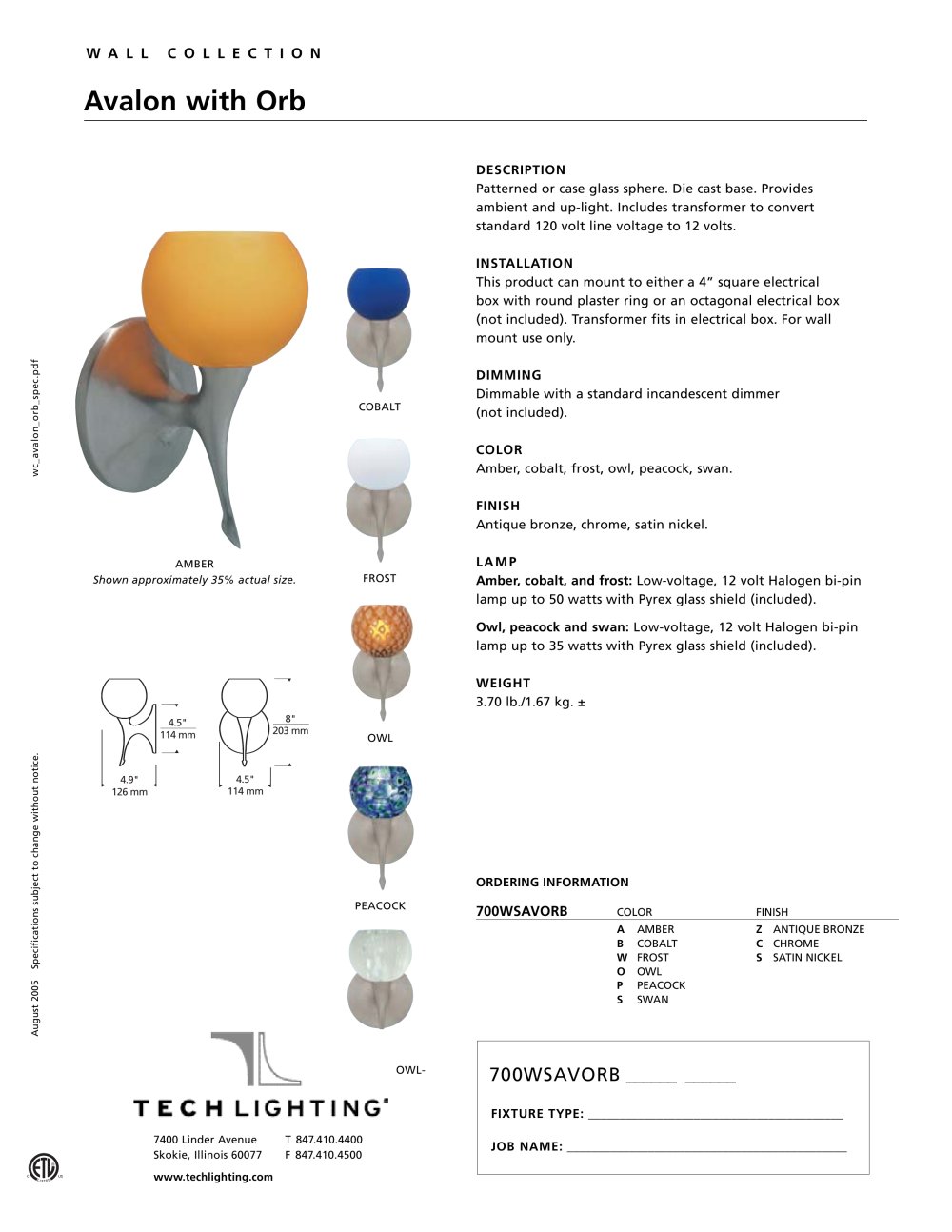

WALL COLLECTION
Avalon with Orb
DESCRIPTION
Patterned or case glass sphere. Die cast base. Provides ambient and up-light. Includes transformer to convert standard 120 volt line voltage to 12 volts.
INSTALLATION
This product can mount to either a 4" square electrical box with round plaster ring or an octagonal electrical box (not included). Transformer fits in electrical box. For wall mount use only.
DIMMING
Dimmable with a standard incandescent dimmer (not included).
COLOR
Amber, cobalt, frost, owl, peacock, swan. FINISH
Antique bronze, chrome, satin nickel.
Amber, cobalt, and frost: Low-voltage, 12 volt Halogen bi-pin lamp up to 50 watts with Pyrex glass shield (included).
Owl, peacock and swan: Low-voltage, 12 volt Halogen bi-pin lamp up to 35 watts with Pyrex glass shield (included).
WEIGHT
3.70 lb./1.67 kg. ±
COBALT
AMBER
Shown approximately 35% actual size.
FROST
OWL
o
C
114 mm
126 mm
0) -C
o
1} I?
O (0
(1) Q. l/l
L/Ì O O fN
ORDERING INFORMATION 700WSAVORB color
PEACOCK
finish
A amber
B cobalt
W frost
O owl
P peacock
S swan
Z ANTIQUE BRONZE
C CHROME
S SATIN NICKEL
01
OWL-
700WSAVORB
FIXTURE TYPE: JOB NAME:
7400 Linder Avenue Skokie, Illinois 60077
T 847.410.4400 F 847.410.4500
www.techlighting.com
