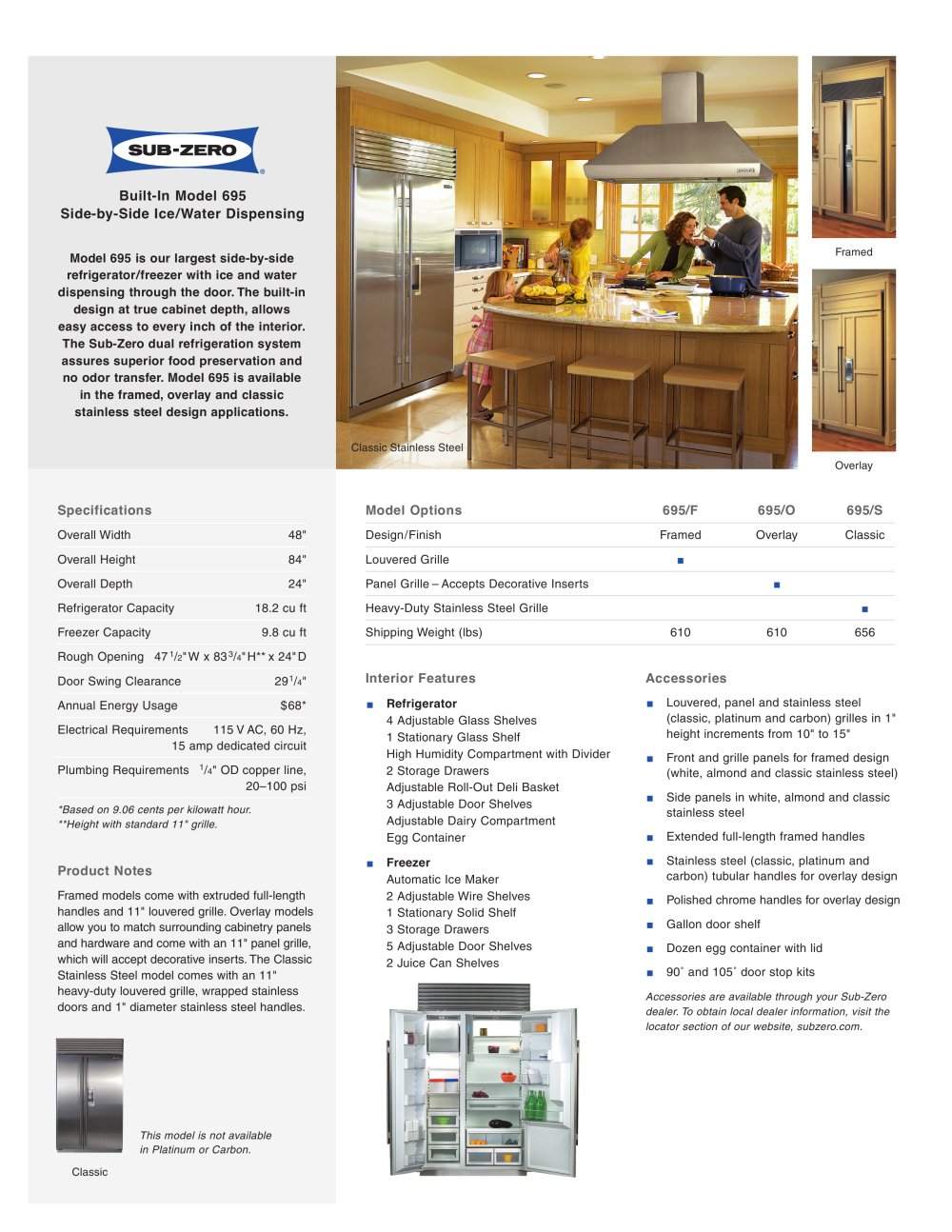

| | | Built-In Model 695 Side-by-Side Ice/Water Dispensing modern design at true architectural cabinet depth, allows easy access to every inch of the interior. The Sub-Zero dual refrigeration system assures superior food preservation and no odor transfer. Model 695 is available in the framed, overlay and classic stainless steel design applications. | | |
| | | |
| | | Classic Stainless Steel | | |
| | | |
| | | Overlay | | |
| | | |
| | | | | | | | | | | | | Specifications | Model Options | 695/F | 695/O 695/S | | | | Overall Width | 48" | Design/Finish | Framed | Overlay Classic | | | | Overall Height | 84" | Louvered Grille | ■ | | | | | Overall Depth | 24" | Panel Grille-Accepts Decorative Inserts | | ■ | | | | Refrigerator Capacity | 18.2 cu ft | Heavy-Duty Stainless Steel Grille | | ■ | | | | Freezer Capacity | 9.8 cu ft | Shipping Weight (lbs) | 610 | 610 656 | | | | Rough Opening 471/2"W x 833/4" H** x 24" D | | | | | | | Door Swing Clearance | 291/4" | Interior Features | Accessories | | | | | Annual Energy Usage | $68* | ■ Refrigerator | ■ Louvered, panel and stainless steel | | | | | | | | | | | | |
| | | | |
| | | (classic, platinum and carbon) design grilles in 1" height increments from 10" to 15" ■ Front and grille building panels for framed design (white, almond and classic stainless steel) ■ Side panels in white, almond and classic stainless steel ■ Extended full-length framed handles ■ Stainless steel (classic, platinum and carbon) tubular handles for overlay design ■ Polished chrome handles for overlay design ■ Gallon door shelf ■ Dozen egg container with lid ■ 90" and 105" door stop kits | |
| | | 1 Stationary Glass Shelf 3 Adjustable Door Home shelves Adjustable Dairy Compartment Egg Container Freezer Automatic Ice Maker 2 Adjustable Wire Shelves 1 Stationary Solid Shelf 3 Storage Drawers 5 Adjustable Door Shelves 2 Juice Can Shelves | | |
| | | Electrical Requirements 115 V AC, 60 Hz, 15 amp dedicated circuit Plumbing Requirements 1/4" OD copper line, 20-100 psi 'Based on 9.06 cents per kilowatt hour. "Height with standard 11" grille. | | |
| | | |
| | | Product Notes Framed models come with extruded full-length handles and 11" louvered grille. Overlay models allow you to match surrounding cabinetry panels and hardware and come with an 11" panel grille, which will accept decorative inserts. The Classic Stainless Steel model comes with an 11" heavy-duty louvered grille, wrapped stainless | | |
| | | |
| | | |
| | | Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the locator section of our website, subzero.com. | | |
| | | |
| | | |
| | | This model is not available in Platinum or Carbon. | | |
| | | |
| | | Classic | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | |
