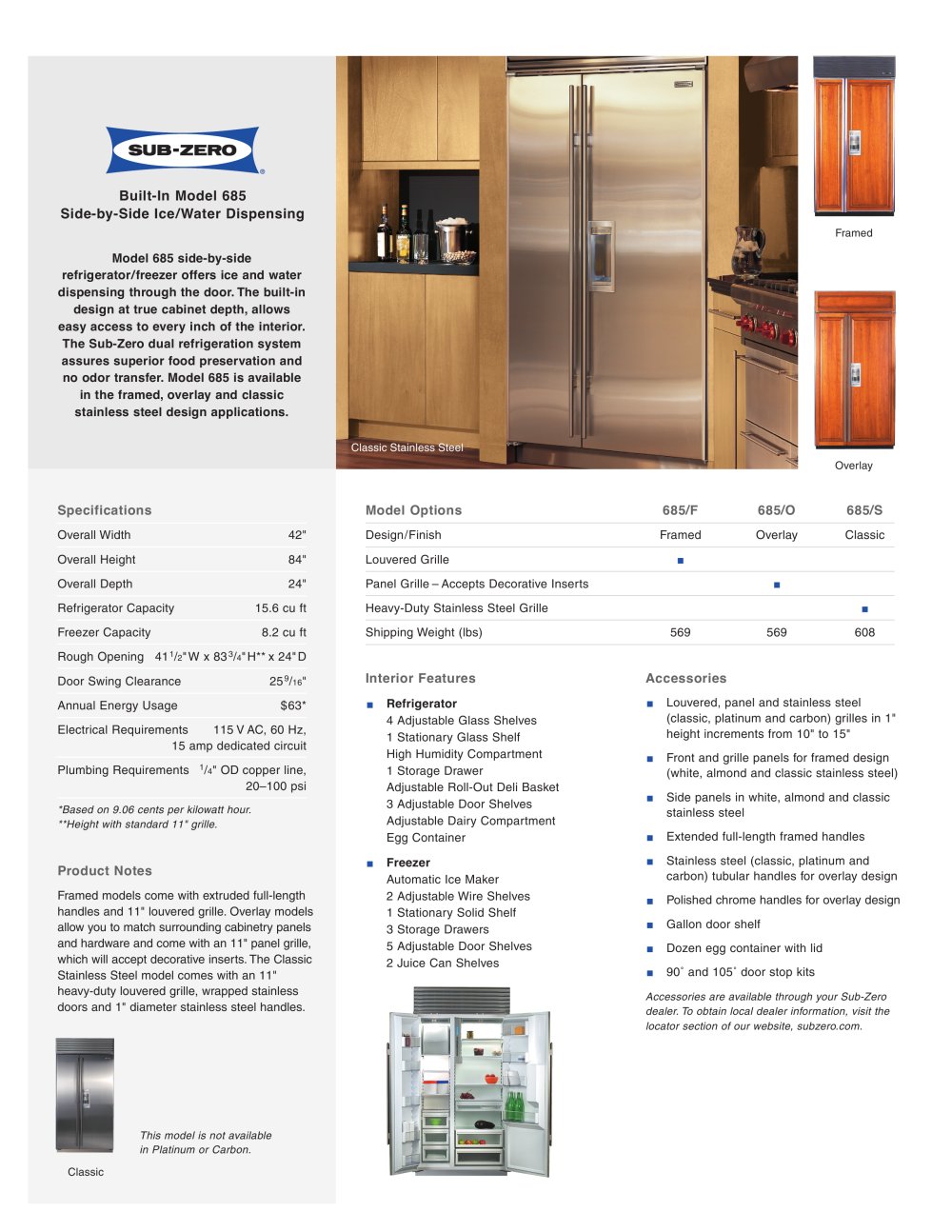

Built-In Model 685 Side-by-Side Ice/Water Dispensing
Model 685 side-by-side refrigerator manufacturer/modern freezer offers ice and water dispensing through the door. The built-in
design furniture at true contemporary cabinet depth, allows easy access to every inch of the interior. The Sub-Zero dual refrigeration system assures superior food preservation and no odor transfer. Model 685 is available in the framed, overlay and classic stainless steel design applications.
Overlay
Specifications
Model Options
685/F
685/O
685/S
Overall Width
42"
Design/Finish
Framed
Overlay
Classic
Overall Height
84"
Louvered Grille
Overall Depth
24"
Panel Grille-Accepts Decorative Inserts
Refrigerator Capacity
15.6 cu ft
Heavy-Duty Stainless Steel Grille
Freezer Capacity
8.2 cu ft
Shipping Weight (lbs)
569
569
608
Rough Opening 411/2"W x 833/4" H** x 24" D
Interior Features
■ Refrigerator
4 Adjustable Commercial glass shelves 1 Stationary Glass Shelf High Humidity Compartment
Home storage Drawer Adjustable Roll-Out Deli Basket 3 Adjustable Door Shelves furniture Adjustable Dairy Compartment Egg Container
■ Freezer
Automatic Ice Maker
2 Adjustable Wire Shelves
1 Stationary Solid Shelf
3 Storage Drawers
5 Adjustable Door Shelves
2 Juice Can Shelves
Accessories
■ Louvered, panel and stainless steel (classic, platinum and carbon) design grilles in 1" height increments from 10" to 15"
■ Front and grille design panels for framed design (white, almond and classic stainless steel)
■ Side panels in white, almond and classic stainless steel
■ Extended full-length framed handles
■ Stainless steel (classic, platinum and carbon) tubular handles for overlay design
■ Polished chrome handles for overlay design
■ Gallon door shelf
■ Dozen egg container with lid
■ 90" and 105" door stop kits
259/i6"
Door Swing Clearance
$63*
Annual Energy Usage
Electrical Requirements 115 V AC, 60 Hz, 15 amp dedicated circuit
Plumbing Requirements 1/4" OD copper line,
20-100 psi
'Based on 9.06 cents per kilowatt hour. "Height with standard 11" grille.
Product Notes
Framed models come with extruded full-length handles and 11" louvered grille. Overlay models
allow you to match surrounding cabinetry panels
and hardware and come with an 11" panel grille, which will accept decorative inserts. The Classic
Stainless Steel model comes with an 11" heavy-duty louvered grille, wrapped stainless
doors furniture and 1" diameter stainless steel handles.
Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the locator section of our website, subzero.com.
This model is not available in Platinum or Carbon.
Classic
