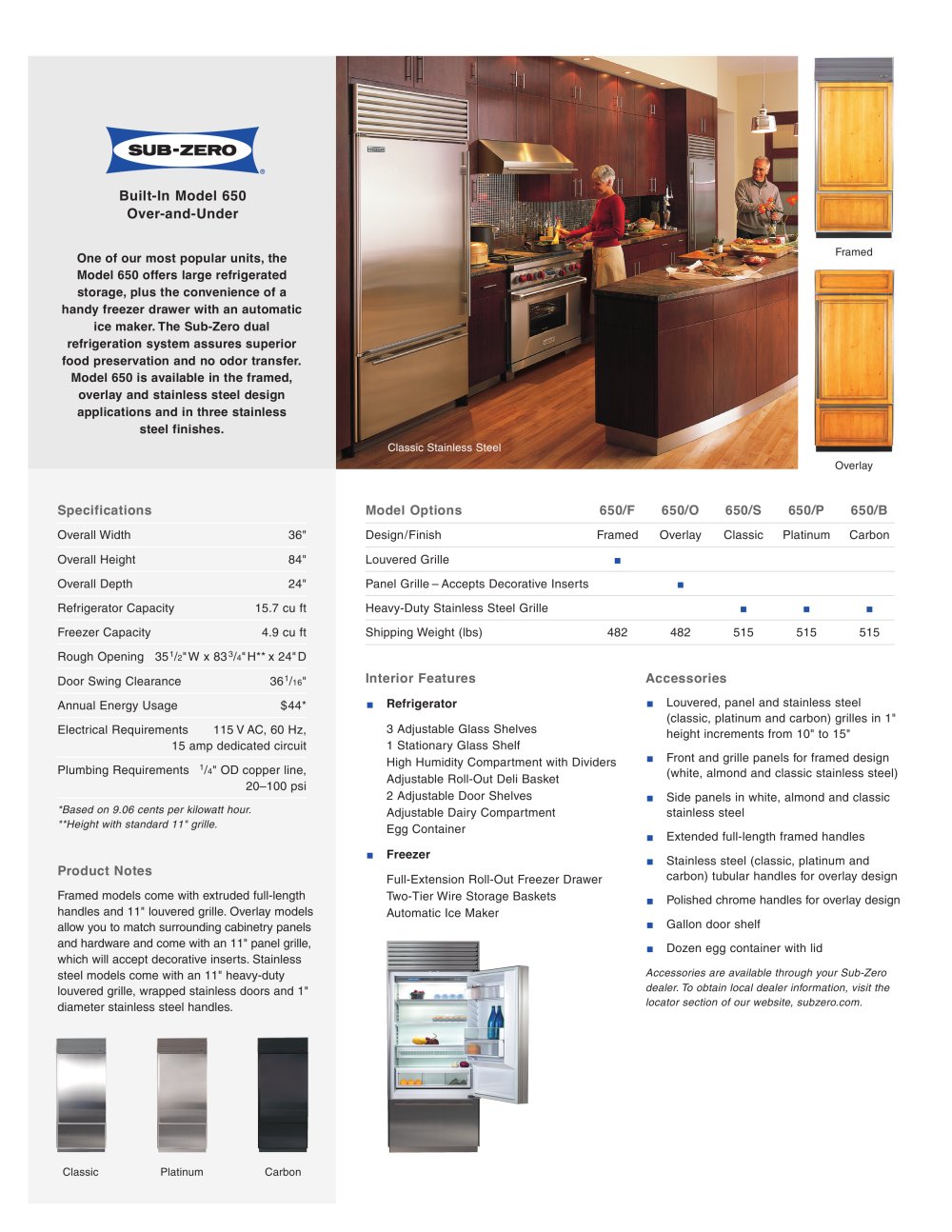

| | | Built-In Model 650 Over-and-Under One of our most popular units, the Model 650 offers large refrigerated home storage, plus the convenience of a handy home freezer drawer with an automatic ice maker. The Sub-Zero dual refrigeration system assures superior food preservation and no odor transfer. Model 650 is available in the framed, overlay and stainless steel design design applications and in three stainless steel finishes. | | |
| | | |
| | | Overlay | | |
| | | |
| | | | | | | | | | | | | Specifications | Model Options | 650/F | 650/O 650/S 650/P 650/B | | | | Overall Width | 36" | Design/Finish | Framed | Overlay Classic Platinum Carbon | | | | Overall Height | 84" | Louvered Grille | ■ | | | | | Overall Depth | 24" | Panel Grille-Accepts Decorative Inserts | | ■ | | | | | 15.7 cu ft | Heavy-Duty Stainless Steel Grille | | ■ ■ ■ | | | | Freezer Capacity | 4.9 cu ft | Shipping Weight (lbs) | 482 | 482 515 515 515 | | | | Rough Opening 351/2"W x 833/4" H** x 24" D Door Swing Clearance 361/ie" Annual Energy Usage $44* | Interior Features ■ Refrigerator | | Accessories ■ Louvered, panel and stainless steel | | | | | | | | | | | | |
| | | | |
| | | (classic, platinum and carbon) design grilles in 1" height increments from 10" to 15" Front and grille contemporary panels for framed design (white, almond and classic stainless steel) Side panels in white, almond and classic stainless steel Extended full-length framed handles Stainless steel (classic, platinum and carbon) tubular handles for overlay design Polished chrome handles for overlay design Gallon door shelf Dozen egg container with lid | |
| | | 1 Stationary Glass Shelf High Humidity Compartment with Dividers Adjustable Roll-Out Deli Basket 2 Adjustable Door Home shelves Adjustable Dairy Compartment Egg Container Freezer Full-Extension Roll-Out Freezer Drawer Two-Tier Wire Storage Baskets Automatic Ice Maker | | |
| | | Electrical Requirements 115 V AC, 60 Hz, 15 amp dedicated circuit Plumbing Requirements 1/4" OD copper line, 20-100 psi 'Based on 9.06 cents per kilowatt hour. "Height with standard 11" grille. | | |
| | | |
| | | Product Notes Framed models come with extruded full-length handles and 11" louvered grille. Overlay models allow you to match surrounding cabinetry panels and hardware and come with an 11" panel grille, which will accept decorative inserts. Stainless steel models come with an 11" heavy-duty louvered grille, wrapped stainless garden doors and 1" diameter stainless steel handles. | | |
| | | |
| | | |
| | | Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the locator section of our website, subzero.com. | | |
| | | |
| | | |
| | | Classic | | Platinum | | Carbon | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | |
