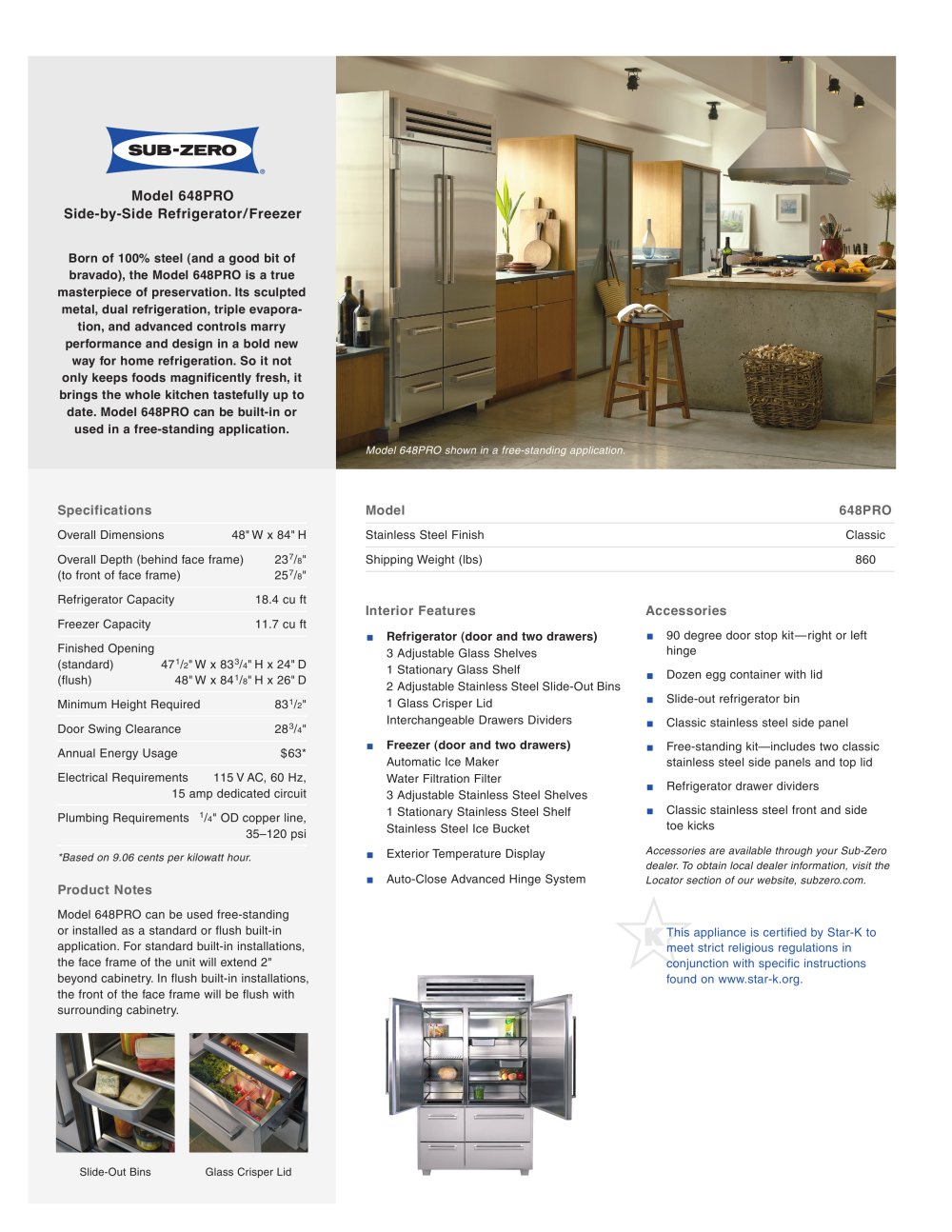

Model 648PRO 2 door refrigerator freezer/Modern freezer

Born of 100% steel (and a good bit of

bravado), the Model 648PRO is a true masterpiece of preservation. Its sculpted metal, dual refrigeration, triple evaporation, and advanced controls marry performance and garden design in a bold new

way for home refrigeration. So it not only keeps foods magnificently fresh, it brings the whole design kitchen tastefully up to

date. Model 648PRO can be built-in or used in a free-standing application.

Model 648PRO shown in a free-standing

Specifications

648PRO

Model


Stainless Steel Finish		Classic
Shipping Weight (lbs)		860
Interior Features	Accessories
■ Design refrigerator (design door and two drawers)	■	90 degree door stop kit—right or left
3 Adjustable Contemporary glass shelves		design hinge
1 Stationary Glass Shelf 2 Adjustable Stainless Steel Slide-Out Bins 1 Glass Crisper Lid	■ ■	Dozen egg container with lid Slide-out refrigerator bin
Interchangeable Drawers Garden dividers	■	Classic stainless steel side panel
■ Freezer (door and two drawers)		Free-standing kit—includes two classic
Automatic Ice Maker		stainless steel side modern panels and top lid
Water Filtration Filter 3 Adjustable Stainless Steel Garden shelves	■	Refrigerator drawer dividers
1 Stationary Stainless Steel Shelf	■	Classic stainless steel front and side
Stainless Steel Ice Bucket		toe kicks
■ Exterior Temperature Design display	Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the
■ Auto-Close Advanced Hinge System	Locator section of our website, subzero.com.

Overall Dimensions

48" W x 84" H

Overall Depth (behind face frame) 23⁷/s" (to front of face frame) 25⁷/s"

Refrigerator Capacity

18.4 cu ft

Freezer Capacity

11.7 cu ft

Finished Opening

(standard) 47¹/2"W x 83³/4" H x 24" D

(flush) 48"W x 84¹/8"H x 26" D

83¹/2"

Minimum Height Required

28³/4"

Door Home swing Clearance

$63*

Annual Energy Usage

Electrical Requirements 115 V AC, 60 Hz, 15 amp dedicated circuit

Plumbing Requirements ¹/4" OD copper line,

35-120 psi

'Based on 9.06 cents per kilowatt hour. Product Notes

Model 648PRO can be used free-standing or installed as a standard or flush built-in application. For standard built-in installations, the face frame of the unit will extend 2" beyond cabinetry. In flush built-in installations, the front of the face frame will be flush with surrounding cabinetry.

This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

Slide-Out Bins

Glass Crisper Lid
