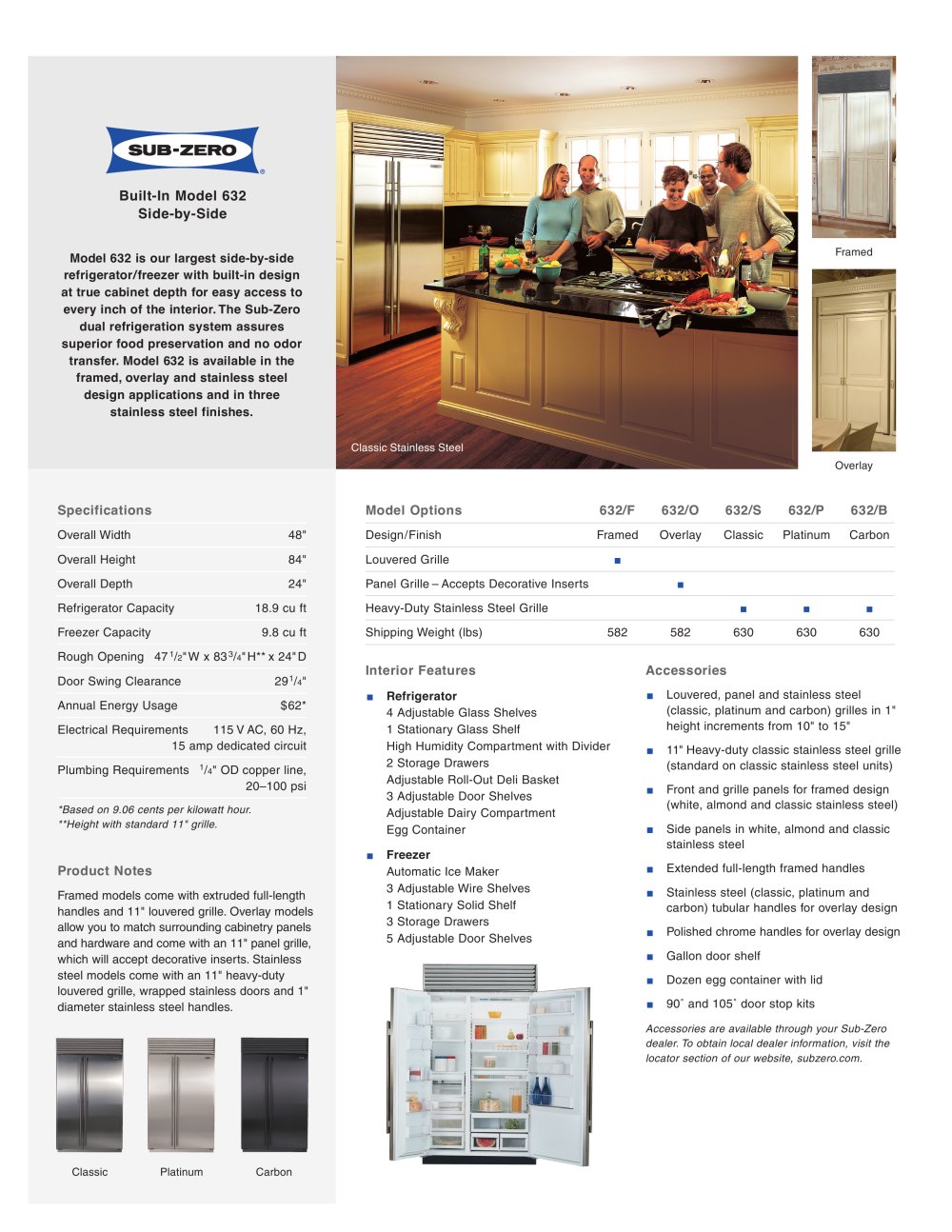

Catalogue 632 Side-by-Side

www.subzero.com

Page

/ 1

Contact the
Manufacturer

Where to buy
this product ?

SUB-ZERO - 100497, 17425, 18716, 17133, 30440, 17514, 21557, 19255

/ 1

See other catalogues for SUB-ZERO

Text version of the page

Overlay

632/B

Specifications

Model Options

632/F 632/O 632/S 632/P


Overall Width	48"	Modern design/Finish	Framed Overlay Classic Platinum Carbon
Overall Height	84"	Louvered Grille	■
Overall Depth	24"	Panel Grille-Accepts Decorative Inserts	■
Home refrigerator Capacity	18.9 cu ft	Heavy-Duty Stainless Steel Grille	■ ■ ■
Modern freezer Capacity	9.8 cu ft	Shipping Weight (lbs)	582 582 630 630 630
Rough Opening 47¹/2"W x 83³/4" H** x 24" D Door Swing Clearance 29¹/4" Annual Energy Usage $62*		Interior Features ■ Refrigerator 4 Adjustable Glass shelving	Accessories ■ Louvered, panel and stainless steel (classic, platinum and carbon) design grilles in 1"

height increments from 10" to 15"

■ 11" Heavy-duty classic stainless steel grille (standard on classic stainless steel units)

■ Front and grille garden panels for framed design (white, almond and classic stainless steel)

■ Side panels in white, almond and classic stainless steel

■ Extended full-length framed handles

■ Stainless steel (classic, platinum and carbon) tubular handles for overlay design

■ Polished chrome handles for overlay design

■ Gallon door shelf

■ Dozen egg container with lid

■ 90" and 105" door stop kits

Electrical Requirements 115 V AC, 60 Hz, 15 amp dedicated circuit

Plumbing Requirements ¹/4" OD copper line,

20-100 psi

'Based on 9.06 cents per kilowatt hour. "Height with standard 11" grille.

1 Stationary Glass Shelf

High Humidity Compartment with Design divider

2 Home storage Drawers Adjustable Roll-Out Deli Basket

3 Adjustable Door Rustic shelves Adjustable Dairy Compartment Egg Container

Freezer

Automatic Ice Maker

3 Adjustable Wire Shelves

1 Stationary Solid Shelf

3 Storage Drawers

5 Adjustable Door Shelves

Product Notes

Framed models come with extruded full-length

handles and 11" louvered grille. Overlay models

allow you to match surrounding cabinetry panels

and hardware and come with an 11" panel grille,

which will accept decorative inserts. Stainless steel models come with an 11" heavy-duty louvered grille, wrapped stainless design doors and 1" diameter stainless steel handles.

Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the locator section of our website, subzero.com.

Classic

Platinum

Carbon
