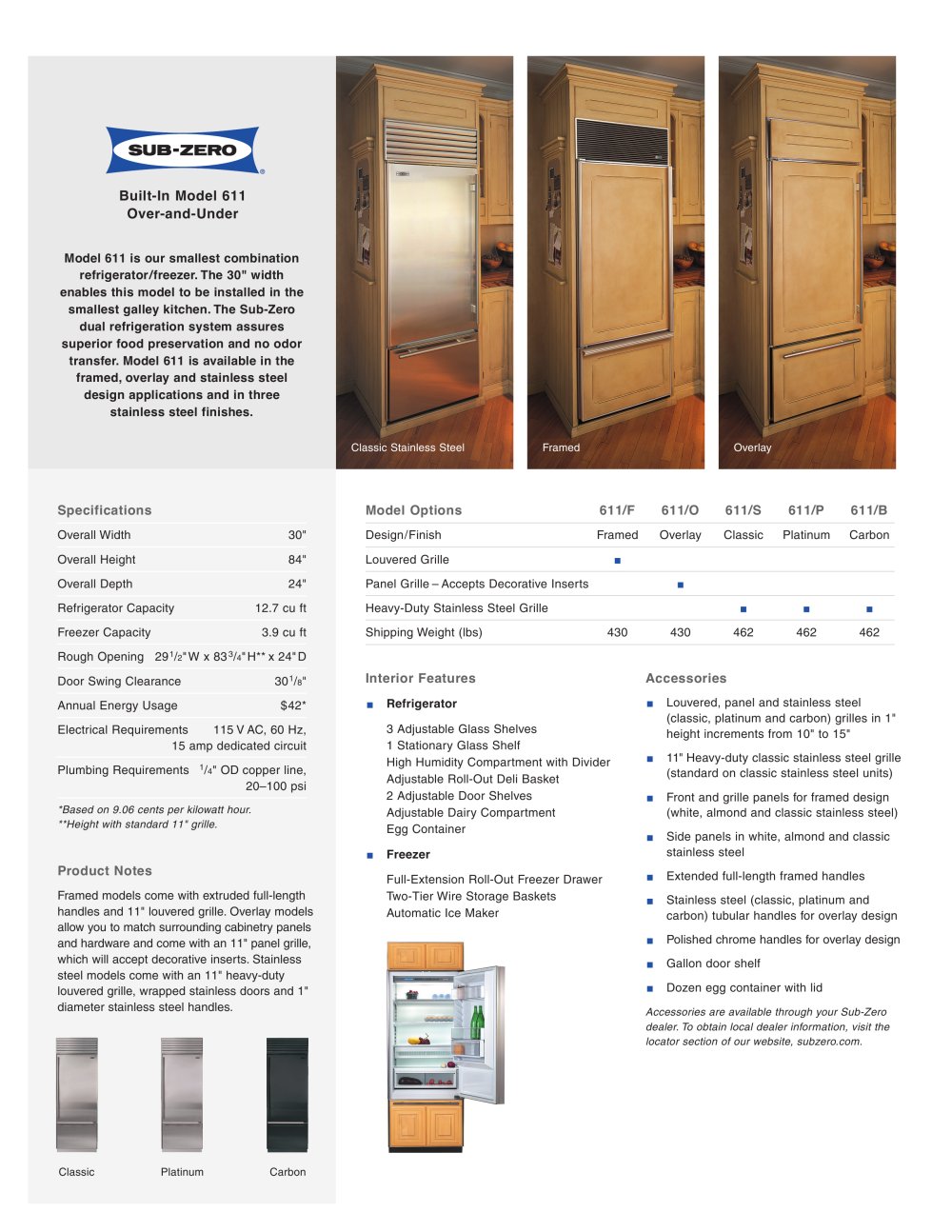

Built-In Model 611Over-and-Under

Model 611 is our smallest combinationrefrigerator/freezer.The 30" widthenables this model to be installed in thesmallest galley kitchen supplier.The Sub-Zerodual refrigeration system assuressuperior food preservation and no odortransfer.Model 611 is available in theframed,overlay and stainless steeldesign applications and in three stainless steel finishes.

Classic Stainless Steel Framed Overlay

Specifications Model Options611/F 611/O611/S611/P611/B

Overall Width30" Design/FinishFramedOverlayClassicPlatinumCarbon Overall Height84" Louvered Grille Overall Depth24" Panel Grille–Accepts Decorative Inserts Refrigerator suppliers Capacity12.7 cu ft Heavy-Duty Stainless Steel Grille Freezer Capacity3.9 cu ft Shipping Weight (lbs)430430462462462 Rough Opening29
1 /
2 "W x 83
3 /
4 "H**x 24"D Door Design swing Clearance30
1 /
8 "

Interior Features

Freezer

Accessories

Annual Energy Usage$42*Electrical Requirements115VAC, 60 Hz, Refrigerator Louvered, panel and stainless steel(classic, platinum and carbon) design grilles in 1" height increments from 10" to 15"11"Heavy-duty classic stainless steel grille(standard on classic stainless steel units)Front and grille design panels for framed design(white, almond and classic stainless steel)Side panels in white, almond and classic stainless steelExtended full-length framed handles Stainless steel (classic, platinum andcarbon) tubular handles for overlay designPolished chrome handles for overlay design Gallon door shelf furniture Dozen egg container with lid Full-Extension Roll-Out Freezer DrawerTwo-Tier Wire Storage Baskets Automatic Ice Maker 3 Adjustable Glass Shelves1 Stationary Glass shelf High Humidity Compartment with Design divider Adjustable Roll-Out Deli Basket 2 Adjustable Door Shelves Adjustable Dairy Compartment Egg Container 15 amp dedicated circuitPlumbing Requirements
1 /
4 " ODcopper line, 20–100 psi
*Based on 9.06 cents per kilowatt hour.**Height with standard 11" grille.

Product Notes

Framed models come with extruded full-lengthhandles and 11" louvered grille.Overlay models allow you to match surrounding cabinetry panelsand hardware and come with an 11" panel grille,which will accept decorative inserts.Stainless steel models come with an 11" heavy-duty louvered grille, wrapped stainless doors suppliers and 1" diameter stainless steel handles.
Accessories are available through your Sub-Zerodealer.To obtain local dealer information, visit thelocator section of our website, subzero.com. ClassicCarbonPlatinum
