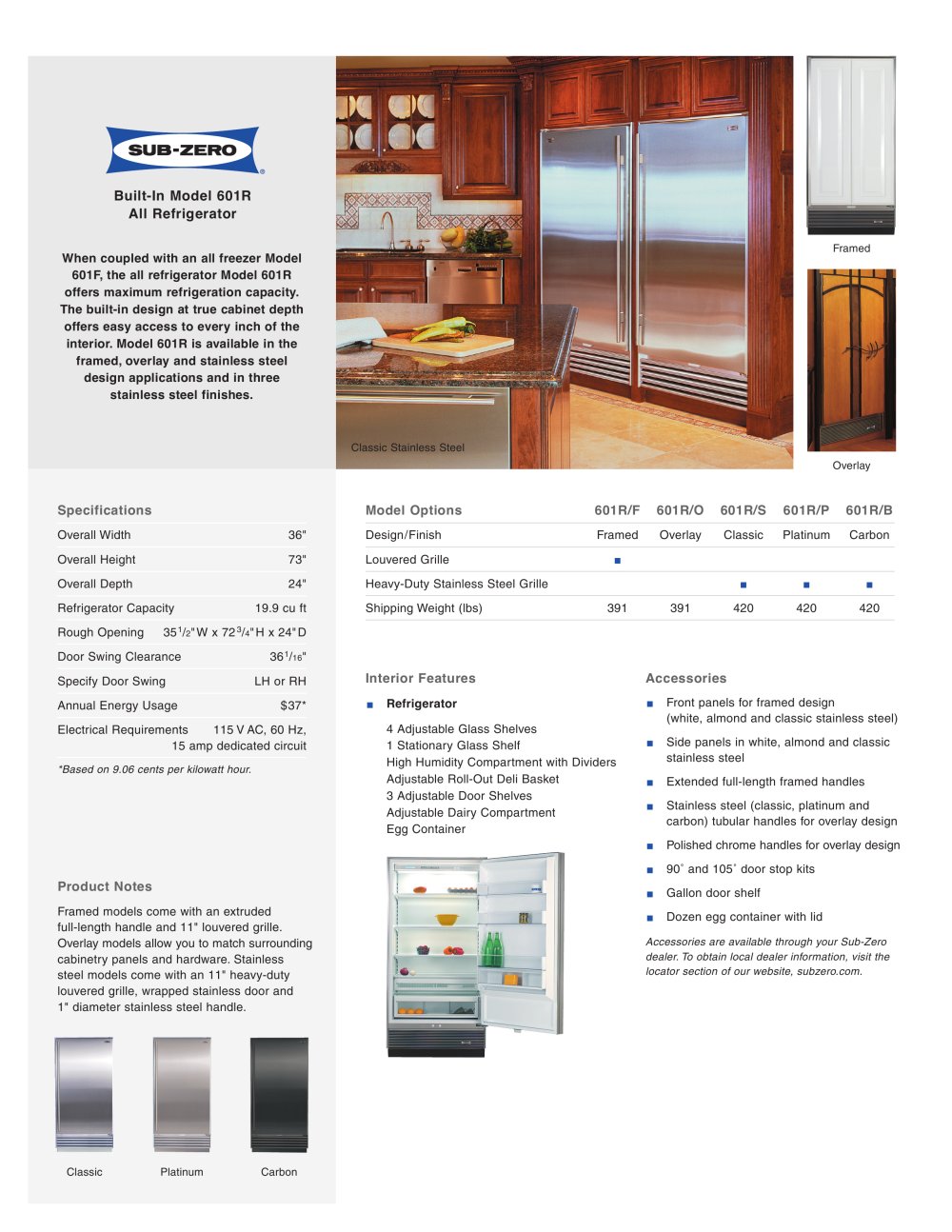

Built-In Model 601R All Home refrigerator
When coupled with an all home freezer Model
601F, the all refrigerator Model 601R offers maximum refrigeration capacity. The built-in garden design at true building cabinet depth offers easy access to every inch of the interior. Model 601R is available in the framed, overlay and stainless steel design applications and in three stainless steel finishes.
Overlay
Specifications
Model Options
601R/F 601R/O 601R/S 601R/P 601R/B
Overall Width
36"
Design/Finish
Framed
Overlay Classic Platinum Carbon
Overall Height
73"
Louvered Modern grille
■
Overall Depth
24"
Heavy-Duty Stainless Steel Grille
■ ■ ■
Refrigerator Capacity
19.9 cu ft
Shipping Weight (lbs)
391
391 420 420 420
Rough Opening 351/2"W x 723/4" H x 24" D
Design door Swing Clearance
361/i6"
Specify Door Swing
LH or RH
Interior Features
Accessories
Annual Energy Usage $37*
Electrical Requirements 115 V AC, 60 Hz, 15 amp dedicated circuit
*Based on 9.06 cents per kilowatt hour.
■ Refrigerator
1 Stationary Glass Shelf
High Humidity Compartment with Dividers
Adjustable Roll-Out Deli Basket
■ Front modern panels for framed design
(white, almond and classic stainless steel)
■ Side panels in white, almond and classic stainless steel
■ Extended full-length framed handles
3 Adjustable Door Modern shelves Adjustable Dairy Compartment Egg Container
Stainless steel (classic, platinum and carbon) tubular handles for overlay design
Polished chrome handles for overlay design
90" and 105" door stop kits
Gallon door shelf
Dozen egg container with lid
Product Notes
Framed models come with an extruded full-length handle and 11" louvered grille. Overlay models allow you to match surrounding cabinetry panels and hardware. Stainless steel models come with an 11" heavy-duty louvered grille, wrapped stainless door and 1" diameter stainless steel handle.
Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the locator section of our website, subzero.com.
Classic
Platinum
Carbon
