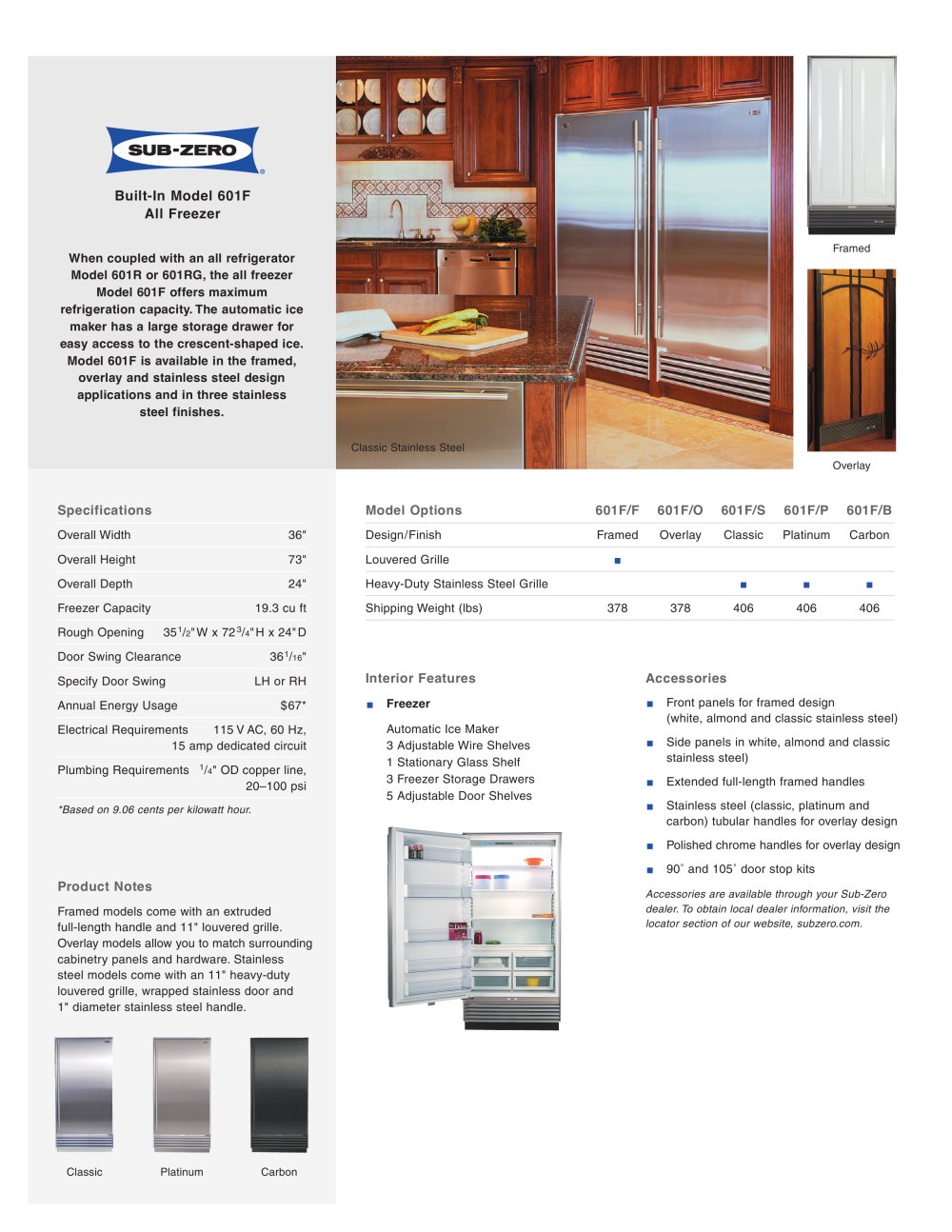

Built-In Model 601F All Home freezer
When coupled with an all modern refrigerator Model 601R or 601RG, the all freezer Model 601F offers maximum refrigeration capacity. The automatic ice
maker has a large home storage drawer for easy access to the crescent-shaped ice. Model 601F is available in the framed, overlay and stainless steel contemporary design applications and in three stainless steel finishes.
Overlay
Specifications
Model Options
601F/F
601F/O 601F/S 601F/P 601F/B
Overall Width
36"
Design/Finish
Framed
Overlay Classic Platinum Carbon
Overall Height
73"
Louvered Garden grille
■
Overall Depth
24"
Heavy-Duty Stainless Steel Grille
■ ■ ■
Freezer Capacity
19.3 cu ft
Shipping Weight (lbs)
378
378 406 406 406
Rough Opening 351/2"W x 723/4" H x 24" D
Door supplier Swing Clearance
361/i6"
Specify Door Swing
LH or RH
Interior Features
Accessories
Annual Energy Usage
$67*
■ Freezer
■ Front building panels for framed design
(white, almond and classic stainless steel)
Electrical Requirements 115 V AC, 60 Hz, 15 amp dedicated circuit
Plumbing Requirements 1/4" OD copper line,
20-100 psi
Automatic Ice Maker 3 Adjustable Wire Rustic shelves 1 Stationary Design glass shelf 3 Freezer Storage Drawers 5 Adjustable Door Shelves
Side panels in white, almond and classic stainless steel)
Extended full-length framed handles
Stainless steel (classic, platinum and carbon) tubular handles for overlay design
Polished chrome handles for overlay design
90" and 105" door stop kits
Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the locator section of our website, subzero.com.
'Based on 9.06 cents per kilowatt hour.
Product Notes
Framed models come with an extruded full-length handle and 11" louvered grille. Overlay models allow you to match surrounding cabinetry panels and hardware. Stainless steel models come with an 11" heavy-duty louvered grille, wrapped stainless door and 1" diameter stainless steel handle.
Classic
Platinum
Carbon
