L1.200
(3mm cable, 200VA max)
L4.200
(for 3mm cable)
L18 Safety Transformers L1.400
(4.5mm cable,400VA max)Lighting Cable.Interwoven tinned
copper + stainless steel cable, clear
PVC coated.
L4.400
(for 4.5mm cable)Nylon end stop, isolates the power
from the fixing plate (3.1). A range of dichroic and halogen
lamps manufacturers with a 36°flood, 20-50 watt
and available in a black finish ony.
Colour tinted lenses are available.

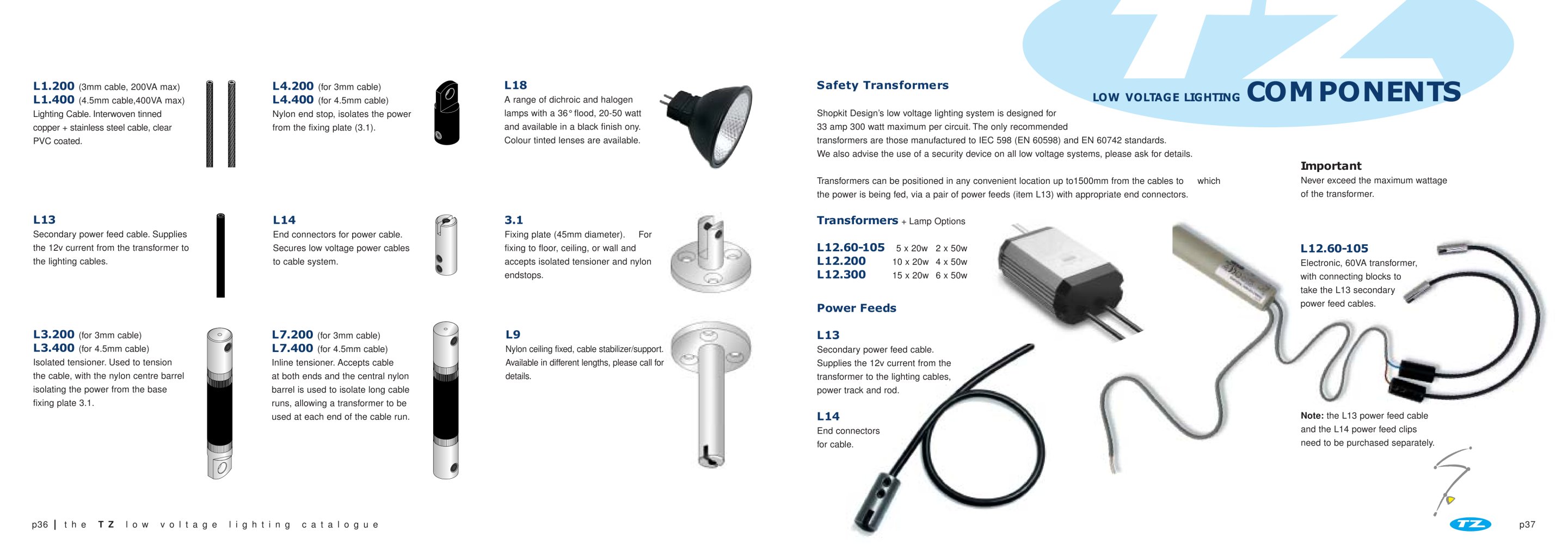

LOW VOLTAGE LIGHTING
Shopkit Design’s low voltage lighting system is designed for
33 amp 300 watt maximum per circuit.The only recommended
transformers are those manufactured to IEC 598 (EN 60598) and EN 60742 standards.
Wealso advise the use of a security device on all low voltage systems, please ask for details.Transformers can be positioned in any convenient location up to1500mm from the cables to whichthe power is being fed, via a pair of power feeds (item L13) with appropriate end connectors.
COMPONENTS
Important
Never exceed the maximum wattage
of the transformer.
L13 L14 3.1 Transformers
+Lamp Options Secondary power feed cable.Supplies
the 12v current from the transformer to
the lighting cables. End connectors for power cable.
Secures low voltage power cables
to cable system. Fixing plate (45mm diameter).For
fixing to floor,
ceiling manufacturer, or wall and
accepts isolated tensioner and nylon
endstops.
L12.60-105
5 x 20w2 x 50w
L12.60-105 L12.200
10 x 20w4 x 50w Electronic, 60VA transformer,
with connecting blocks to
take the L13 secondary
power feed cables.
L12.300
15 x 20w6 x 50w
Power FeedsL13 L3.200
(for 3mm cable)
L7.200
(for 3mm cable)
L9
Note: the L13 power feed cableand the L14 power feed clips
need to be purchased separately.
L3.400
(for 4.5mm cable)Isolated tensioner.Used to tension
the cable, with the nylon centre barrel
isolating the power from the base
fixing plate 3.1.
L7.400
(for 4.5mm cable)Inline tensioner.Accepts cable
at both ends and the central nylon
barrel is used to isolate long cable
runs, allowing a transformer to be
used at each end of the cable run. Nylon ceiling fixed, cable stabilizer/support.
Available in different lengths, please call for
details. Secondary power feed cable.Supplies the 12v current from the
transformer to the lighting cables,
power track and rod.
L14
End connectors
for cable. TZ low voltage lighting cataloguep36 p37the
