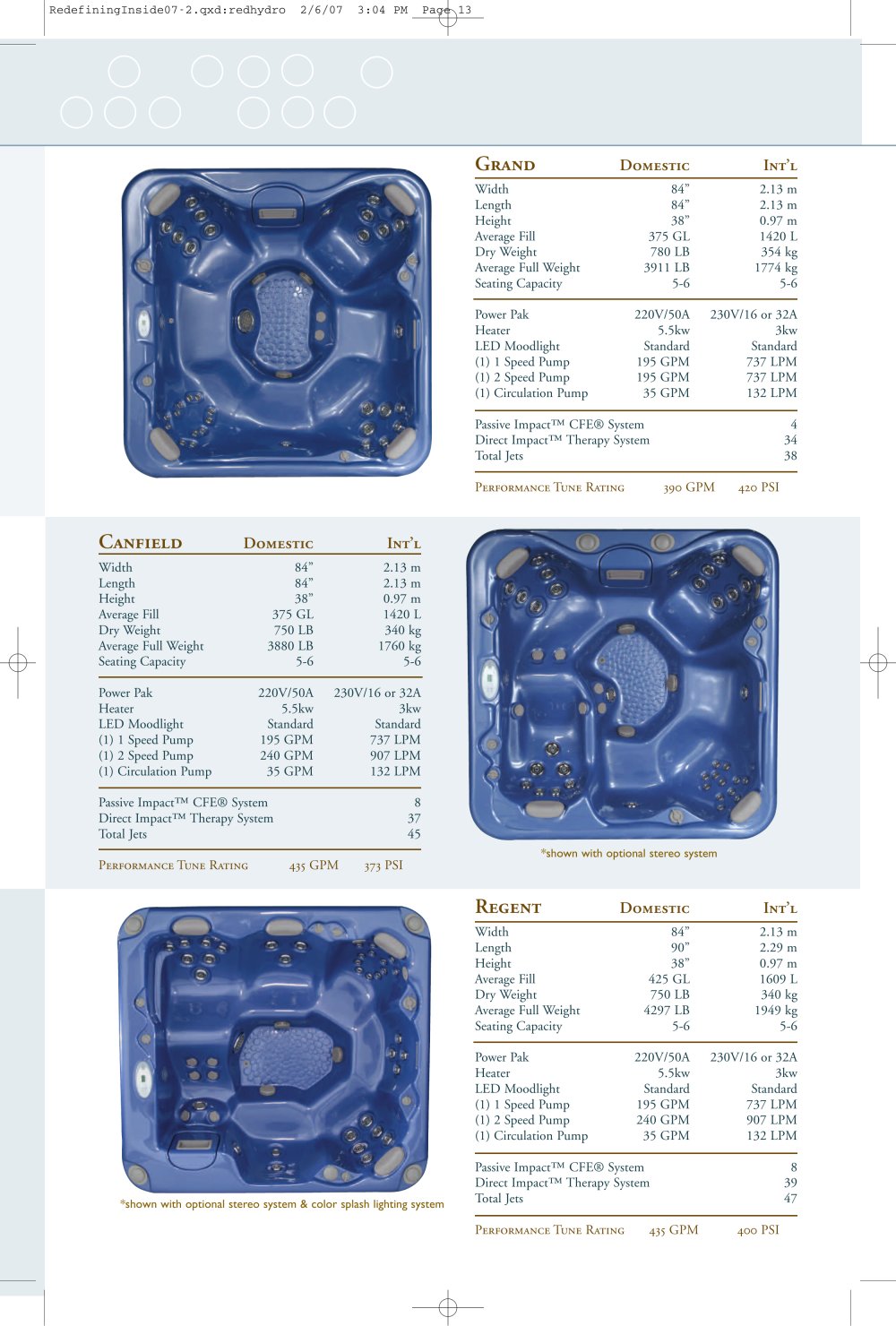

| | | RedefiningInside07-2.qxd:redhydro 2/6/07 3:04 PM Pagék 13 | | |
| | | |
| | | Grand | | |
| | | Int'l | | |
| | | Domestic | | |
| | | |
| | | |
| | | | | | | | | | | Width | 84" | 2.13 m | | | | Length | 84" | 2.13 m | | | | Height | 38" | 0.97 m | | | | Average Fill | 375 GL | 1420 L | | | | Dry Weight | 780 LB | 354 kg | | | | Average Full Weight | 3911 LB | 1774 kg | | | | Seating Capacity | 5-6 | 5-6 | | | | Power Pak | 220V/50A | 230V/16or 32A | | | | Heater | 5.5kw | 3kw | | | | LED Moodlight | Standard | Standard | | | | (1) 1 Speed Pump | 195 GPM | 737 LPM | | | | (1) 2 Speed Pump | 195 GPM | 737 LPM | | | | (1) Circulation Pump | 35 GPM | 132 LPM | | | | Passive Impact™ CFE® System | 4 | | | | Direct Impact™ Therapy System | 34 | | | | Total Jets | | 38 | | | | Performance Tune Rating | 390 GPM 420 PSI | | | | | | | | | | |
| | | | | | | | | | | Canfield | Domestic | Int'l | | | | Width | 84" | 2.13 m | | | | Length | 84" | 2.13 m | | | | Height | 38" | 0.97 m | | | | Average Fill | 375 GL | 1420 L | | | | Dry Weight | 750 LB | 340 kg | | | | Average Full Weight | 3880 LB | 1760 kg | | | | Seating Capacity | 5-6 | 5-6 | | | | Power Pak | 220V/50A | 230V/16or 32A | | | | Heater | 5.5kw | 3kw | | | | LED Moodlight | Standard | Standard | | | | (1) 1 Speed Pump | 195 GPM | 737 LPM | | | | (1) 2 Speed Pump | 240 GPM | 907 LPM | | | | (1) Circulation Pump | 35 GPM | 132 LPM | | | | Passive Impact™ CFE® System | 8 | | | | Direct Impact™ Therapy System | 37 | | | | Total Jets | | 45 | | | | Performance Tune Rating 435 GPM 373 PSI | | | | | | | | | | |
| | | |
| | | *shown with optional stereo system | | |
| | | |
| | | | | | | | | | | Regent | Domestic | Int'l | | | | Width | 84" | 2.13 m | | | | Length | 90" | 2.29 m | | | | Height | 38" | 0.97 m | | | | Average Fill | 425 GL | 1609L | | | | Dry Weight | 750 LB | 340 kg | | | | Average Full Weight | 4297 LB | 1949 kg | | | | Seating Capacity | 5-6 | 5-6 | | | | Power Pak | 220V/50A | 230V/16or 32A | | | | Heater | 5.5kw | 3kw | | | | LED Moodlight | Standard | Standard | | | | (1) 1 Speed Pump | 195 GPM | 737 LPM | | | | (1) 2 Speed Pump | 240 GPM | 907 LPM | | | | (1) Circulation Pump | 35 GPM | 132 LPM | | | | Passive Impact™ CFE® System | 8 | | | | Direct Impact™ Therapy System | 39 | | | | Total Jets | | 47 | | | | | | | | | | |
| | | |
| | | *shown with optional stereo system & color splash lighting system | | |
| | | |
| | | |
| | | Performance Tune Rating 435 GPM | | |
| | | 400 PSI | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | |
