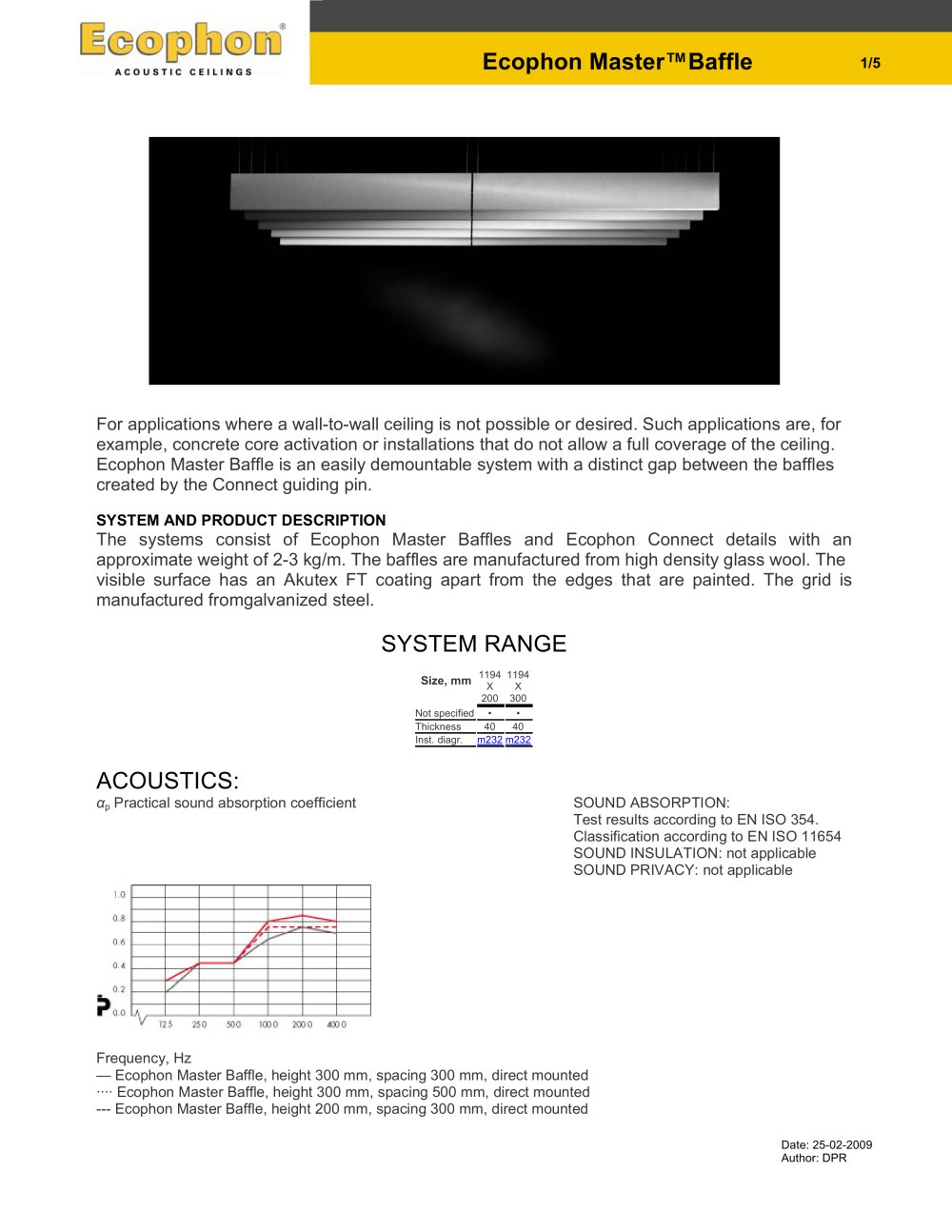

Technical Information Sheet Technical Information Sheet Ecophon Master™Baffle

1/3 2/3 1/5

For applications where a wall-to-wall ceiling manufacturers is not possible or desired. Such applications are, for example, concrete core activation or installations that do not allow a full coverage of the ceiling. Ecophon Master Baffle is an easily demountable system with a distinct gap between the baffles created by the Connect guiding pin.

SYSTEM AND PRODUCT DESCRIPTION

The systems consist of Ecophon Master Baffles and Ecophon Connect details with an approximate weight of 2-3 kg/m. The baffles are manufactured from high density glass wool. The visible surface has an Akutex FT coating apart from the edges that are painted. The grid is manufactured fromgalvanized steel.

SYSTEM RANGE

Size, mm

1194 1194 X X 200 300 Not specified• • Thickness 40 40 Inst. diagr. m232 m232

ACOUSTICS:

Ä®

p

Practical sound absorption coefficient SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654 SOUND GARDEN INSULATION: not applicable SOUND PRIVACY: not applicable Frequency, Hz — Ecophon Master Baffle, height 300 mm, spacing 300 mm, direct mounted ···· Ecophon Master Baffle, height 300 mm, spacing 500 mm, direct mounted --- Ecophon Master Baffle, height 200 mm, spacing 300 mm, direct mounted

Date: 25-02-2009 Author: DPR
