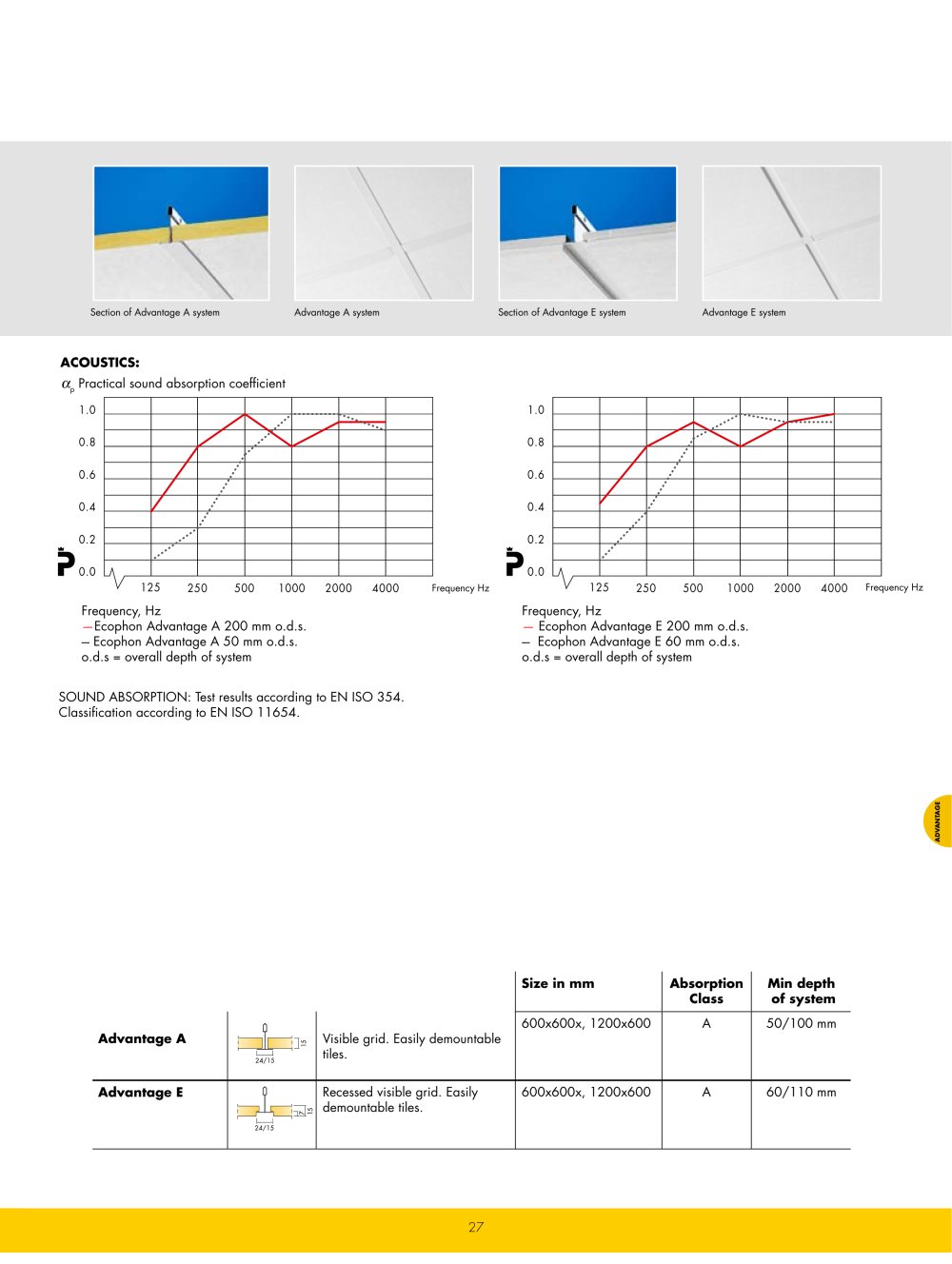

Section of Advantage A system
Advantage A system
Section of Advantage E systerr
Advantage E system
ACOUSTICS:
0Cp Practical sound absorption coefficient
125 250 500 1000 2000 4000 Frequency Hz
1.0
0.8 0.6 0.4 0.2
I
0.0
V
125 250 500 1000 2000 4000 Frequency Hz
Frequency, Hz
— Ecophon Advantage A 200 mm o.d.s.
— Ecophon Advantage A 50 mm o.d.s. o.d.s = overall depth of system
Frequency, Hz
Ecophon Advantage E 200 mm o.d.s. — Ecophon Advantage E 60 mm o.d.s. o.d.s = overall depth of system
SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 1 1654.
Size in mm
Absorption Class
Min depth of system
Advantage A
Visible grid. Easily demountable
ÓOOxóOOx, 1200x600
A
50/100 mm
24/15
tiles manufacturers.
Advantage E
Recessed visible grid. Easily demountable tiles.
ÓOOxóOOx, 1200x600
A
60/1 10 mm
24/15
27
