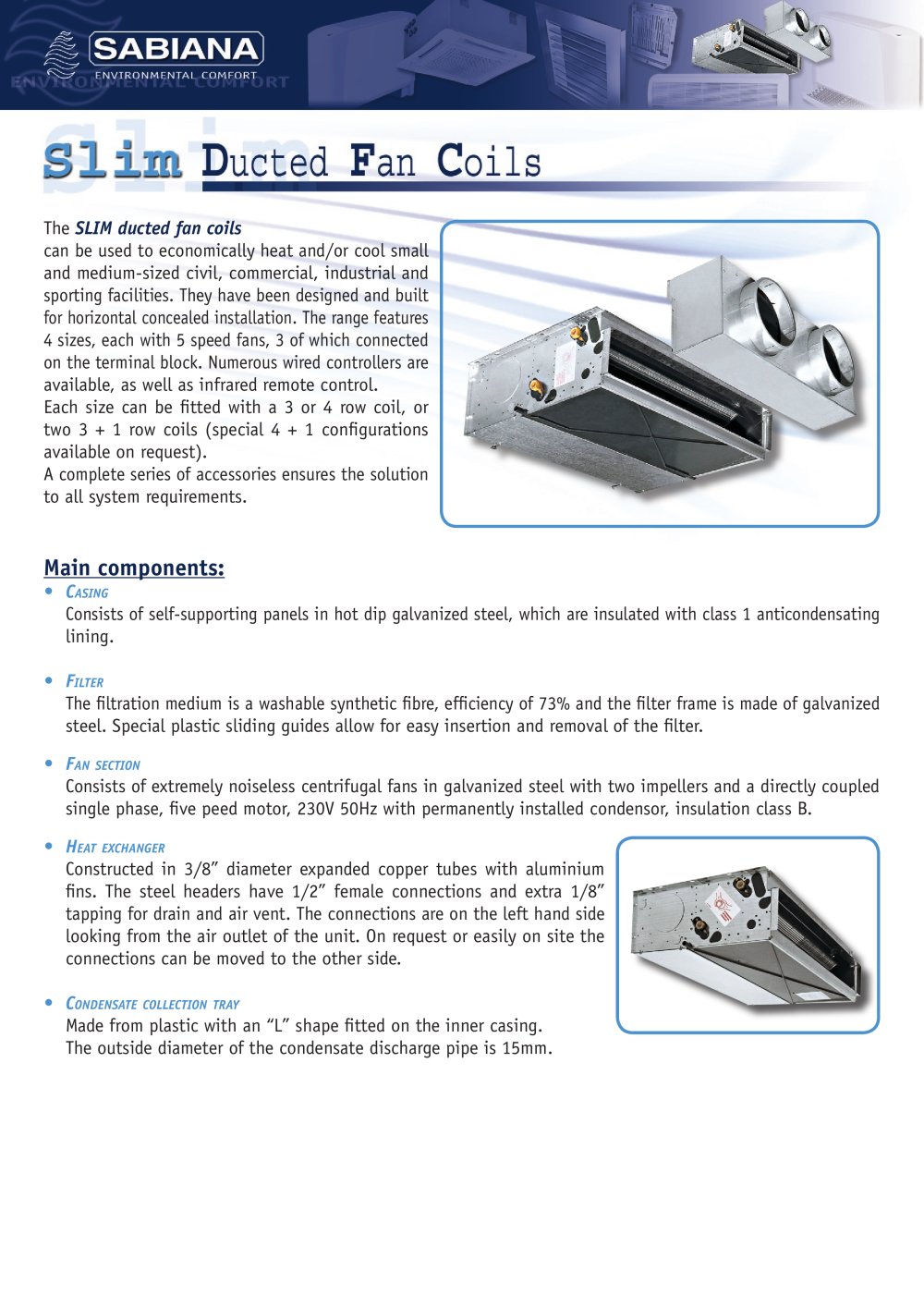

SLIM - 4 Pages
The SLIM ducted fan coils can be used to economically heat and/or cool small and medium-sized civil, commercial, industrial and sporting facilities. They have been designed and built for horizontal concealed installation. The range features 4 sizes, each with 5 speed fans, 3 of which connected on the terminal block. Numerous wired controllers are available, as well as infrared remote control.Each size can be fitted with a 3 or 4 row coil, or
two 3 + 1 row coils (special 4 + 1 configurations
available on request). A complete series of accessories ensures the solution to all system requirements. >
ASING Consists of self-supporting panels in hot dip galvanized steel, which are insulated with class 1 anticondensating lining. Օ F >
ILTER The filtration medium is a washable synthetic fibre, efficiency of 73% and the filter frame is made of galvanized steel. Special plastic sliding guides allow for easy insertion and removal of the filter. F >
AN SECTION Consists of extremely noiseless centrifugal fans in galvanized steel with two impellers and a directly coupled single phase, five peed motor, 230V 50Hz with permanently installed condensor, insulation class B. Օ H >
EAT EXCHANGER Constructed in 3/8 diameter expanded copper tubes with aluminium
fins. The steel headers have 1/2Ԕ female connections and extra 1/8 tapping for drain and air vent. The connections are on the left hand side looking from the air outlet of the unit. On request or easily on site the
connections can be moved to the other side. ԕ C >
ONDENSATE COLLECTION TRAY Made from plastic with an LӔ shape fitted on the inner casing.
The outside diameter of the condensate discharge pipe is 15mm. >
P. 2Dimensions, weight and water contents WEIGHT 1 ROWADDITIONAL BATTERY A B C D E F GMODELWATER CONTENT >3 rowbattery4 rowbattery3 rowbattery4 rowbattery1.41.72.02.184.108.40.206.9...
P. 3M iSABIANA 1^ ^-■ *^rr' ENVIRONMENTAL COMFORT Certifications 2 pipe units The following standard rating conditions are used:...
P. 4Main controls MO - 3V ON-OFF switchand 3 speed switchwithout thermostatic control. TMO - T ON-OFF switch, 3 speed switch andsummer / winter switch.Electronic...
