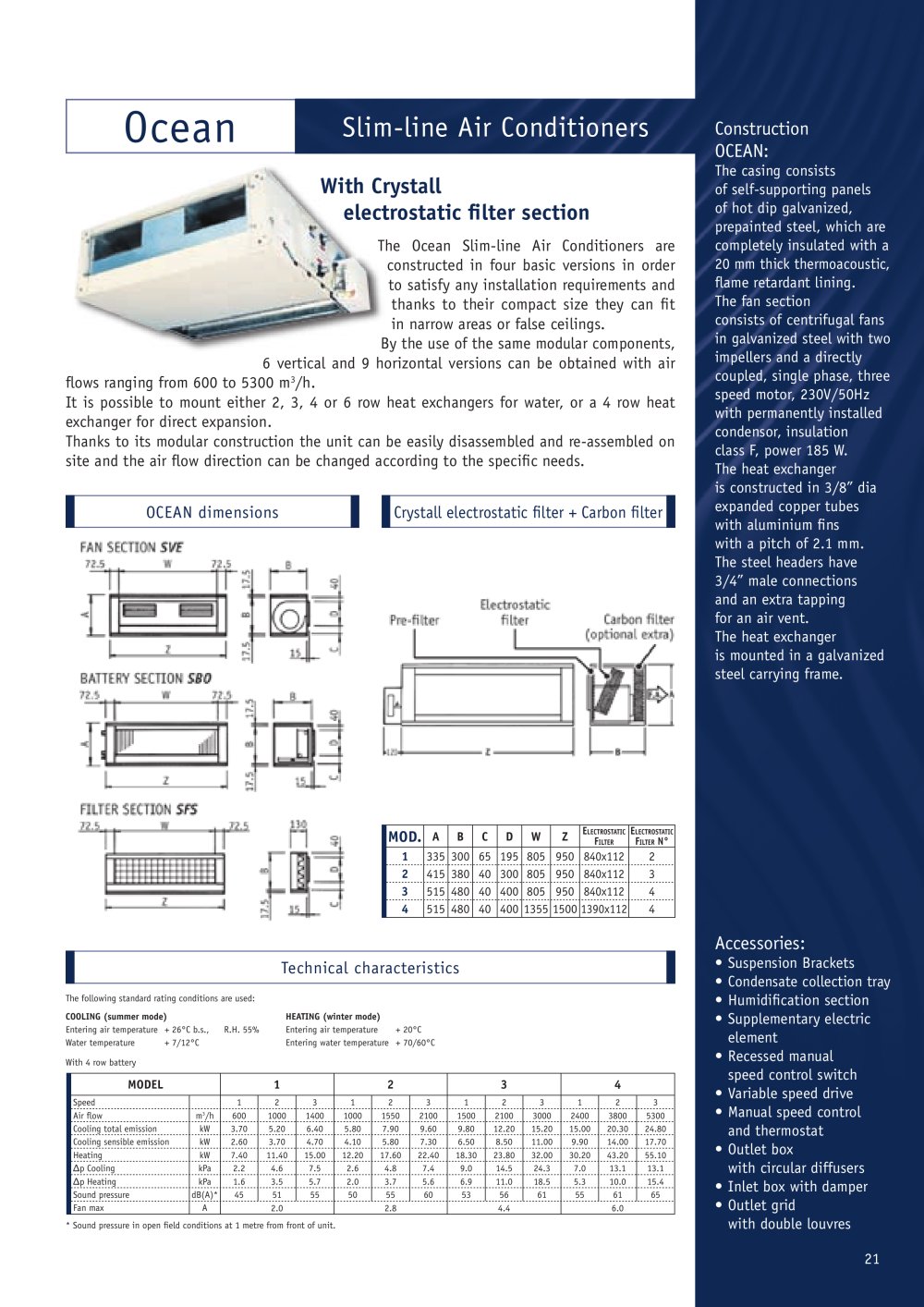

Construction OCEAN:
The casing consists
With Crystall
of self-supporting panels
electrostatic filter section
of hot dip galvanized, prepainted steel, which are
The Ocean Slim-line Air Conditioners are
completely insulated with a
constructed in four basic versions in order
20 mm thick thermoacoustic,
to satisfy any installation requirements and
flame retardant lining.
thanks to their compact size they can fit
The fan section
By the use of the same modular components,
in galvanized steel with two
6 vertical and 9 horizontal versions can be obtained with air
impellers and a directly
flows ranging from 600 to 5300 m
3
/h.
coupled, single phase, three
It is possible to mount either 2, 3, 4 or 6 row heat exchangers for water, or a 4 row heat
speed motor, 230V/50Hz
exchanger for direct expansion.
with permanently installed
Thanks to its modular construction the unit can be easily disassembled and re-assembled on
site and the air flow direction can be changed according to the specific needs.
class F, power 185 W. The heat exchanger is constructed in 3/8” dia
OCEAN dimensions Crystall electrostatic filter + Carbon filter
expanded copper tubes with aluminium fins with a pitch of 2.1 mm. The steel headers have 3/4” male connections and an extra tapping for an air vent. The heat exchanger is mounted in a galvanized steel carrying frame. MOD. A B C D W Z
E
LECTROSTATIC E
LECTROSTATIC F
ILTER F
ILTER N°
1 335 300 65 195 805 950 840x112 2 2 415 380 40 300 805 950 840x112 3 3 515 480 40 400 805 950 840x112 4 4 515 480 40 400 1355 1500 1390x112 4
Accessories:
Technical characteristics
• Suspension Brackets• Condensate collection tray
The following standard rating conditions are used:
• Humidification section• Supplementary electric element• Recessed manual speed control switch• Variable speed drive• Manual speed control and thermostat• Outlet box with circular diffusers• Inlet box with damper• Outlet grid with double louvres
COOLING (summer mode) HEATING (winter mode) Entering air temperature + 26°C b.s., R.H. 55%Water temperature + 7/12°C Entering air temperature + 20°CEntering water temperature + 70/60°C With 4 row battery
MODEL 1 2 3 4
Speed 1 2 3 1 2 3 1 2 3 1 2 3 Air flow m
3 /h 600 1000 1400 1000 1550 2100 1500 2100 3000 2400 3800 5300 Cooling total emission kW 3.70 5.20 6.40 5.80 7.90 9.60 9.80 12.20 15.20 15.00 20.30 24.80 Cooling sensible emission kW 2.60 3.70 4.70 4.10 5.80 7.30 6.50 8.50 11.00 9.90 14.00 17.70 Heating kW 7.40 11.40 15.00 12.20 17.60 22.40 18.30 23.80 32.00 30.20 43.20 55.10 ∆ p Cooling kPa 2.2 4.6 7.5 2.6 4.8 7.4 9.0 14.5 24.3 7.0 13.1 13.1 ∆ p Heating kPa 1.6 3.5 5.7 2.0 3.7 5.6 6.9 11.0 18.5 5.3 10.0 15.4 Sound pressure dB(A)* 45 51 55 50 55 60 53 56 61 55 61 65 Fan max A 2.0 2.8 4.4 6.0 * Sound pressure in open field conditions at 1 metre from front of unit.
21
