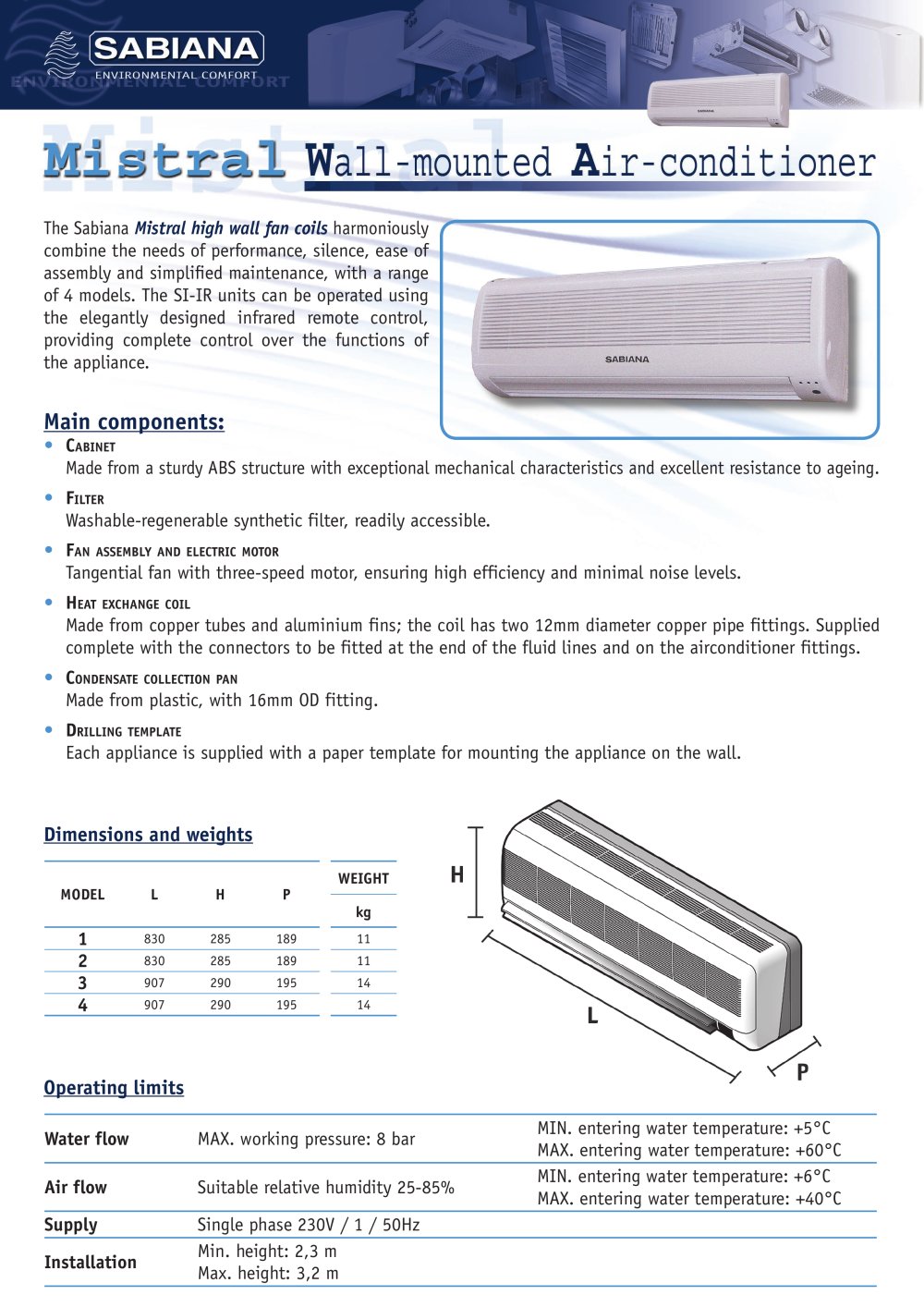

The Sabiana Mistral high wall design fan coils harmoniously combine the needs of performance, silence, ease of assembly and simplified maintenance, with a rangeof 4 models. The SI-IR units can be operated using the elegantly designed infrared remote control, providing complete control over the functions of the appliance.

Main components:

• C
ABINET Made from a sturdy ABS structure with exceptional mechanical characteristics and excellent resistance to ageing. • F
ILTER Washable-regenerable synthetic filter, readily accessible. • F
AN ASSEMBLY AND ELECTRIC MOTOR Tangential fan with three-speed motor, ensuring high efficiency and minimal noise levels. • H
EAT EXCHANGE COIL Made from copper tubes and aluminium fins; the coil has two 12mm diameter copper pipe fittings. Supplied complete with the connectors to be fitted at the end of the fluid lines and on the airconditioner fittings. • C
ONDENSATE COLLECTION PAN Made from plastic, with 16mm OD fitting. • D
RILLING TEMPLATE Each appliance is supplied with a paper template for mounting the appliance on the wall.

Dimensions and weights

WEIGHT L H PMODEL kg 12 34
830830907907 285 285290290 189 189195195 11111414 MAX. working pressure: 8 barSuitable relative humidity 25-85%MIN. entering water temperature: +5°CMAX. entering water temperature: +60°CMIN. entering water temperature: +6°CMAX. entering water temperature: +40°CSingle phase 230V / 1 / 50Hz Min. height: 2,3 mMax. height: 3,2 m

Operating limits

Water flowAir flowSupply Installation
