ELEGANT - 4 Pages

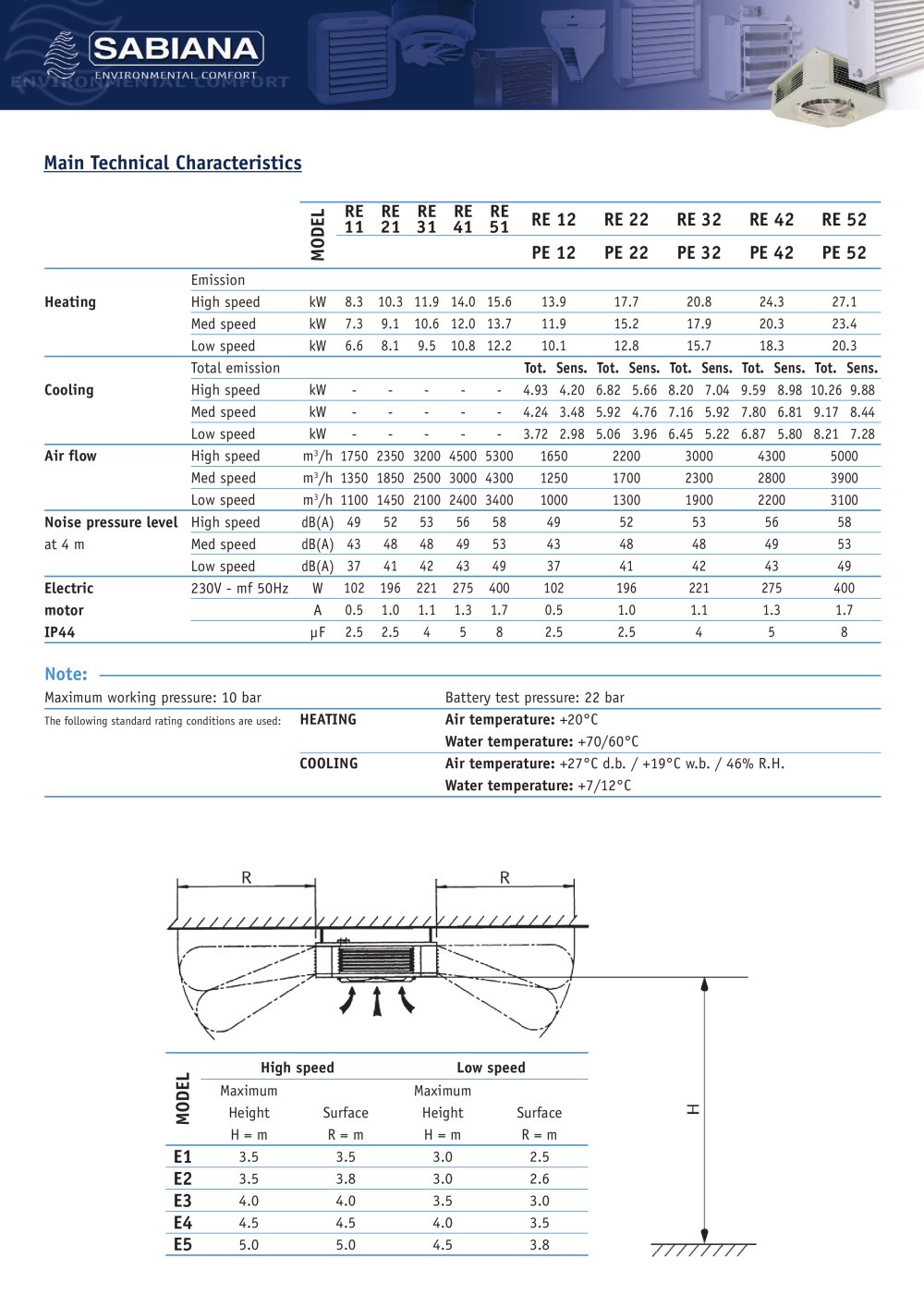

Main Technical Characteristics
_i LU o RE 11 RE 21 RE 31 RE 41 RE 51 RE 12 RE 22 RE 32 RE 42 RE 52 O PE 12 PE 22 PE 32 PE 42 PE 52 Emission Heating High speed kW 8.3 10.3 11.9 14.0 15.6 13.9 17.7 20.8 24.3 27.1 Med speed kW 7.3 9.1 10.6 12.0 13.7 11.9 15.2 17.9 20.3 23.4 Low speed kW 6.6 8.1 9.5 10.8 12.2 10.1 12.8 15.7 18.3 20.3 Total emission Tot. Sens. Tot. Sens. Tot. Sens. Tot. Sens. Tot. Sens. Cooling High speed kW - - - - - 4.93 4.20 6.82 5.66 8.20 7.04 9.59 8.98 10.26 9.88 Med speed kW - - - - - 4.24 3.48 5.92 4.76 7.16 5.92 7.80 6.81 9.17 8.44 Low speed kW - - - - - 3.72 2.98 5.06 3.96 6.45 5.22 6.87 5.80 8.21 7.28 Air flow High speed m3/h 1750 2350 3200 4500 5300 1650 2200 3000 4300 5000 Med speed m3/h 1350 1850 2500 3000 4300 1250 1700 2300 2800 3900 Low speed m3/h 1100 1450 2100 2400 3400 1000 1300 1900 2200 3100 Noise pressure level High speed dB(A) 49 52 53 56 58 49 52 53 56 58 at 4 m Med speed dB(A) 43 48 48 49 53 43 48 48 49 53 Low speed dB(A) 37 41 42 43 49 37 41 42 43 49 Electric 230V - mf 50Hz W 102 196 221 275 400 102 196 221 275 400 motor A 0.5 1.0 1.1 1.3 1.7 0.5 1.0 1.1 1.3 1.7 IP44 MF 2.5 2.5 4 5 8 2.5 2.5 4 5 8
Note: - Maximum working pressure: 10 bar Battery test pressure: 22 bar The following standard rating conditions are used: HEATING Air temperature: +20°C Water temperature: +70/60°C COOLING Air temperature: +27°C d.b. / +19°C w.b. / 46% R.H. Water temperature: +7/12°C
High speed		Low speed
MODE Maximum Height H = m Surface R = m Maximum Height H = m Surface R = m E1 3.5 3.5 3.0 2.5 E2 3.5 3.8 3.0 2.6 E3 4.0 4.0 3.5 3.0 E4 4.5 4.5 4.0 3.5 E5 5.0 5.0 4.5 3.8
						77777777

1. P. 1

   The Elegant Sabiana air conditioners allow, at very economical cost, to heat and cool small and medium size environments, like shops, show rooms, workshops,...

2. P. 2

3. P. 3

   m Dimensions, weight and water content 1 ROW BATTERY (only heating) MODEL RE 11 RE 21 RE 31 RE 41 RE 51 IT A ...

4. P. 4

   Controls MO - 3V MO - 3V controlwith ON-OFF switch and 3 speed switchwithout thermostatic control. > TMO - T TMO - T control with ON-OFF switch,3...
