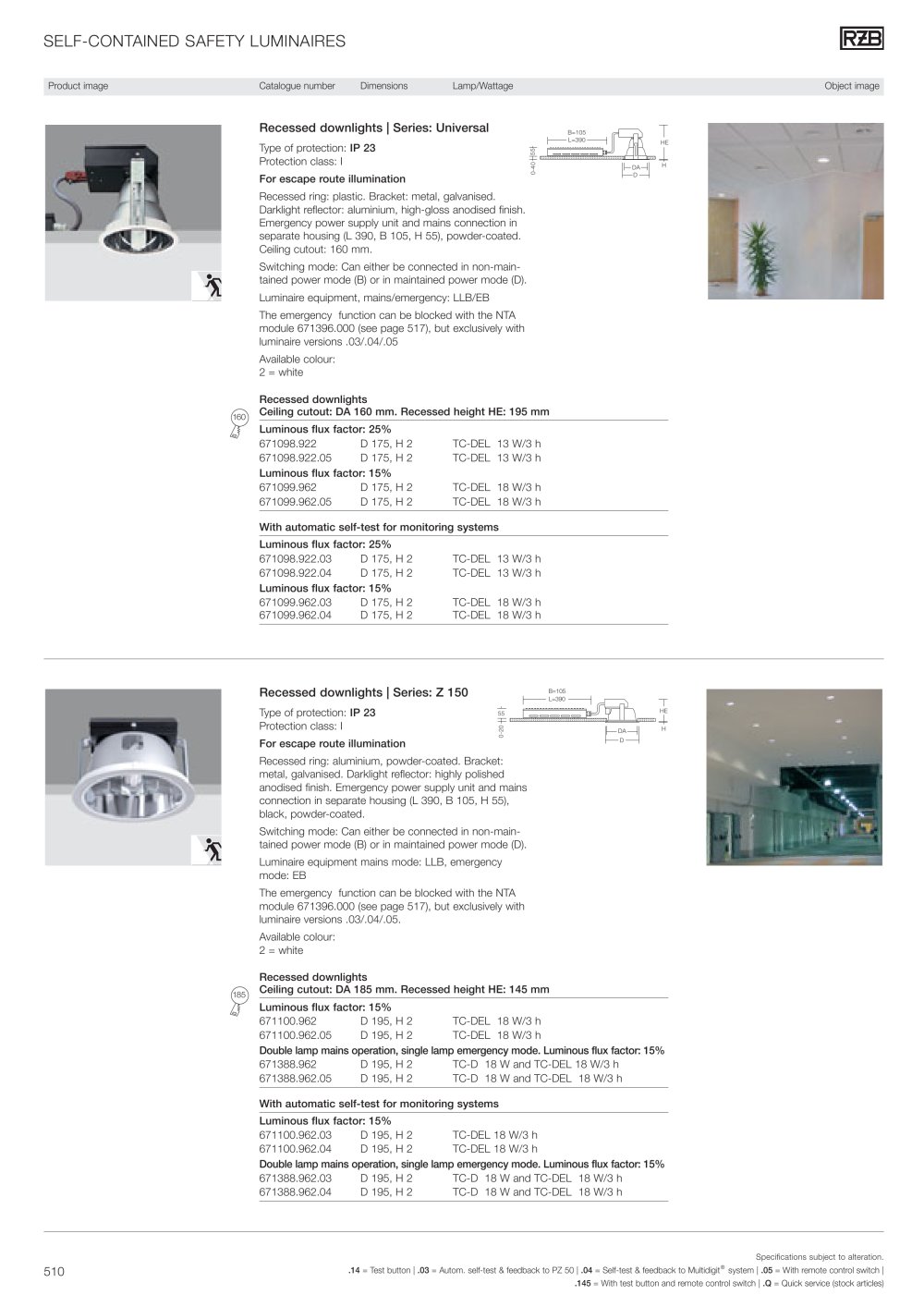

SELF-CONTAINED SAFETY LUMINAIRES RZB Product image Catalogue number Dimensions Lamp/Wattage Object image Recessed downlights | Series: Universal Type of protection: IP 23 t Protection class: I ~, For escape route illumination Recessed ring: plastic. Bracket: metal, galvanised. Darklight reflector: aluminium, high-gloss anodised finish. Emergency power supply unit and mains connection in separate housing (L 390, B 105, H 55), powder-coated. Ceiling cutout: 160 mm. Switching mode: Can either be connected in non-main-tained power mode (B) or in maintained power mode (D). Luminaire equipment, mains/emergency: LLB/EB The emergency function can be blocked with the NTA module 671396.000 (see page 517), but exclusively with luminaire versions .03/.04/.05 Available colour: 2 = white B=10 HE D- Recessed downlights Ceiling cutout: DA 160 mm. Recessed height HE: 195 mm Luminous flux factor: 25% 671098.922 D 175, H 2 TC-DEL 13 W/3 h 671098.922.05 D 175, H 2 TC-DEL 13 W/3 h Luminous flux factor: 15% 671099.962 D 175, H 2 TC-DEL 18 W/3 h 671099.962.05 D 175, H 2 TC-DEL 18 W/3 h With automatic self-test for monitoring systems Luminous flux factor: 25% 671098.922.03 D 175, H 2 TC-DEL 13 W/3 h 671098.922.04 D 175, H 2 TC-DEL 13 W/3 h Luminous flux factor: 15% 671099.962.03 D 175, H 2 TC-DEL 18 W/3 h 671099.962.04 D 175, H 2 TC-DEL 18 W/3 h Recessed downlights | Series: Z 150 ^ _________ 1 (rTZnL Type of protection: IP 23 55 P Protection class: I ï ■_DA_ For escape route illumination ' D Recessed ring: aluminium, powder-coated. Bracket: metal, galvanised. Darklight reflector: highly polished anodised finish. Emergency power supply unit and mains connection in separate housing (L 390, B 105, H 55), black, powder-coated. Switching mode: Can either be connected in non-main-tained power mode (B) or in maintained power mode (D). Luminaire equipment mains mode: LLB, emergency mode: EB The emergency function can be blocked with the NTA module 671396.000 (see page 517), but exclusively with luminaire versions .03/.04/.05. Available colour: 2 = white HE Recessed downlights /185\ Ceiling cutout: DA 185 mm. Recessed height HE: 145 mm lj Luminous flux factor: 15% ° 671100.962 D 195, H 2 TC-DEL 18 W/3 h 671100.962.05 D 195, H 2 TC-DEL 18 W/3 h Double lamp mains operation, single lamp emergency mode. Luminous flux factor: 15% 671388.962 D 195, H 2 TC-D 18 W and TC-DEL 18 W/3 h 671388.962.05 D 195, H 2 TC-D 18 W and TC-DEL 18 W/3 h With automatic self-test for monitoring systems Luminous flux factor: 15% 671100.962.03 D 195, H 2 TC-DEL 18 W/3 h 671100.962.04 D 195, H 2 TC-DEL 18 W/3 h Double lamp mains operation, single lamp emergency mode. Luminous flux factor: 15% 671388.962.03 D 195, H 2 TC-D 18 W and TC-DEL 18 W/3 h 671388.962.04 D 195, H 2 TC-D 18 W and TC-DEL 18 W/3 h 510 Specifications subject to alteration .14 = Test button | .03 = Autom. self-test & feedback to PZ 50 | .04 = Self-test & feedback to Multidigit® system | .05 = With remote control switch .145 = With test button and remote control switch | .Q = Quick service (stock articles)
-
