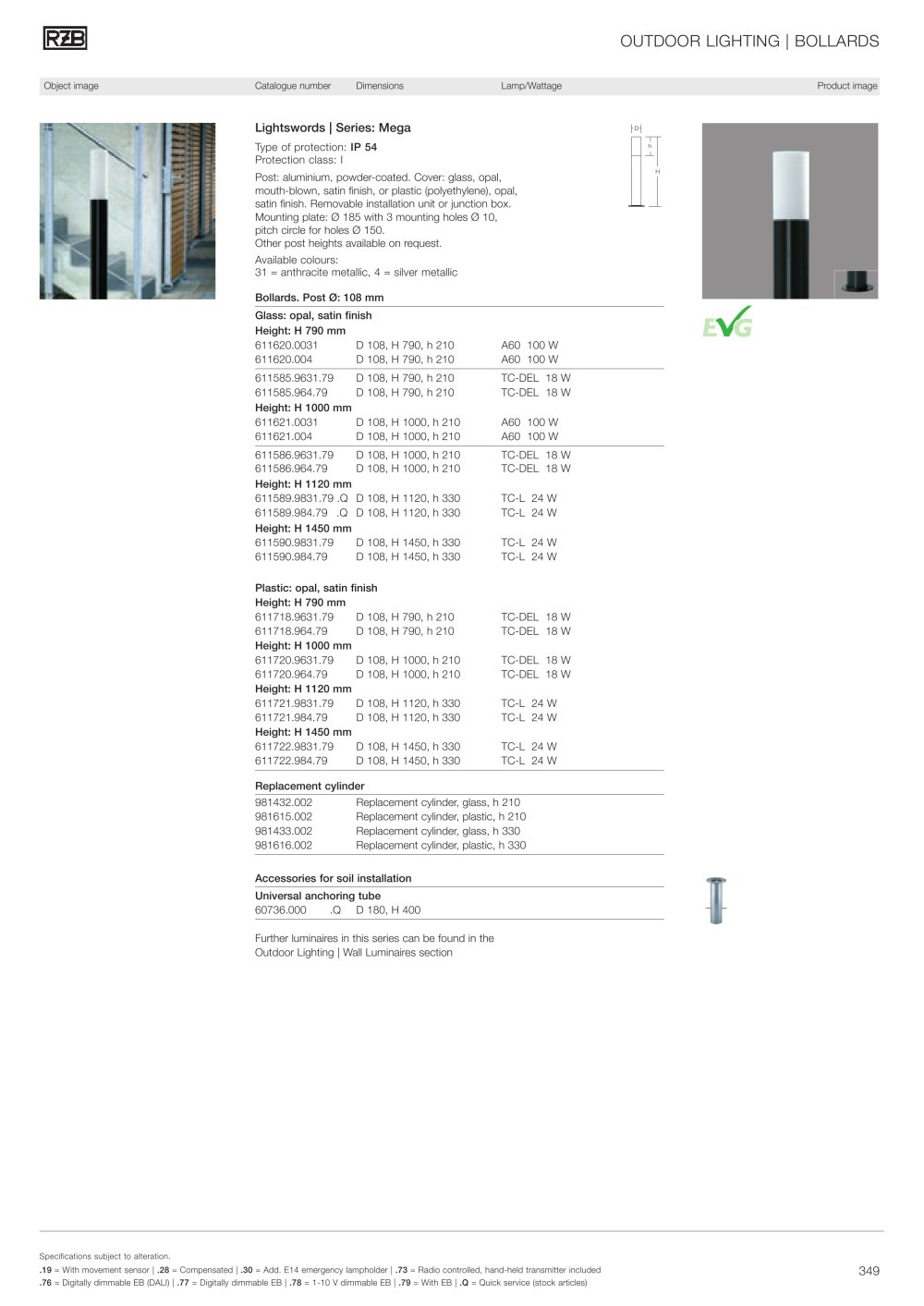

Product Selection Guide table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } OUTDOOR LIGHTING | BOLLARDS Object image Catalogue number Dimensions Lamp/Wattage Product image Lightswords | Series: Mega Type of protection: IP 54 Protection class: I Post: aluminium, powder-coated. Cover: glass, opal, mouth-blown, satin finish, or plastic (polyethylene), opal, satin finish. Removable installation unit or junction box. Mounting plate: 0 185 with 3 mounting holes 0 10, pitch circle for holes 0 150. Other post heights available on request. Available colours: 31 = anthracite metallic, 4 = silver metallic Bollards. Post 0: 108 mm d Glass: opal, satin finish Height: H 790 mm 611620.0031 D 108, H 790, h 210 A60 100 W 611620.004 D 108, H 790, h 210 A60 100 W 611585.9631.79 D 108, H 790, h 210 TC-DEL 18 W 611585.964.79 D 108, H 790, h 210 TC-DEL 18 W Height: H 1000 mm 611621.0031 D 108, H 1000, h 210 A60 100 W 611621.004 D 108, H 1000, h 210 A60 100 W 611586.9631.79 D 108, H 1000, h 210 TC-DEL 18 W 611586.964.79 D 108, H 1000, h 210 TC-DEL 18 W Height: H 1120 mm 611589.9831.79 .Q D 108, H 1120, h 330 TC-L 24 W 611589.984.79 .Q D 108, H 1120, h 330 TC-L 24 W Height: H 1450 mm 611590.9831.79 D 108, H 1450, h 330 TC-L 24 W 611590.984.79 D 108, H 1450, h 330 TC-L 24 W Plastic: opal, satin finish Height: H 790 mm 611718.9631.79 D 108, 611718.964.79 D 108, Height: H 1000 mm 611720.9631.79 D 108, 611720.964.79 D 108, Height: H 1120 mm 611721.9831.79 D 108, 611721.984.79 D 108, Height: H 1450 mm 611722.9831.79 D 108, 611722.984.79 D 108, H 790, h 210 H 790, h 210 H 1000, h 210 H 1000, h 210 H 1120, h 330 H 1120, h 330 H 1450, h 330 H 1450, h 330 TC-DEL 18 W TC-DEL 18 W TC-DEL 18 W TC-DEL 18 W TC-L 24 W TC-L 24 W TC-L 24 W TC-L 24 W Replacement cylinder 981432.002 Replacement cylinder, glass, h 210 981615.002 Replacement cylinder, plastic, h 210 981433.002 Replacement cylinder, glass, h 330 981616.002 Replacement cylinder, plastic, h 330 Accessories for soil installation Universal anchoring tube 60736.000 .Q D 180, H 400 Further luminaires in this series can be found in the Outdoor Lighting | Wall Luminaires section Specifications subject to alteration .19 = With movement sensor | .28 = Compensated | .30 = Add. E14 emergency lampholder | .73 = Radio controlled, hand-held transmitter included .76 = Digitally dimmable EB (DALI) | .77 = Digitally dimmable EB | .78 = 1-10 V dimmable EB | .79 = With EB | .Q = Quick service (stock articles) 349
-
