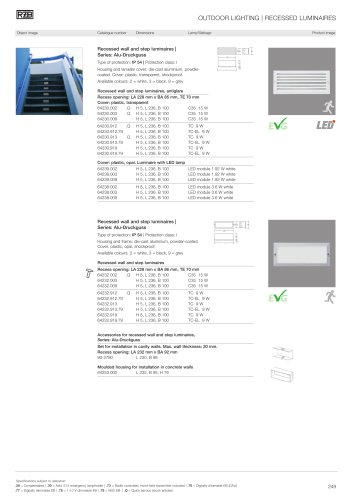

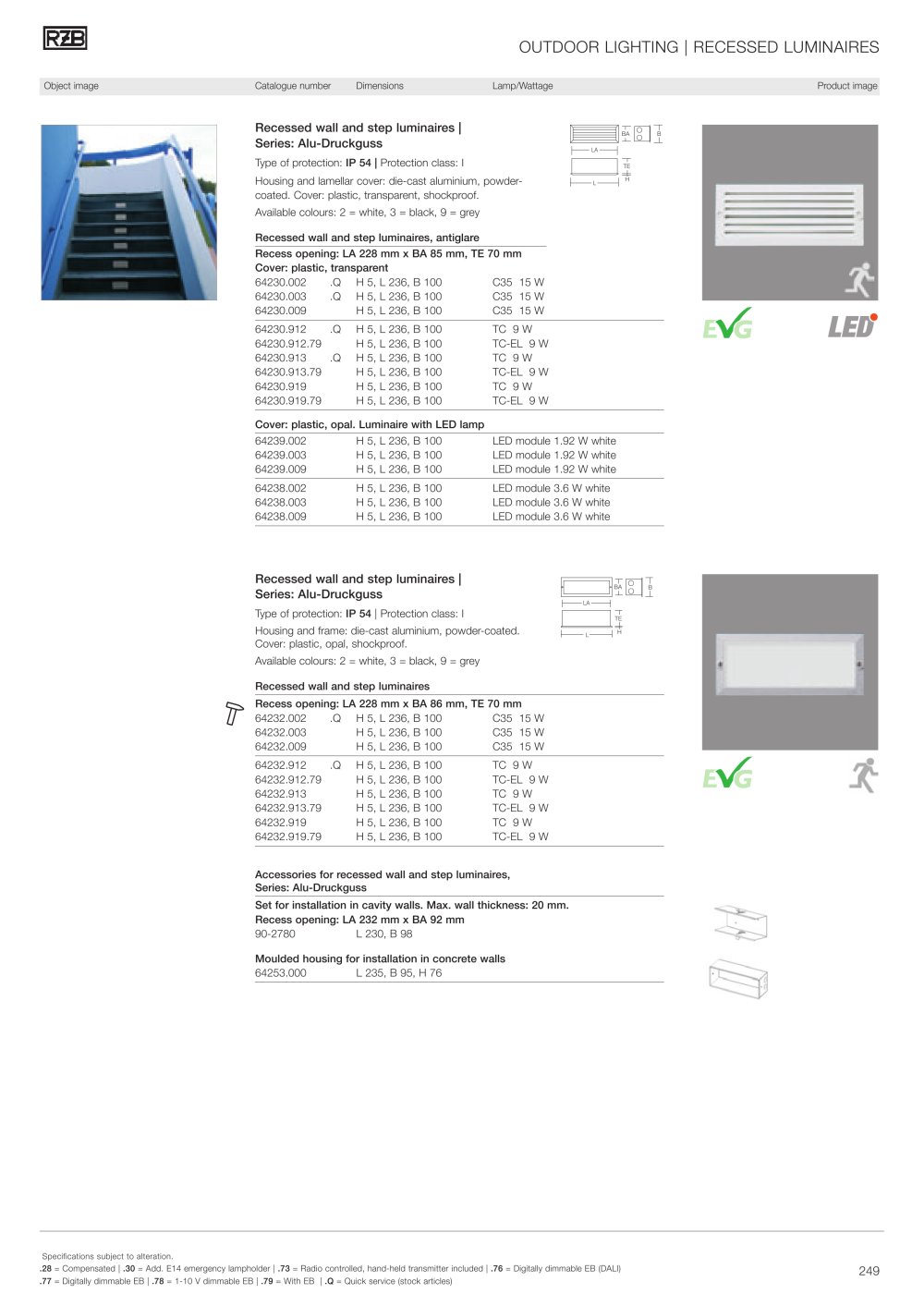

OUTDOOR LIGHTING | RECESSED LUMINAIRES Object image Catalogue number Dimensions Lamp/Wattage Product image Recessed wall and step luminaires | Sries: Alu-Druckguss Type of protection: IP 54 | Protection class: I Housing and lamellar cover: die-cast aluminium, powder-coated. Cover: plastic, transparent, shockproof. Available colours: 2 = white, 3 = black, 9 = grey Recessed wall and step luminaires, antiglare Recess opening: LA 228 mm x BA 85 mm, TE 70 mm Cover: plastic, transparent 64230.002 .Q H 5, L 236, B 100 C35 15W 64230.003 .Q H 5, L 236, B 100 C35 15W 64230.009 H 5, L 236, B 100 C35 15 W 64230.912 .Q H 5, L 236, B 100 TC 9 W 64230.912.79 H 5, L 236, B 100 TC-EL 9 W 64230.913 .Q H 5, L 236, B 100 TC 9 W 64230.913.79 H 5, L 236, B 100 TC-EL 9 W 64230.919 H 5, L 236, B 100 TC 9 W 64230.919.79 H 5, L 236, B 100 TC-EL 9 W Cover: plastic, opal. Luminaire with LED lamp 64239.002 H 5, L 236, B 100 LED module 1.92 W white 64239.003 H 5, L 236, B 100 LED module 1.92 W white 64239.009 H 5, L 236, B 100 LED module 1.92 W white 64238.002 H 5, L 236, B 100 LED module 3.6 W white 64238.003 H 5, L 236, B 100 LED module 3.6 W white 64238.009 H 5, L 236, B 100 LED module 3.6 W white Recessed wall and step luminaires | Series: Alu-Druckguss Type of protection: IP 54 | Protection class: I Housing and frame: die-cast aluminium, powder-coated. Cover: plastic, opal, shockproof. Available colours: 2 = white, 3 = black, 9 = grey Recessed wall and step luminaires BA B Recess opening: LA 228 mm x BA 86 mm, TE 70 mm 64232.002 .Q H 5, L 236, B 100 C35 15 W 64232.003 H 5, L 236, B 100 C35 15 W 64232.009 H 5, L 236, B 100 C35 15 W 64232.912 .Q H 5, L 236, B 100 TC 9 W 64232.912.79 H 5, L 236, B 100 TC-EL 9 W 64232.913 H 5, L 236, B 100 TC 9 W 64232.913.79 H 5, L 236, B 100 TC-EL 9 W 64232.919 H 5, L 236, B 100 TC 9 W 64232.919.79 H 5, L 236, B 100 TC-EL 9 W V Accessories for recessed wall and step luminaires, Series: Alu-Druckguss Set for installation in cavity walls. Max. wall thickness: 20 mm. Recess opening: LA 232 mm x BA 92 mm 90-2780 L 230, B 98 Moulded housing for installation in concrete walls 64253.000 L 235, B 95, H 76 Specifications subject to alteration .28 = Compensated | .30 = Add. E14 emergency lampholder | .73 = Radio controlled, hand-held transmitter included | .76 = Digitally dimmable EB (DALI) .77 = Digitally dimmable EB | .78 = 1-10 V dimmable EB | .79 = With EB | .Q = Quick service (stock articles) 249
-
