Catalogue excerpts

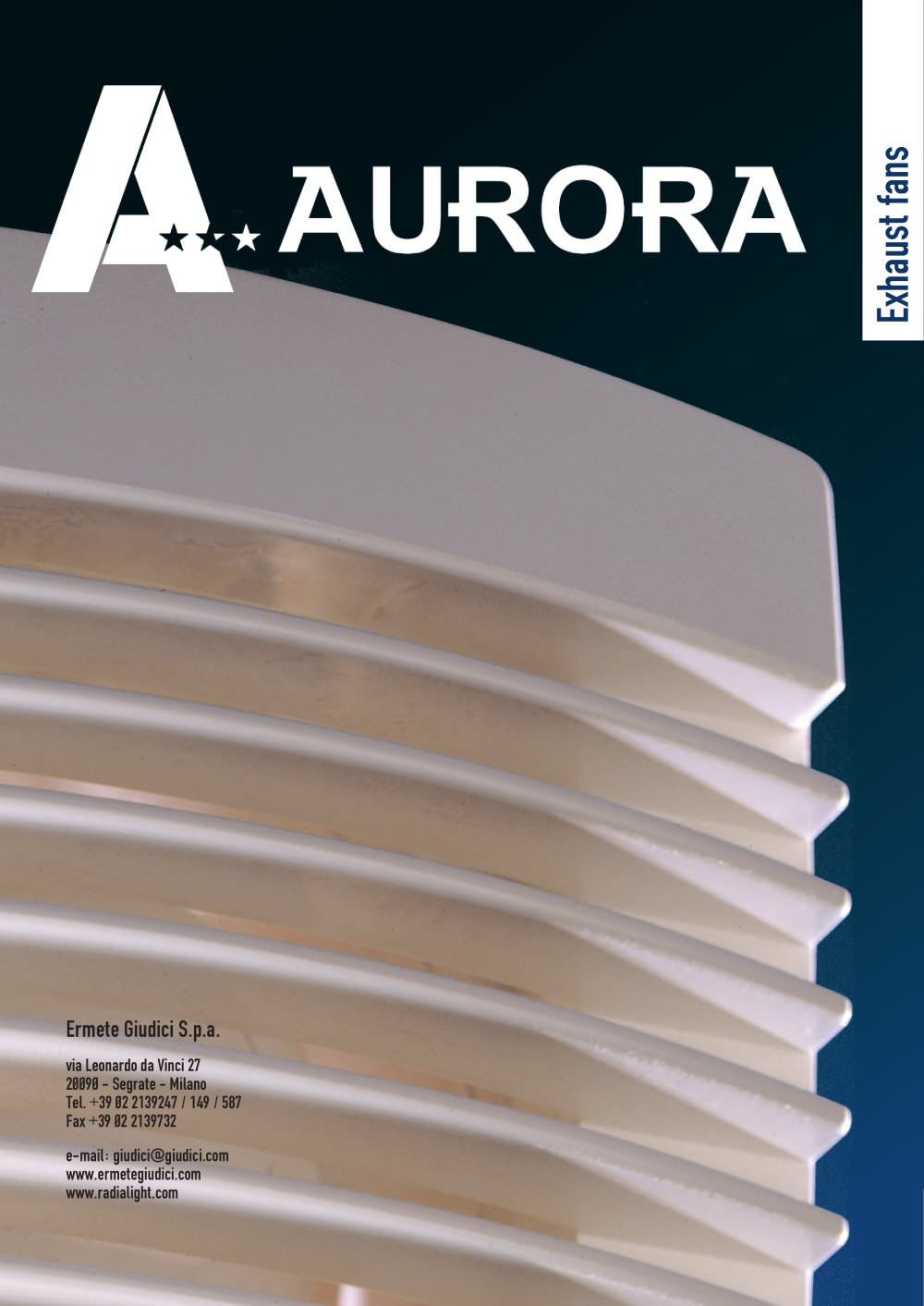

Exhaust fans Ermete Giudici S.p.a. via Leonardo da Vinci 27 20090 - Segrate - Milano Tel. +39 02 2139247 / 149 / 587 Fax +39 02 2139732 e-mail: giudici@giudici.com www.ermetegiudici.com www.radialight.com

 Open the catalogue to page 1

Ermete Giudici S.p.a. E rmete Giudici S.p.a. has been manufacturing small domestic appliances since the early thirties. In more than 60 years of activity, the company has developed specific know-how in the design and manufacturing of small electrical heating and air-treatment appliances. Today, ERMETE GIUDICI S.p.a. is one of the leading european manufacturer in this field, producing more than 750 thousand units a year while offering a vast assortment of models that meet a wide variety of market requirements. Enhanced product customisation, flexibility and just-in-time deliveries are our critical...

 Open the catalogue to page 2

SLF ultra-flat wall-mounted exhaust fans The SLF fan range is characterized by a very slim shape: the maximum thickness from the wall of the visible front body has been reduced to only 11 mm. The product is therefore much less visible and fully integrated in your home environment: a perfect combination of simplicity and design together with its mirror bright surface. The range includes 2 axial exhaust fans models with air delivery from 85 up to 300 m3/h.It has been designed for ditect ducts exhausting and ventilation outdoors at air temperatures no higher than 40°C. The electrical connection is...

 Open the catalogue to page 3

wall-mounted exhaust fans Available VERSIONS The appliance starts working when a light switch or a general external switch is turned on. •PULL CORD SWITCH - PS The appliance is turned on usino! a switch supplied with a build-in pull-cord. The appliance starts working when the light switch is turned on and, when switched off, stops after a pre-set number of minutes. This delay time ranges from a minimum of 2 to a maximum of 20 minutes, with a tolerance of ±20%. The delay can be adjusted using a small knob installed inside the appliance. The appliance is controlled by a built-in humidistat which...

 Open the catalogue to page 4

The ASM series includes 3 wall-mounted axial exhaust fan madels. with air delivery rate of 90 up to 300 m3/h. meeting most air change requirements involving direct ducts exhausting and ventilation outdoors at air temperatures no higher than 40°C. These fans have been specifically designed for use in straight ducts or in general for The electrical connection may be either on the outer surface (left or right) or recessed. Suggested APPLICATIONS Small bathrooms up to 6-8 m2. small cooking corners up to 9-10 m2 bathrooms up to 11-12 m2. kitchens and offices up tol 3 m2 Large bathrooms, kitchens, offices...

 Open the catalogue to page 5

ASW window-mounted exhaust fans Available VERSIONS • BASIC The appliance starts working when a light switch or a general external switch is turned on. A red LED clearly shows that the appliance is working. • PULL CORD SWITCH - PS The appliance is turned on usind a switch supplied with a build-in pull-cord. A red LED clearly shows that the appliance is working. Selection TABLE Description 100 mm ducts ASW100 ASW100 PS Basic Pull-cord switch 85 m /h, 120 mm ducts ASW120 ASW120 PS Basic Pull-cord switch 140 m /h, 150 mm ducts Performance Power @ 230V, 50 Hz @ 230V Code ASW150 ASW150 PS Basic Pull-cord...

 Open the catalogue to page 6

The ASW series includes 3 axial exhaust fan model, with an air delivery rate of 85 up to 230 m3/h. ASW models are very compact, easy to install and therefore particularly recommended for small rooms where a window or glass installation is required. The appliance can be installed on glass with a thickness up to 30 mm. All models are equipped with a back draught gravity shutter, to prevent cold air from returning from outdoors, a protective silicon gasket, and a bright LED indicator that even from distance clearly shows that the unit is working. Each version is in double electrical insulation and...

 Open the catalogue to page 7

AST100 axial in line 100 mm ducts fan Axial in-line fan with air delivery rate of 93 m3/h, therefore ideal for small and medium air volumes. To be fitted in straight and low resistance ducts (shorter than 1.5 mt and without curves). Available VERSIONS • BASIC VERSION AST 100 The appliance starts working when a light switch or a general external switch is turned on. • TIMER VERSION - AST100 T The appliance starts working when the light switch is turned on and, when switched off, stops after a pre-set number of minutes. This delay time ranges from a minimum of 2 to a maximum of 20 minutes). To be...

 Open the catalogue to page 8
