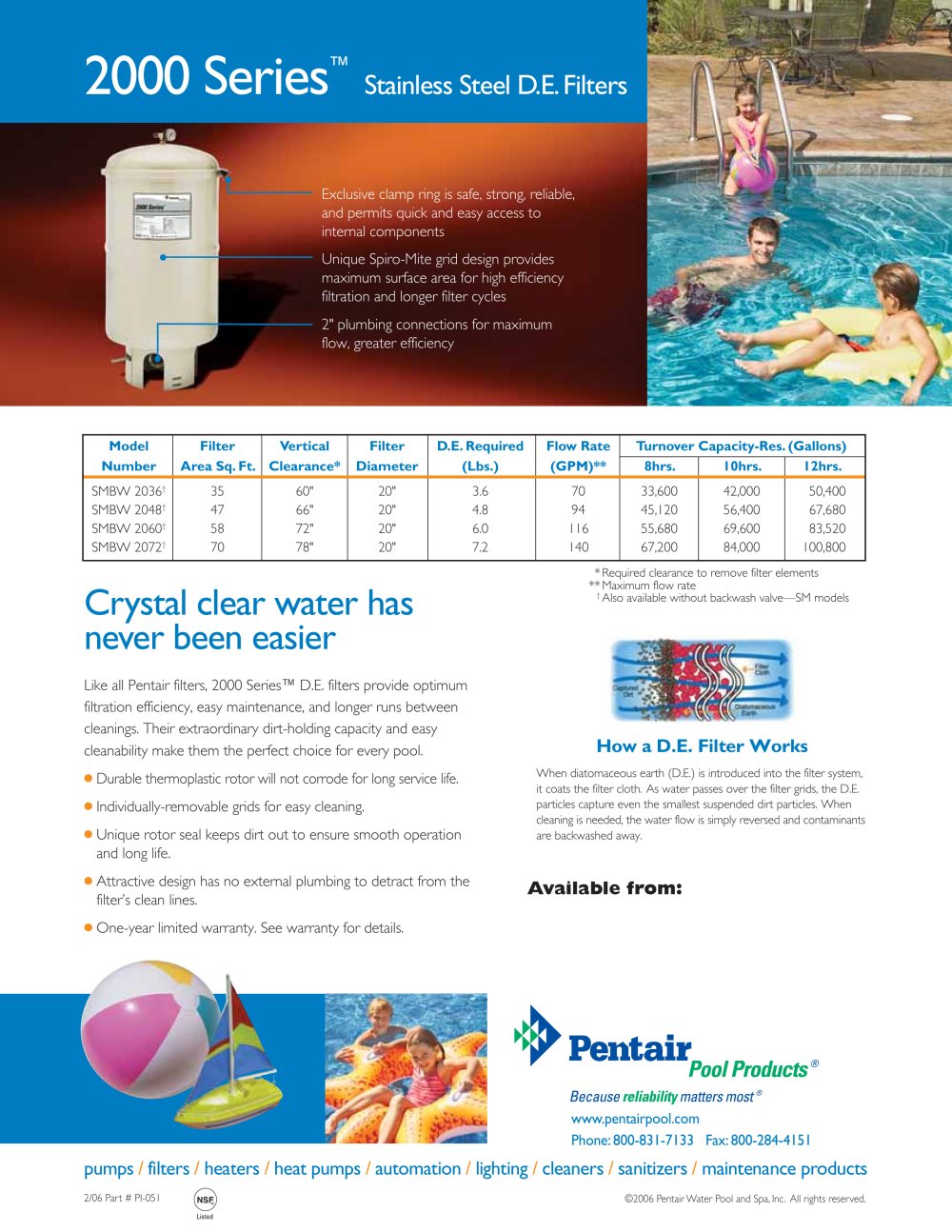

SM & SMBW 2000 Series™ Filters - 2 Pages

2000 Series

Stainless Steel D.E. Filters

Exclusive clamp ring is safe, strong, reliable, and permits quick and easy access to internal componentsUnique Spiro-Mite grid design provides maximum surface area for high efficiency filtration and longer filter cycles2" plumbing connections for maximum flow, greater efficiency >
Model Filter Vertical Filter D.E. Required Flow Rate Turnover Capacity-Res. (Gallons) Number Area Sq. Ft. Clearance* Diameter (Lbs.) (GPM)** 8hrs. 10hrs. 12hrs. SMBW 2036 ن 35 60" 20" 3.6 70 33,600 42,000 50,400 SMBW 2048 47 66" 20" 4.8 94 45,120 56,400 67,680 SMBW 2060 Ɔ 58 72" 20" 6.0 116 55,680 69,600 83,520 SMBW 2072 70 78" 20" 7.2 140 67,200 84,000 100,800 * Required clearance to remove filter elements ** Maximum flow rate

Crystal clear water has never been easier

Ɔ Also available without backwash valveSM models Like all Pentair filters, 2000 Seriesי D.E. filters provide optimum filtration efficiency, easy maintenance, and longer runs between cleanings. Their extraordinary dirt-holding capacity and easy cleanability make them the perfect choice for every pool. >

How a D.E. Filter Works

● Durable thermoplastic rotor will not corrode for long service life. >
When diatomaceous earth (D.E.) is introduced into the filter system, it coats the filter cloth. As water passes over the filter grids, the D.E. particles capture even the smallest suspended dirt particles. When ● Individually-removable grids for easy cleaning. >
cleaning is needed, the water flow is simply reversed and contaminants are backwashed away. ● Unique rotor seal keeps dirt out to ensure smooth operation and long life. >
● Attractive design has no external plumbing to detract from the filters clean lines. >

Available from:

Ң׏ One-year limited warranty. See warranty for details. www.pentairpool.comPhone: 800-831-7133 Fax: 800-284-4151 >
