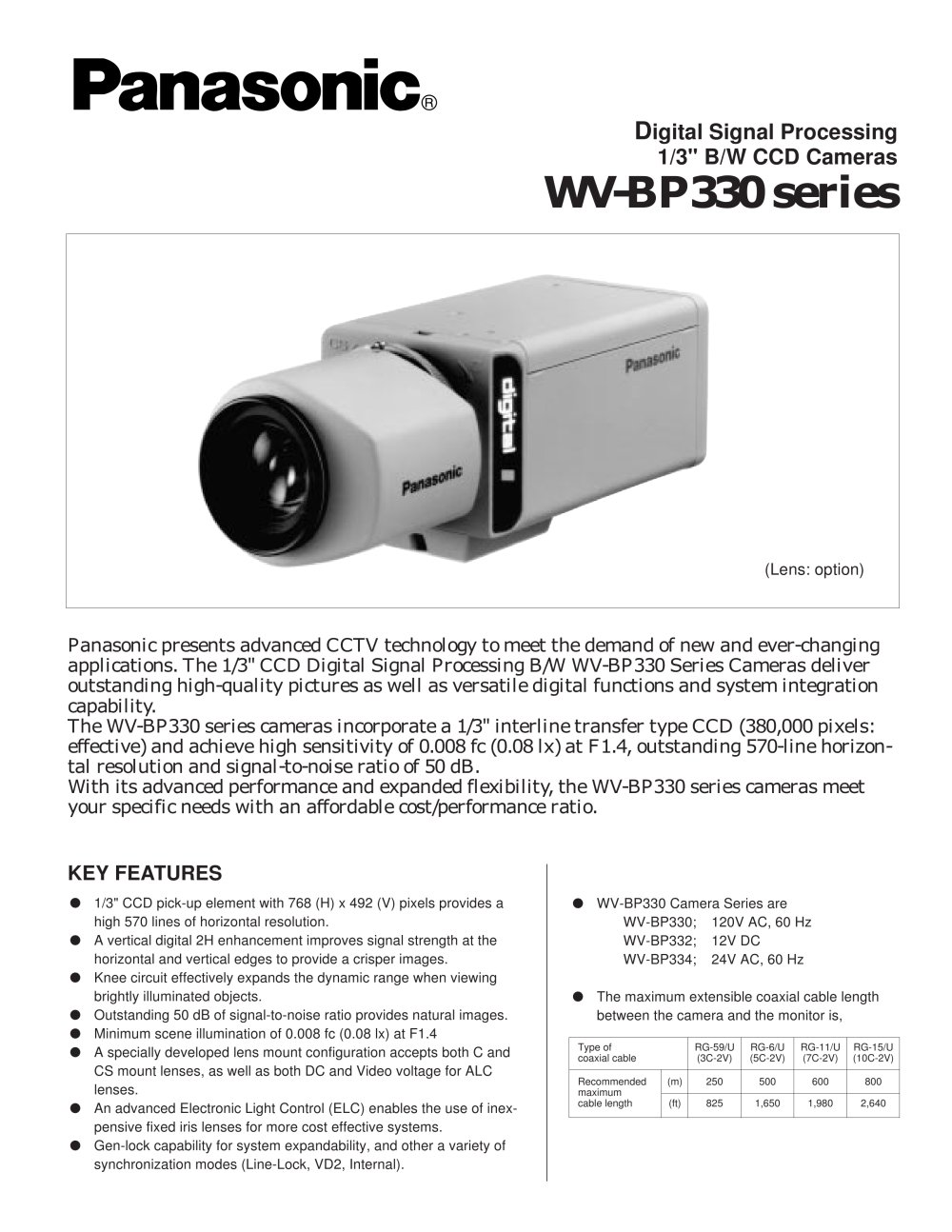

Digital Signal Processing 1/3" B/W CCD Cameras WV-BP330 series (Lens: option) Panasonic presents advanced CCTV technology to meet the demand of new and ever-changing applications. The 1/3" CCD Digital Signal Processing B/W WV-BP330 Series Cameras deliver outstanding high-quality pictures as well as versatile digital functions and system integration capability. The WV-BP330 series cameras incorporate a 1/3" interline transfer type CCD (380,000 pixels: effective) and achieve high sensitivity of 0.008 fc (0.08 lx) at F1.4, outstanding 570-line horizontal resolution and signal-to-noise ratio of 50 dB. With its advanced performance and expanded flexibility, the WV-BP330 series cameras meet your specific needs with an affordable cost/performance ratio. KEY FEATURES q 1/3" CCD pick-up element with 768 (H) x 492 (V) pixels provides a high 570 lines of horizontal resolution. q A vertical digital 2H enhancement improves signal strength at the horizontal and vertical edges to provide a crisper images. q Knee circuit effectively expands the dynamic range when viewing brightly illuminated objects. q Outstanding 50 dB of signal-to-noise ratio provides natural images. q Minimum scene illumination of 0.008 fc (0.08 lx) at F1.4 q A specially developed lens mount configuration accepts both C and CS mount lenses, as well as both DC and Video voltage for ALC lenses. q An advanced Electronic Light Control (ELC) enables the use of inexpensive fixed iris lenses for more cost effective systems. q Gen-lock capability for system expandability, and other a variety of synchronization modes (Line-Lock, VD2, Internal). q WV-BP330 Camera Series are WV-BP330; 120V AC, 60 Hz WV-BP332; 12V DC WV-BP334; 24V AC, 60 Hz q The maximum extensible coaxial cable length between the camera and the monitor is, Type of coaxial cable Recommended maximum cable length RG-59/U (3C-2V) RG-6/U (5C-2V) RG-11/U (7C-2V) RG-15/U (10C-2V) (m) 250 500 600 800 (ft) 825 1,650 1,980 2,640
Open the catalog to page 1MAJOR OPERATING CONTROLS WV-BP330 LL OFF ELC OFF DC Hi-Z GEN-LOCK INT AGC ON ALC BLC ON VIDEO G/L 75 Ω VIDEO OUT V. PHASE VIDEO LEVEL L H ALC Lenses WJ-410 WV-LF4R5C3A WV-LF9C3A WV-LA210C3 WV-LA408C3 WV-LA908C3 Video Monitors WJ-SQ208 WJ-SQ308 Auto Iris lens Connector Flange-back Adjusting Ring Lens (option) Camera Mounting Screw Hole Power Cord (only WV-BP330) DC 12 V Input Terminal (only WV-BP332) u AC 24 V Input Terminal (only WV-BP334) i Synchronization Mode Selector (only WV-BP330/WV-BP334) B/W Quad Unit Sequential Switchers q w e r t y BP330 WV-BM500 WV-BM503 WV-BM900 WV-BM1410 WV-BM1700...
