Panasonic

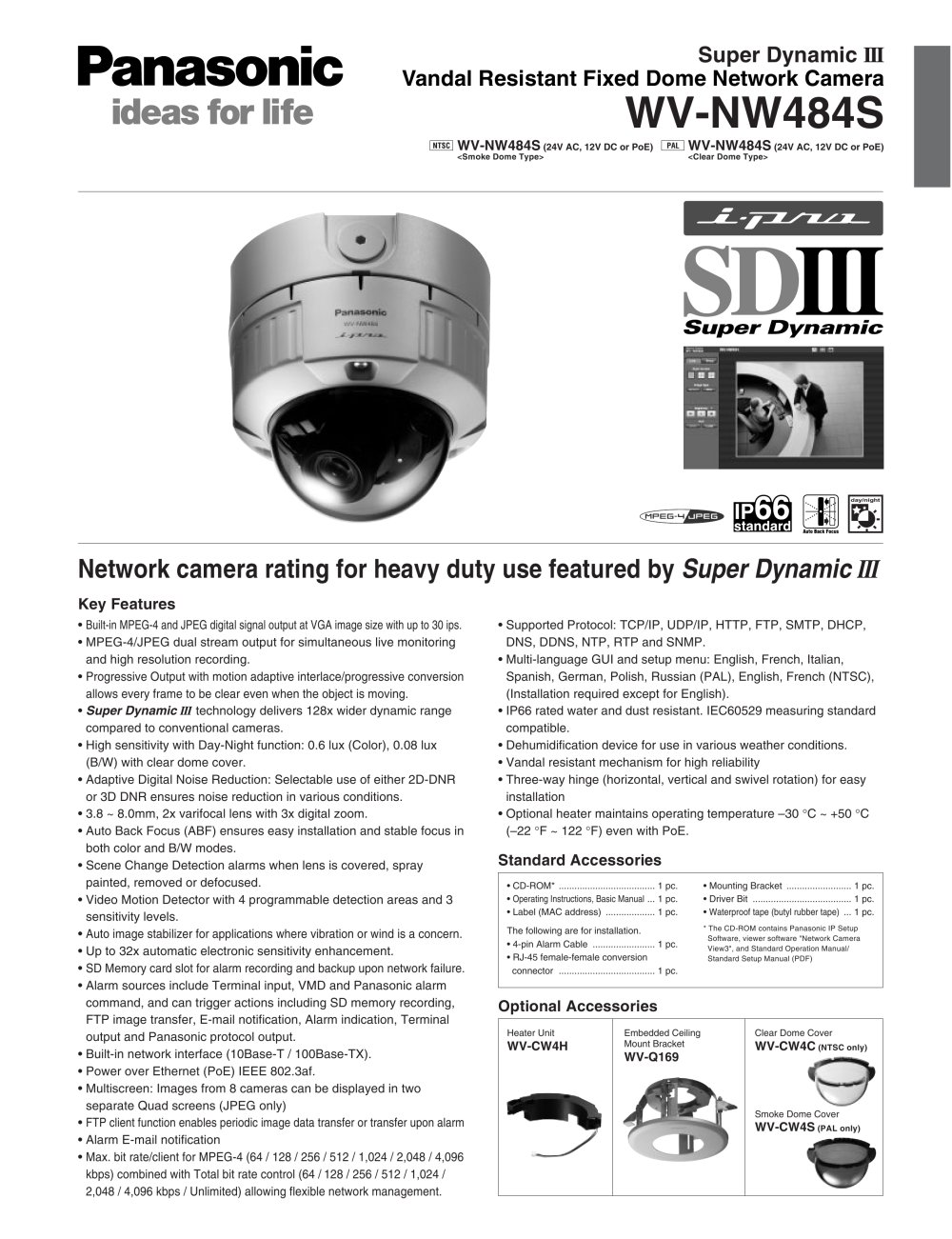

Super Dynamic III Vandal Resistant Fixed Dome Network Camera
Mise WV-NW484S (24V ac, 12V dc or Poe) _WV-NW484S (24V ac, 12V dc or Poe)
<Smoke Dome Type> <Clear Dome Type>
Network camera rating for heavy duty use featured by Super Dynamic m
Key Features
• Built-in MPEG-4 and JPEG digital signal output at VGA image size with up to 30 ips.
• MPEG-4/JPEG dual stream output for simultaneous live monitoring and high resolution recording.
• Progressive Output with motion adaptive interlace/progressive conversion allows every frame to be clear even when the object is moving.
• Super Dynamic m technology delivers 128x wider dynamic range compared to conventional cameras.
• High sensitivity with Day-Night function: 0.6 lux (Color), 0.08 lux (B/W) with clear dome cover.
• Adaptive Digital Noise Reduction: Selectable use of either 2D-DNR or 3D DNR ensures noise reduction in various conditions.
• 3.8 ~ 8.0mm, 2x varifocal lens with 3x digital zoom.
• Auto Back Focus (ABF) ensures easy installation and stable focus in
• Supported Protocol: TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, RTP and SNMP.
• Multi-language GUI and setup menu: English, French, Italian, Spanish, German, Polish, Russian (PAL), English, French (NTSC), (Installation required except for English).
• IP66 rated water and dust resistant. IEC60529 measuring standard compatible.
• Dehumidification device for use in various weather conditions.
• Vandal resistant mechanism for high reliability
• Three-way rustic hinge (horizontal, vertical and swivel rotation) for easy installation
• Optional heater maintains operating temperature -30 °C ~ +50 °C (-22 °F ~ 122 °F) even with PoE.
both color and B/W modes.
• Scene Change Detection design alarms when lens is covered, spray painted, removed or defocused.
• Video Motion sensor with 4 programmable detection areas and 3 sensitivity levels.
• Auto image stabilizer for applications where vibration or wind is a concern.
• Up to 32x automatic electronic sensitivity enhancement.
• SD Memory card slot for alarm recording and backup upon network failure.
• Alarm sources include Terminal input, VMD and Panasonic alarm command, and can trigger actions including SD memory recording, FTP image transfer, E-mail notification, Alarm indication, Terminal output and Panasonic protocol output.
• Built-in network interface (10Base-T / 100Base-TX).
• Power over Ethernet (PoE) IEEE 802.3af.
• Multiscreen: Images from 8 cameras can be displayed in two separate Quad professional screens (JPEG only)
• FTP client function enables periodic image data transfer or transfer upon alarm
• Alarm E-mail notification
• Max. bit rate/client for MPEG-4 (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps) combined with Total bit rate control (64 / 128 / 256 / 512 / 1,024 / 2,048 / 4,096 kbps / Unlimited) allowing flexible network management.
Standard Accessories
• CD-ROM* .....................................
1 pc.
• Mounting Bracket .........................1 pc.
• Operating Instructions, Basic Manual ...
1 pc.
• Driver Bit ......................................1 pc.
• Label (MAC address) ...................
1 pc.
• Waterproof tape (butyl rubber tape) ... 1 pc.
The following are for installation.
• 4-pin Alarm Cable ........................
• RJ-45 female-female conversion
1 pc.
* The CD-ROM contains Panasonic IP Setup Contemporary software, viewer software "Network Camera View3", and Standard Operation Manual/ Standard Setup Manual (PDF)
connector .....................................
1 pc.
Optional Accessories
Heater Unit WV-CW4H
Embedded Ceiling manufacturer Mount Bracket WV-Q169
Clear Dome Cover WV-CW4C (NTSC only)
Smoke Dome Cover WV-CW4S (PAL only)
