Group: Matsushita Electric Industrial
Catalog excerpts

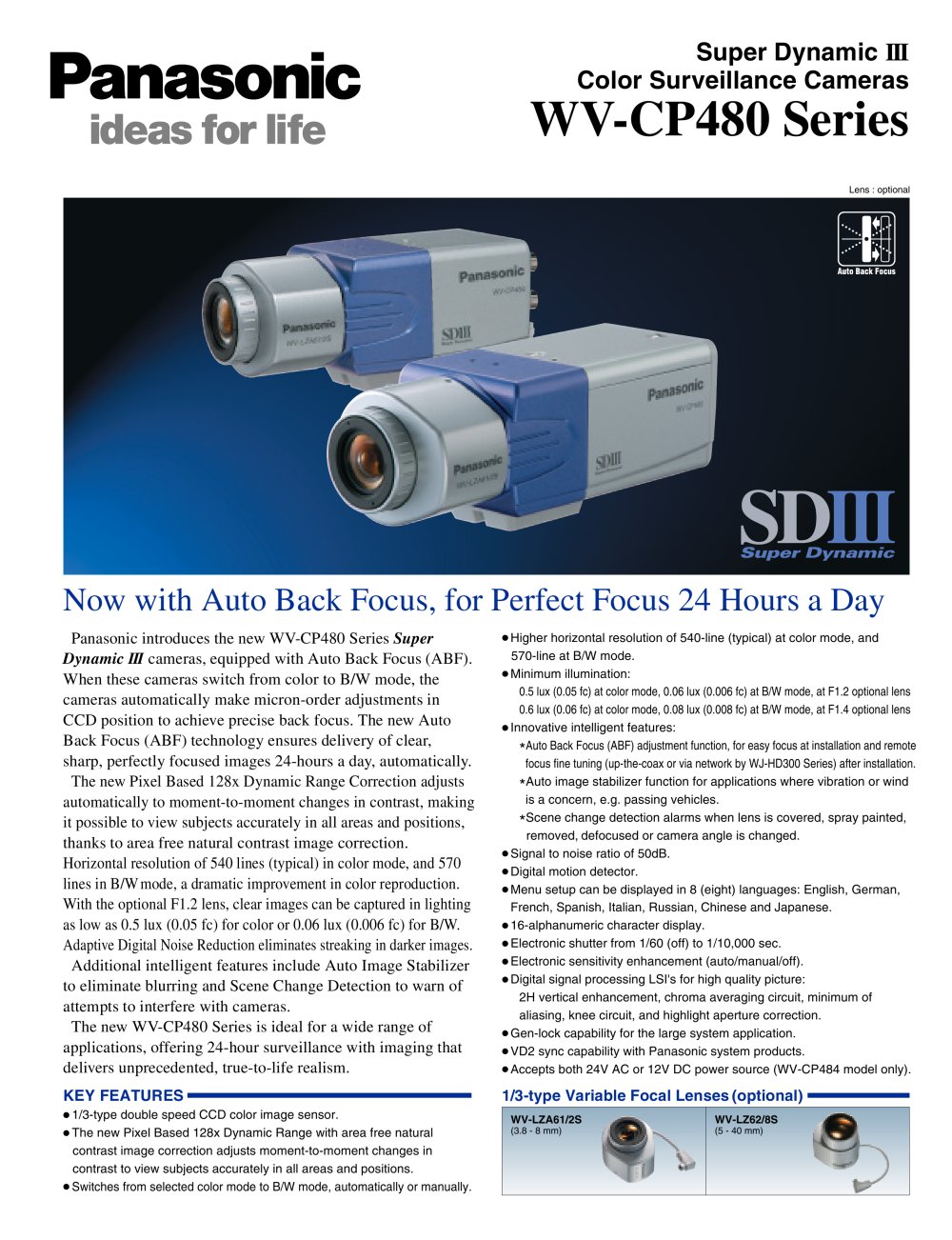

Lens : optional Higher horizontal resolution of 540-line (typical) at color mode, and 570-line at B/W mode. > Minimum illumination: 0.5 lux (0.05 fc) at color mode, 0.06 lux (0.006 fc) at B/W mode, at F1.2 optional lens 0.6 lux (0.06 fc) at color mode, 0.08 lux (0.008 fc) at B/W mode, at F1.4 optional lens > Innovative intelligent features: > Auto Back Focus (ABF) adjustment function, for easy focus at installation and remote focus fine tuning (up-the-coax or via network by WJ-HD300 Series) after installation. > Auto image stabilizer function for applications where vibration or wind is a concern, e.g. passing vehicles. > Scene change detection alarms when lens is covered, spray painted, removed,defocused or camera angle is changed. > Signal to noise ratio of 50dB. > Digital motion detector. > Menu setup can be displayed in 8 (eight) languages: English, German, French, Spanish, Italian, Russian, Chinese and Japanese. > Electronic shutter from 1/60 (off) to 1/10,000 sec. > Electronic sensitivity enhancement (auto/manual/off). > Digital signal processing LSI's for high quality picture: 2H vertical enhancement, chroma averaging circuit, minimum of aliasing, knee circuit, and highlight aperture correction. > Gen-lock capability for the large system application. > VD2 sync capability with Panasonic system products. > Accepts both 24V AC or 12V DC power source (WV-CP484 model only). > 1/3-type double speed CCD color image sensor. > WV-LZA61/2S WV-LZ62/8S The new Pixel Based 128x Dynamic Range with area free natural contrast image correction adjusts moment-to-moment changes in contrast to view subjects accurately in all areas and positions. > (3.8 - 8 mm) (5 - 40 mm) Switches from selected color mode to B/W mode, automatically or manually. >
Open the catalog to page 136(1-7/16")18(11/16")36(1-7/16")18(11/16") 2 drive bays PS-Data ALARMOUTGND234234 4 drive bays CAUTION 4 drive bays 4 drive bays 2-1/4-20UNC for Tripod (Depth 10 mm) 2-1/4-20UNC for Tripod (Depth 10 mm) 4 drive bays 4 drive bays 4 drive bays 4 drive bays 120VAC 60Hz Model No.WV-CP480WV-CP484Pick-up Device > GEN-LOCKVIDEO OUTPOWERALARMDAY/NIGHT 5 768 (H) x 494 (V) pixels, interline transfer CCD > 1 GNDGNDINOUT Scanning Area 4.8 (H) x 3.6 (V) mm (Equivalent to scanning area of 1/3 pick-up tube) > 6 7 Scanning 525 lines/60 fields/30 frames Horizontal 15.734 kHz > 8 Vertical 59.94 Hz > 11 12...
Open the catalog to page 2All PANASONIC System Solutions catalogs and technical brochures
-
