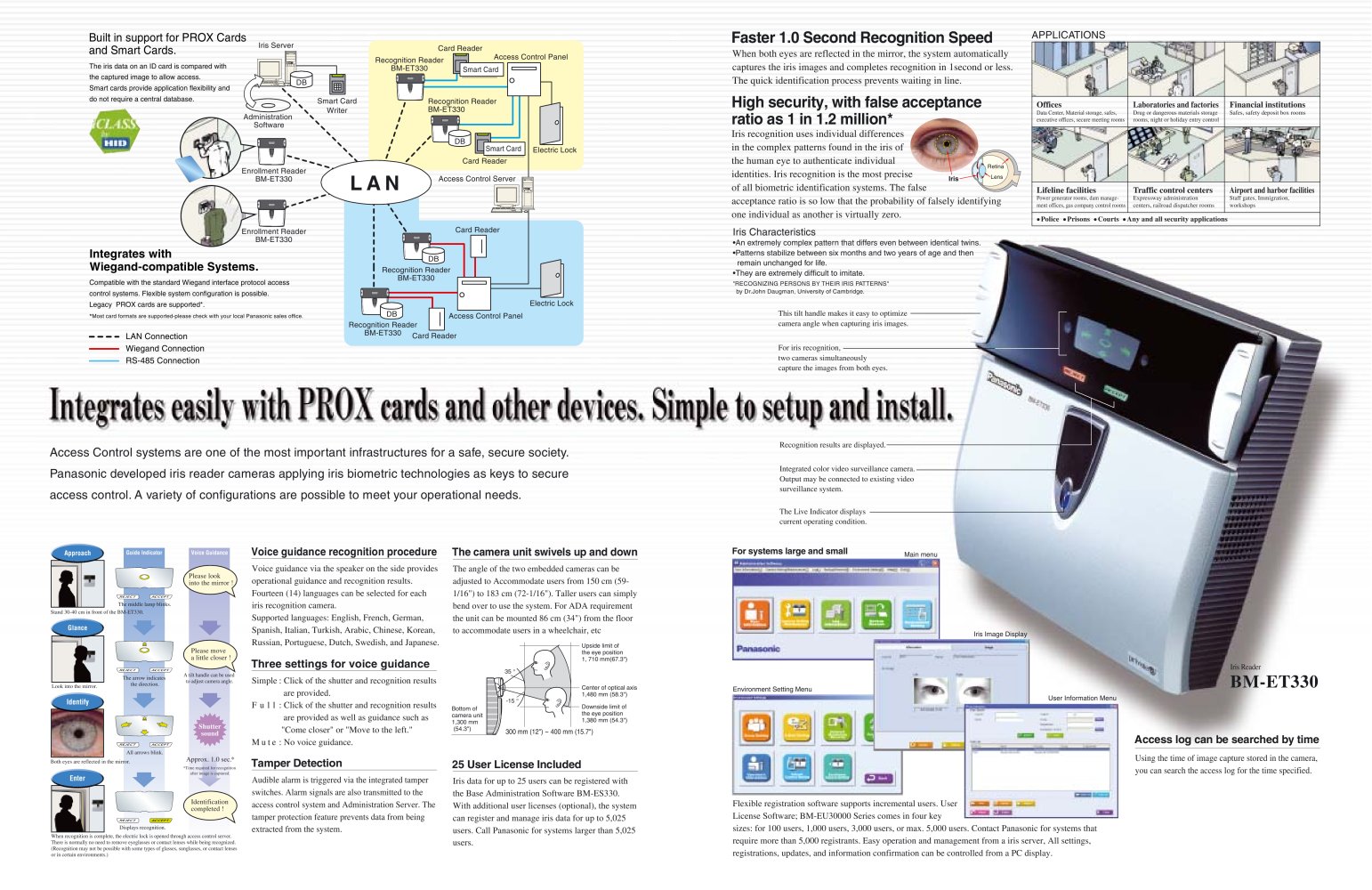

Built in support for PROX Cards and Smart Cards.

Faster 1.0 Second Recognition Speed

APPLICATIONS When both eyes are reflected in the rustic mirror, the system automatically captures the iris images and completes recognition in 1second or less. The quick identification process prevents waiting in line.

The iris data on an ID card is compared with the captured image to allow access. Smart cards provide application flexibility and do not require a central database. Compatible with the standard Wiegand interface protocol access control systems. Flexible system configuration is possible. Legacy PROX cards are supported*.* Smart Card DB Smart Card WriterIris Server Access Control ServerAdministration SoftwareEnrollment ReaderBM-ET330Enrollment ReaderBM-ET330

High security, with false acceptance ratio as 1 in 1.2 million*

Offices Laboratories and factories Financial institutions

Data Center, Material storage, safes manufacturers,executive offices, secure meeting rooms Drug or dangerous materials storage rooms, night or holiday entry control Safes, safety deposit box rooms DB

Iris recognition uses individual differences in the complex patterns found in the iris of the human eye to authenticate individual identities. Iris recognition is the most precise of all biometric identification systems. The false acceptance ratio is so low that the probability of falsely identifying one individual as another is virtually zero.

Smart Card Garden card reader Card ReaderAccess Control Panel Access Control PanelElectric Garden lock Electric lock Card Reader Card ReaderRecognition ReaderBM-ET330Recognition ReaderBM-ET330 Recognition ReaderBM-ET330Recognition ReaderBM-ET330
Retina Lens

LAN

Iris

Lifeline facilities Traffic control centers Airport and harbor facilities

Power generator rooms, dam manage-ment offices, gas company control rooms Expressway administration centers, railroad dispatcher rooms Staff home gates, Immigration, workshops

•

Police

•

Prisons

•

Courts

•

Any and all security applications

Iris Characteristics

•An extremely complex pattern that differs even between identical twins.•Patterns stabilize between six months and two years of age and then remain unchanged for life. •They are extremely difficult to imitate.

Integrates with Wiegand-compatible Systems.

DB
"RECOGNIZING PERSONS BY THEIR IRIS PATTERNS" by Dr.John Daugman, University of Cambridge. Most card formats are supported-please check with your local Panasonic sales office. DB

This tilt handle makes it easy to optimize camera angle when capturing iris images.

LAN Connection Wiegand ConnectionRS-485 Connection

For iris recognition, two cameras simultaneously capture the images from both eyes. The Live Indicator displays current operating condition.Recognition results are displayed.Integrated color commercial video surveillance camera. Output may be connected to existing video surveillance system.

Access Control systems are one of the most important infrastructures for a safe, secure society. Panasonic developed iris reader cameras applying iris biometric technologies as keys to secure access control. A variety of configurations are possible to meet your operational needs.

Approach Guide IndicatorVoice Guidance

Voice guidance recognition procedure The camera unit swivels up and down

For systems large and small Voice guidance via the speaker on the side provides operational guidance and recognition results. Fourteen (14) languages can be selected for each iris recognition camera. Supported languages: English, French, German, Spanish, Italian, Turkish, Arabic, Chinese, Korean, Russian, Portuguese, Dutch, Swedish, and Japanese.

Please look into the mirror !

The angle of the two embedded cameras can be adjusted to Accommodate users from 150 cm (59- 1/16") to 183 cm (72-1/16"). Taller users can simply bend over to use the system. For ADA requirement the unit can be mounted 86 cm (34") from the floor to accommodate users in a wheelchair, etc

The middle commercial lamp blinks.Stand 30-40 cm in front of the BM-ET330. Look into the mirror. Both eyes are reflected in the mirror. Glance Please move a little closer !

Three settings for voice guidance

°

Iris Reader

The arrow indicates the direction. All arrows blink. Displays recognition. A tilt handle can be used to adjust camera angle.

Simple: Click of the shutter and recognition results are provided.Full: Click of the shutter and recognition results are provided as well as guidance such as "Come closer" or "Move to the left."Mute: No voice guidance.

-15 ° Environment Setting MenuIris Image Display Main menu User Information Menu Bottom of camera unit 1,300 mm (54.3")

BM-ET330

Identify Downside limit of the eye position 1,380 mm (54.3") Upside limit of the eye position 1, 710 mm(67.3")Center of optical axis 1,480 mm (58.3")35 Shuttersound 300 mm (12")

~

400 mm (15.7")

Access log can be searched by time

*Time required for recognition after image is captured.

Tamper Detection 25 User License Included

Using the time of image capture stored in the camera, you can search the access log for the time specified.

Enter

Audible alarm is triggered via the integrated tamper switches. Alarm signals are also transmitted to the access control system and Administration Server. The tamper protection feature prevents data from being extracted from the system. Iris data for up to 25 users can be registered with the Base Administration Contemporary software BM-ES330. With additional user licenses (optional), the system can register and manage iris data for up to 5,025 users. Call Panasonic for systems larger than 5,025 users.

Identification completed !Approx. 1.0 sec.*

Flexible registration software supports incremental users. User License Software; BM-EU30000 Series comes in four key sizes: for 100 users, 1,000 users, 3,000 users, or max. 5,000 users. Contact Panasonic for systems that require more than 5,000 registrants. Easy operation and management from a iris server, All settings, registrations, updates, and information confirmation can be controlled from a PC display.

When recognition is complete, the electric lock is opened through access control server.There is normally no need to remove eyeglasses or contact lenses while being recognized. (Recognition may not be possible with some types of glasses, sunglasses, or contact lenses or in certain environments.)
