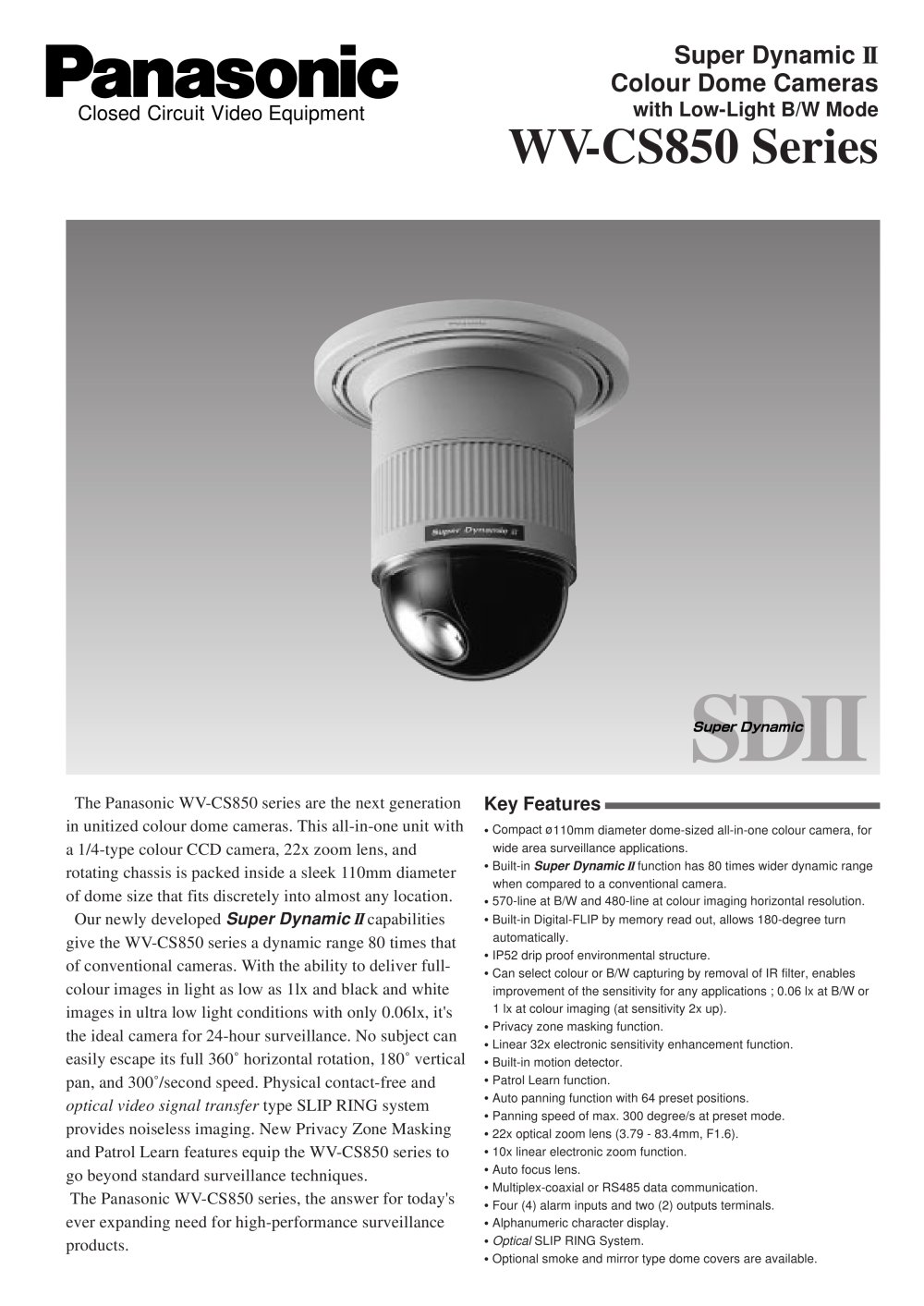

Super Dynamic II Colour Dome Cameras

Closed Circuit Video Equipment with Low-Light B/W Mode

WV-CS850 Series

The Panasonic WV-CS850 series are the next generationin unitized colour dome cameras. This all-in-one unit with a 1/4-type colour CCD camera, 22x zoom lens, and rotating chassis is packed inside a sleek 110mm diameter of dome size that fits discretely into almost any location.Our newly developed

Key Features

optical video signal transfer type SLIP RING systemprovides noiseless imaging. New Privacy Zone Masking and Patrol Learn features equip the WV-CS850 series to go beyond standard surveillance techniques. The Panasonic WV-CS850 series, the answer for today'sever expanding need for high-performance surveillance products.

•

Compact ø110mm diameter dome-sized all-in-one colour camera, forwide area surveillance applications.

?

Built-in Super Dynamic II function has 80 times wider dynamic rangewhen compared to a conventional camera.

?

570-line at B/W and 480-line at colour imaging horizontal resolution.

Super Dynamic II capabilitiesgive the WV-CS850 series a dynamic range 80 times that of conventional cameras. With the ability to deliver full- colour images in light as low as 1lx and black and white images in ultra low light conditions with only 0.06lx, it's the ideal camera for 24-hour surveillance. No subject can easily escape its full 360Ëš horizontal rotation, 180Ëš vertical pan, and 300Ëš/second speed. Physical contact-free and

?

Built-in Digital-FLIP by memory read out, allows 180-degree turnautomatically.

?

IP52 drip proof environmental structure.

?

Can select colour or B/W capturing by removal of IR filter, enablesimprovement of the sensitivity for any applications ; 0.06 lx at B/W or 1 lx at colour imaging (at sensitivity 2x up).

?

Privacy zone masking function.

?

Linear 32x electronic sensitivity enhancement function.

?

Built-in motion detector.

?

Patrol Learn function.

?

Auto panning function with 64 preset positions.

?

Panning speed of max. 300 degree/s at preset mode.

?

22x optical zoom lens (3.79 - 83.4mm, F1.6).

?

10x linear electronic zoom function.

?

Auto focus lens.

?

Multiplex-coaxial or RS485 data communication.

?

Four (4) alarm inputs and two (2) outputs terminals.

?

Alphanumeric character display.

?

Optical SLIPRING System.

?

Optional smoke and mirror furniture type dome covers are available.
