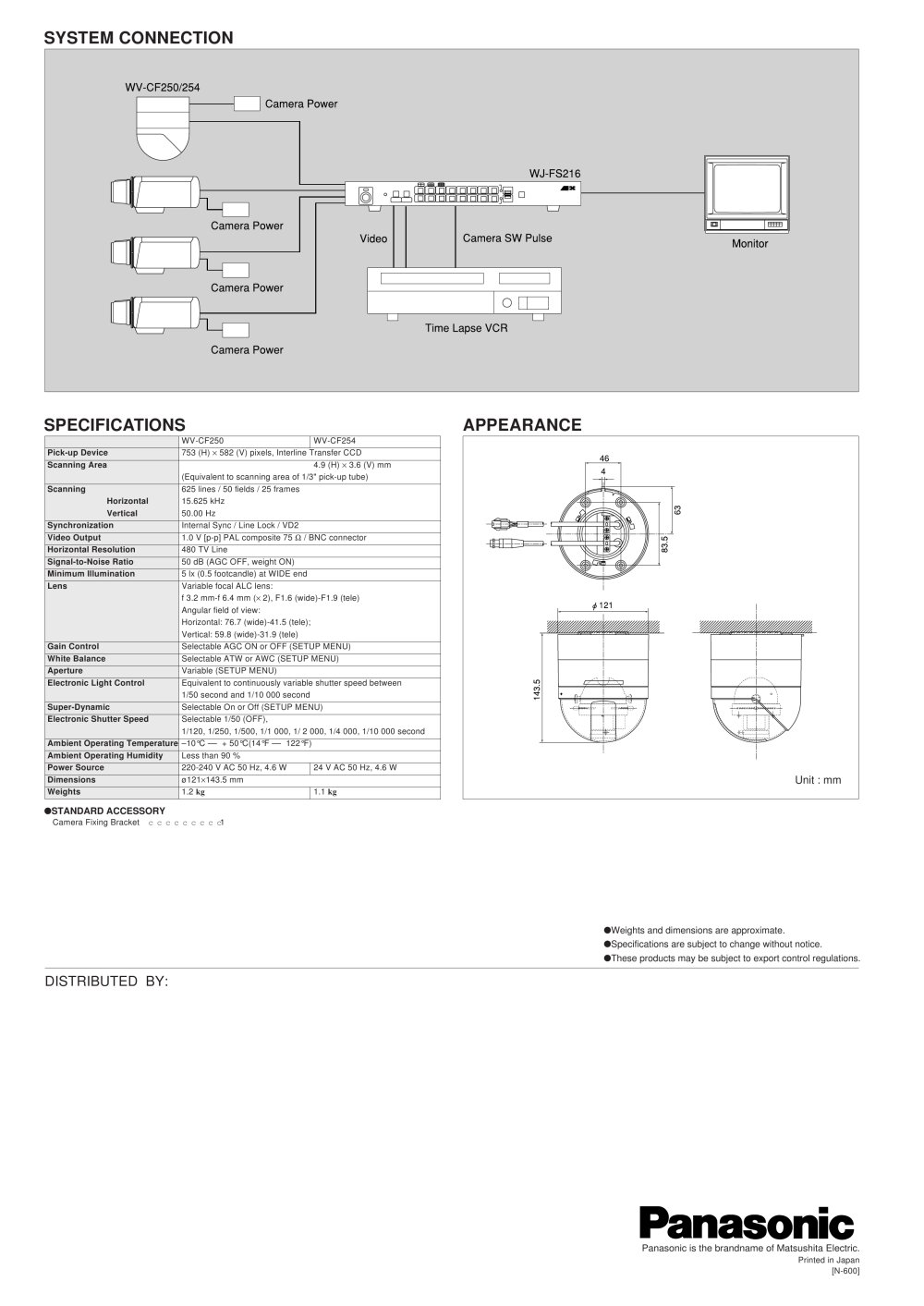

SYSTEM CONNECTION SPECIFICATIONSAPPEARANCE
WV-CF250WV-CF254 Pick-up Device 753 (H) × 582 (V) pixels, Interline Transfer CCD Scanning Area 4.9 (H) × 3.6 (V) mm (Equivalent to scanning area of 1/3" pick-up tube) Scanning 625 lines / 50 fields / 25 frames Horizontal 15.625 kHz Vertical 50.00 Hz Synchronization Internal Sync / Line Lock / VD2 Video Output 1.0 V [p-p] PAL composite 75 Ω / BNC connector Horizontal Resolution 480 TV Line Signal-to-Noise Ratio 50 dB (AGC OFF, weight ON) Minimum Illumination 5 lx (0.5 footcandle) at WIDE end Lens Variable focal ALC lens: f 3.2 mm-f 6.4 mm ( Gain Control Selectable AGC ON or OFF (SETUP MENU) × 2), F1.6 (wide)-F1.9 (tele)Angular field of view:
Horizontal: 76.7 (wide)-41.5 (tele);
Vertical: 59.8 (wide)-31.9 (tele) White Balance Selectable ATW or AWC (SETUP MENU) Aperture Variable (SETUP MENU) Electronic Light Control Equivalent to continuously variable
shutter supplier speed between 1/50 second and 1/10 000 second Super-Dynamic Selectable On or Off (SETUP MENU) Electronic Shutter Speed Selectable 1/50 (OFF),1/120, 1/250, 1/500, 1/1 000, 1/ 2 000, 1/4 000, 1/10 000 second Ambient Operating Temperature –10°C – + 50°C(14°F – 122°F) Ambient Operating Humidity Less than 90 % Power Source 220-240 V AC 50 Hz, 4.6 W24 V AC 50 Hz, 4.6 W Dimensions ø121 × 143.5 mm
Unit : mm
Weights 1.2 kg 1.1 kg
STANDARD ACCESSORY
Camera Fixing Bracket ccccccccc 1
Weights and dimensions are approximate. Specifications are subject to change without notice. These products may be subject to export control regulations.
DISTRIBUTED BY:
Panasonic is the brandname of Matsushita Electric.
Printed in Japan[N-600]
