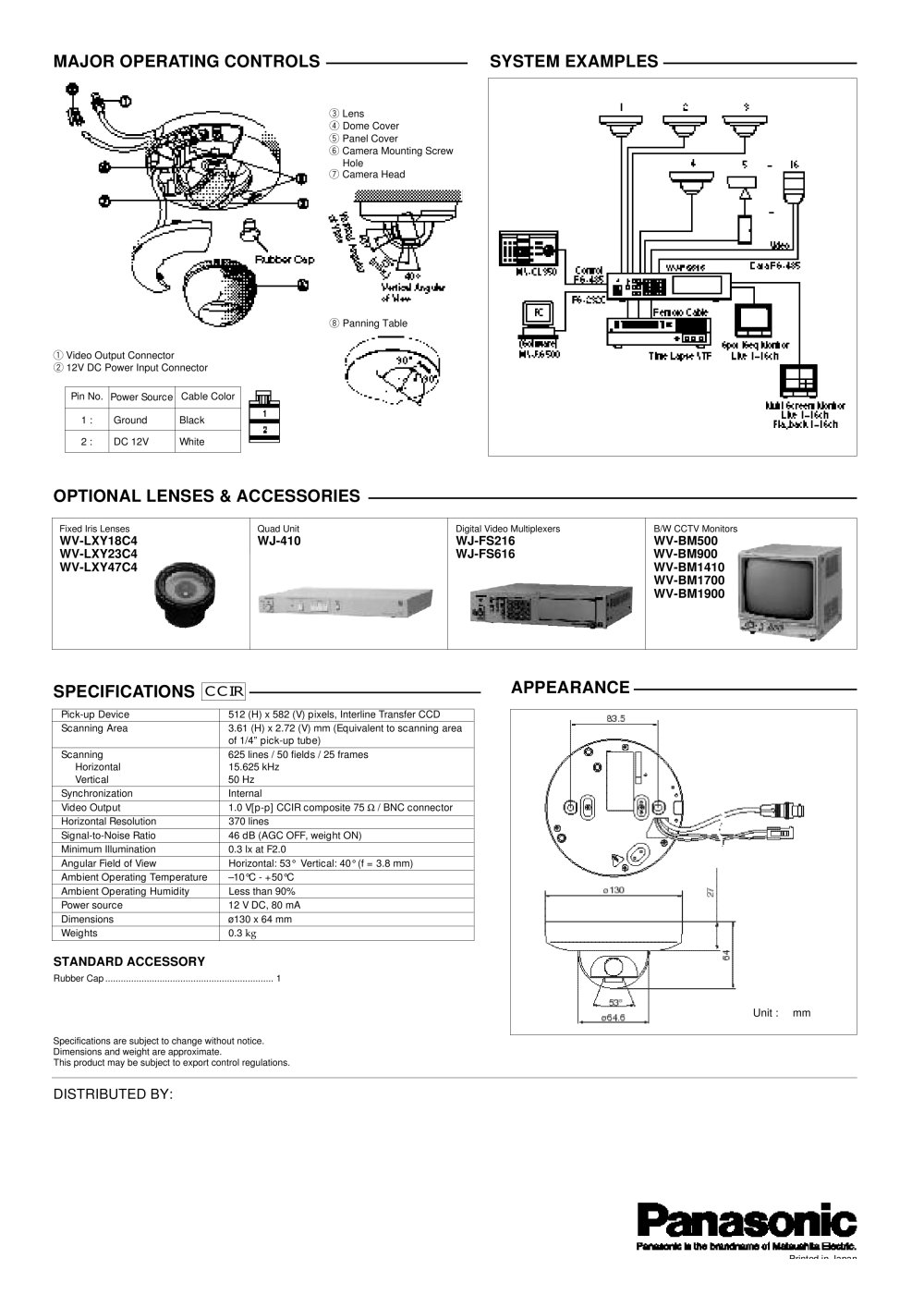

| | | MAJOR OPERATING CONTROLS | | SYSTEM EXAMPLES | | |
| | | |
| | | OPTIONAL LENSES & ACCESSORIES | | |
| | | |
| | | Fixed Iris Lenses WV-LXY18C4 WV-LXY23C4 WV-LXY47C4 | | Quad Unit WJ-410 | | Digital Video Multiplexers WJ-FS216 WJ-FS616 | | B/W CCTV Monitors WV-BM500 WV-BM900 WV-BM1410 WV-BM1700 WV-BM1900 | | |
| | | |
| | | |
| | | |
| | | |
| | | APPEARANCE | | |
| | | SPECIFICATIONS [cciR | | |
| | | |
| | | |
| | | | | | | | | | Pick-up Device | 512 (H) x 582 (V) pixels, Interline Transfer CCD | | | | Scanning Area | 3.61 (H) x 2.72 (V) mm (Equivalent to scanning area | | | | | of 1/4" pick-up tube) | | | | Scanning | 625 lines / 50 fields / 25 frames | | | | Horizontal | 15.625 kHz | | | | Vertical | 50 Hz | | | | Synchronization | Internal | | | | Video Output | 1.0 V[p-p] CCIR composite 75 n / BNC connector | | | | Horizontal Resolution | 370 lines | | | | Signal-to-Noise Ratio | 46 dB (AGC OFF, weight ON) | | | | Minimum Illumination | 0.3 lx at F2.0 | | | | Angular Field of View | Horizontal: 53° Vertical: 40°(f = 3.8 mm) | | | | Ambient Operating Temperature | -10C - +50°C | | | | Ambient Operating Humidity | Less than 90% | | | | Power source | 12 V DC, 80 mA | | | | Dimensions | 0130 x 64 mm | | | | Weights | 0.3 kg | | | | | | | | | |
| | | |
| | | STANDARD ACCESSORY Rubber Cap......................................... | | |
| | | |
| | | Specifications are subject to change without notice. Dimensions and weight are approximate. This product may be subject to export control regulations. | | |
| | | |
