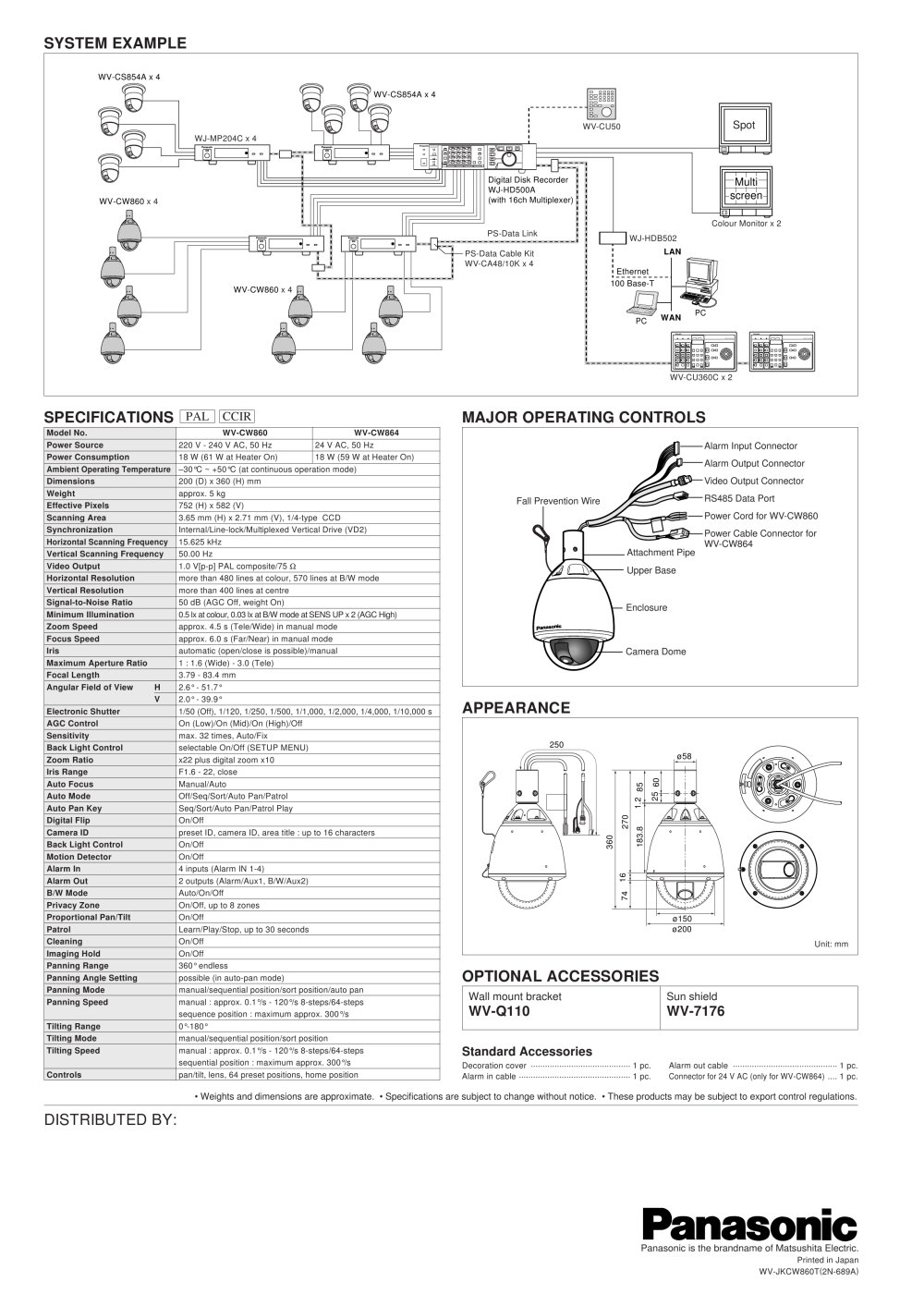

| | Model No. | WV-CW860 | WV-CW864 | |
| | Power Source | 220 V - 240 V AC, 50 Hz | 24 V AC, 50 Hz | |
| | Power Consumption | 18 W (61 W at Heater On) | 18 W (59 W at Heater On) | |
| | Ambient Operating Temperature | -30°C ~ +50°C (at continuous operation mode) | |
| | Dimensions | 200 (D) x 360 (H) mm | |
| | Weight | approx. 5 kg | |
| | Effective Pixels | 752 (H) x 582 (V) | |
| | Scanning Area | 3.65 mm (H) x 2.71 mm (V), 1/4-type CCD | |
| | Synchronization | Internal/Line-lock/Multiplexed Vertical Drive (VD2) | |
| | Horizontal Scanning Frequency | 15.625 kHz | |
| | Vertical Scanning Frequency | 50.00 Hz | |
| | Video Output | 1.0 V[p-p] PAL composite/75 Q | |
| | Horizontal Resolution | more than 480 lines at colour, 570 lines at B/W mode | |
| | Vertical Resolution | more than 400 lines at centre | |
| | Signal-to-Noise Ratio | 50 dB (AGC Off, weight On) | |
| | Minimum Illumination | 0.5 lx at colour, 0.03 lx at B/W mode at SENS UP x 2 (AGC High) | |
| | Zoom Speed | approx. 4.5 s (Tele/Wide) in manual mode | |
| | Focus Speed | approx. 6.0 s (Far/Near) in manual mode | |
| | Iris | automatic (open/close is possible)/manual | |
| | Maximum Aperture Ratio | 1 : 1.6 (Wide) - 3.0 (Tele) | |
| | Focal Length | 3.79 - 83.4 mm | |
| | Angular Field of View H | 2.6°- 51.7° | |
| | V | 2.0° - 39.9° | |
| | | 1/50 (Off), 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s | |
| | AGC Control | On (Low)/On (Mid)/On (High)/Off | |
| | Sensitivity | max. 32 times, Auto/Fix | |
| | Back Light Control | selectable On/Off (SETUP MENU) | |
| | Zoom Ratio | x22 plus digital zoom x10 | |
| | Iris Range | F1.6 - 22, close | |
| | Auto Focus | Manual/Auto | |
| | Auto Mode | Off/Seq/Sort/Auto Pan/Patrol | |
| | Auto Pan Key | Seq/Sort/Auto Pan/Patrol Play | |
| | Digital Flip | On/Off | |
| | Camera ID | preset ID, camera ID, area title : up to 16 characters | |
| | Back Light Control | On/Off | |
| | | On/Off | |
| | | 4 inputs (Alarm IN 1-4) | |
| | Alarm Out | 2 outputs (Alarm/Aux1, B/W/Aux2) | |
| | B/W Mode | Auto/On/Off | |
| | Privacy Zone | On/Off, up to 8 zones | |
| | Proportional Pan/Tilt | On/Off | |
| | Patrol | Learn/Play/Stop, up to 30 seconds | |
| | Cleaning | On/Off | |
| | Imaging Hold | On/Off | |
| | Panning Range | 360° endless | |
| | Panning Angle Setting | possible (in auto-pan mode) | |
| | Panning Mode | manual/sequential position/sort position/auto pan | |
| | Panning Speed | manual : approx. 0.1°/s - 120°/s 8-steps/64-steps sequence position : maximum approx. 300°/s | |
| | Tilting Range | 0°-180° | |
| | Tilting Mode | manual/sequential position/sort position | |
| | Tilting Speed | manual : approx. 0.1°/s - 120°/s 8-steps/64-steps sequential position : maximum approx. 300°/s | |
| | Controls | pan/tilt, lens, 64 preset positions, home position | |
| | | | | |
