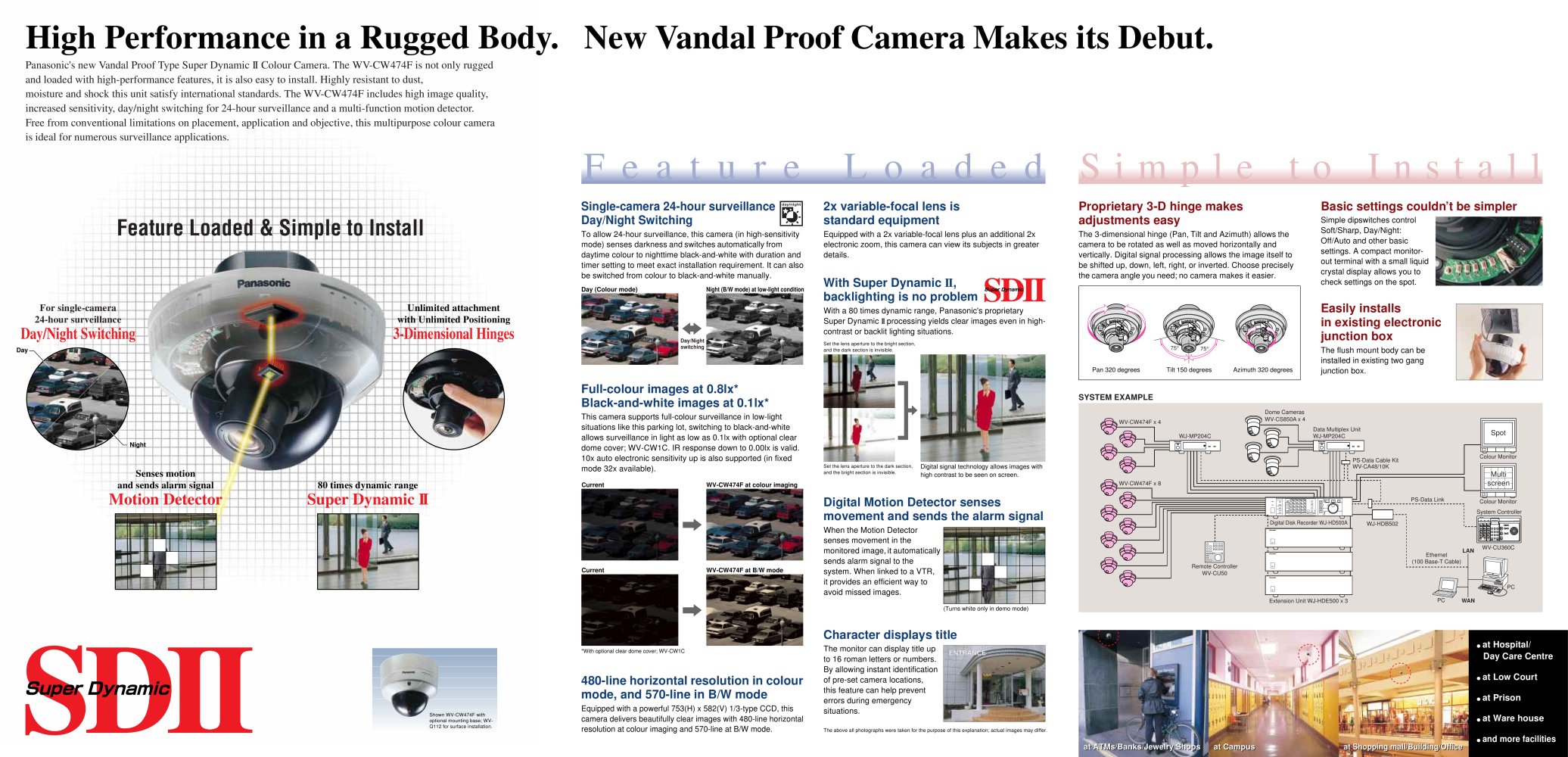

| | | High Performance in a Rugged Body. New Vandal Proof Camera Makes | | its Debut. | | |
| | | |
| | | |
| | | Panasonic's new Vandal Proof Type Super Dynamic II Colour Camera. The WV-CW474F is not only rugged and loaded with high-performance features, it is also easy to install. Highly resistant to dust, moisture and shock this unit satisfy international standards. The WV-CW474F includes high image quality, increased sensitivity, day/night switching for 24-hour surveillance and a multi-function motion design detector. Free from conventional limitations on placement, application and objective, this multipurpose colour camera is ideal for numerous surveillance applications. | | |
| | | |
| | | Single-camera 24-hour surveillance Day/Night Switching To allow 24-hour surveillance, this camera (in high-sensitivity mode) senses darkness and design switches automatically from daytime colour to nighttime black-and-white with duration and timer setting to meet exact installation requirement. It can also be switched from colour to black-and-white manually. Day (Colour mode)_ Night (B/W mode) at low-light condition | | 2x variable-focal lens is standard equipment Equipped with a 2x variable-focal lens plus an additional 2x electronic zoom, this camera can view its subjects in greater details. | | |
| | | Proprietary 3-D hinge makes adjustments easy The 3-dimensional hinge (Pan, Tilt and Azimuth) allows the camera to be rotated as well as moved horizontally and vertically. Digital signal processing allows the image itself to be shifted up, down, left, right, or inverted. Choose precisely the camera angle you need; no camera makes it easier. | | Basic settings couldn't be simpler Simple dipswitches control Soft/Sharp, Day/Night: Off/Auto and other basic settings. A compact monitor-out terminal with a small liquid crystal display allows you to check settings on the spot. | | |
| | | Feature Loaded & Simple to Install | | |
| | | |
| | | |
| | | SD] | | |
| | | With Super Dynamic II, backlighting is no problem | | |
| | | |
| | | |
| | | |
| | | |
| | | Easily installs in existing electronic junction box | | |
| | | For single-camera 24-hour surveillance Day/Night Switching Day | | Unlimited attachment with Unlimited Positioning 3-Dimensional Hinges tur" | | |
| | | With a 80 times dynamic range, Panasonic's proprietary Super Dynamic I processing yields clear images even in high-contrast or backlit lighting situations. | | |
| | | |
| | | Day/Night switching | | |
| | | Set the lens aperture to the bright section, and the dark section is invisible. | | |
| | | The flush mount body can be installed in existing two gang junction box. | | |
| | | |
| | | |
| | | |
| | | |
| | | |
| | | Full-colour images at 0.8lx* Black-and-white images at 0.1lx* This camera supports full-colour surveillance in low-light situations like this parking lot, switching to black-and-white allows surveillance in light as low as 0.1lx with optional clear dome cover; WV-CW1C. IR response down to 0.00lx is valid. 10x auto electronic sensitivity up is also supported (in fixed mode 32x available). | | |
| | | SYSTEM EXAMPLE | | |
| | | |
| | | Dome Cameras i WV-CS850A x 4 | | |
| | | «WV-CW474F x 4 | | |
| | | |
| | | |
| | | Data Multiplex Unit WJ-MP204C | | |
| | | Spot | | |
| | | WJ-MP204C 3= = | | |
| | | |
| | | |
| | | | | I5IL" | | |
| | | ~r~r | | |
| | | | |
| | | |
| | | |
| | | Colour Monitor | | |
| | | PS-Data Cable Kit WV-CA48/10K | | |
| | | |
| | | Set the lens aperture to the dark section, and the bright section is invisible. | | |
| | | Digital signal technology allows images with high contrast to be seen on screen. | | |
| | | |
| | | Motion Detector | | |
| | | -Multi" | | |
| | | |
| | | |
| | | |
| | | |
| | | -screen- | | |
| | | \ WV-CW474F x 8 | | |
| | | times dynamic range Super Dynamic II | | |
| | | Current | | WV-CW474F at colour imaging | | |
| | | |
| | | |
| | | |
| | | |
| | | ~r~r | | |
| | | |
| | | Digital Motion Detector senses movement and sends the alarm signal | | PS-Data Link | | |
| | | -0-- | | |
| | | Colour Monitor System Controller | | |
| | | |
| | | 2 4* | | |
| | | |
| | | |
| | | |
| | | |
| | | | | |
| | | |
| | | | | |
| | | Digital Disk Recorder WJ-HD500A | | |
| | | WJ-HDB502 | | |
| | | |
| | | |
| | | | | |
| | | When the Motion Detector senses movement in the monitored image, it automatically sends alarm signal to the system. When linked to a VTR, it provides an efficient way to avoid missed images. | | |
| | | WV-CU360C | | |
| | | LAN | | |
| | | |
| | | |
| | | |
| | | Ethernet (100 Base-T Cable) | | |
| | | Remote Controller WV-CU50 | | |
| | | |
| | | |
| | | PC | | |
| | | |
| | | |
| | | |
| | | PC | | |
| | | WAN | | |
| | | Extension Unit WJ-HDE500 x 3 | | |
| | | |
| | | |
| | | |
| | | |
| | | (Turns white only in demo mode) Character displays title The monitor can display title up to 16 roman letters or numbers. By allowing instant identification of pre-set camera locations, this feature can help prevent errors during emergency situations. The above all photographs were taken for the purpose of this explanation; actual images may differ. | | |
| | | sen | | |
| | | *With optional clear dome cover; WV-CW1C 480-line horizontal resolution in colour mode, and 570-line in B/W mode Equipped with a powerful 753(H) x 582(V) 1/3-type CCD, this camera delivers beautifully clear images with 480-line horizontal resolution at colour imaging and 570-line at B/W mode. | | |
| | | Shown WV-CW474F with | | |
| | | |
| | | optional mounting base; WV-Q112 for surface installation. | | |
| | | |
| | | |
| | | |
| | | |
| | | at ATMs/Banks | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
