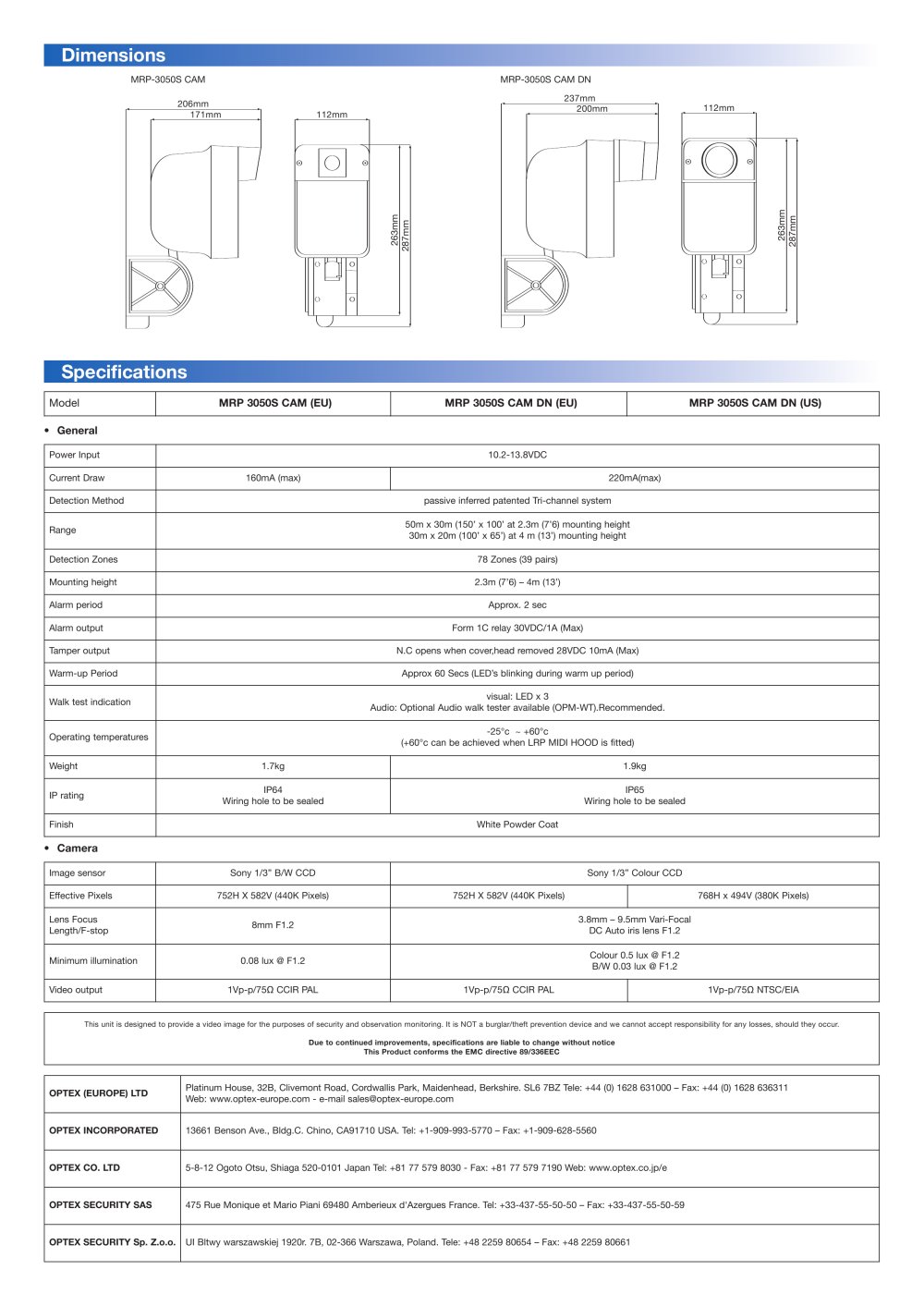

Dimensions
MRP-3050S CAMMRP-3050S CAM DN
206mm171mm112mm 237mm200mm112mm 263mm287mm 263mm287mm Specifications
Model MRP 3050S CAM (EU) MRP 3050S CAM DN (EU) MRP3050S CAM DN (US) •General
•Camera
Power Input10.2-13.8VDCCurrent Draw160mA (max)220mA(max)Detection Method passive inferred patented Tri-channel systemRange50m x 30m (150’ x 100’ at 2.3m (7’6) mounting height30m x 20m (100’ x 65’) at 4 m (13’) mounting heightDetection Zones78Zones (39 pairs)Mounting height2.3m(7’6) – 4m (13’)Alarm periodApprox. 2 secAlarm outputForm 1C relay 30VDC/1A (Max)Tamper outputN.C opens when cover,head removed 28VDC 10mA (Max)
Warm-up PeriodApprox 60 Secs (LED’s blinking during warm up period)Walk test indicationvisual: LED x 3 Audio: Optional Audio walk tester available (OPM-WT).Recommended.Operating temperatures-25°c ~ +60°c (+60°c can be achieved when LRP MIDI HOOD is fitted)Weight1.7kg1.9kgIP ratingIP64Wiring hole to be sealedIP65Wiring hole to be sealedFinishWhitePowder Coat Image sensor Sony 1/3” B/W CCD Sony 1/3” Colour CCD Effective Pixels 752H X 582V (440K Pixels) 752H X 582V (440K Pixels) 768H x 494V (380K Pixels) Lens Focus Length/F-stop 8mm F1.2 3.8mm – 9.5mm Vari-FocalDC Auto iris lens F1.2 Minimum illumination 0.08 lux @ F1.2 Colour 0.5 lux @ F1.2B/W 0.03 lux @ F1.2 Video output 1Vp-p/75 Ω CCIR PAL 1Vp-p/75 Ω CCIR PAL 1Vp-p/75 Ω NTSC/EIA
This unit is designed to provide a video image for the purposes of security and observation monitoring. It is NOT a burglar/theft prevention device and we cannot accept responsibility for any losses, should they occur. Due to continued improvements, specifications are liable to change without noticeThis Product conforms the EMC directive 89/336EEC OPTEX (EUROPE) LTD Platinum House, 32B, Clivemont Road, Cordwallis Park, Maidenhead, Berkshire. SL6 7BZ Tele: +44 (0) 1628 631000 – Fax: +44 (0) 1628 636311Web: www.optex-europe.com - e-mail sales@optex-europe.com OPTEX INCORPORATED 13661 Benson Ave., Bldg.C. Chino, CA91710 USA. Tel: +1-909-993-5770 – Fax: +1-909-628-5560 OPTEX CO. LTD 5-8-12 Ogoto Otsu, Shiaga 520-0101 Japan Tel: +81 77 579 8030 - Fax: +81 77 579 7190 Web: www.optex.co.jp/e OPTEX SECURITY SAS 475 Rue Monique et Mario Piani 69480 Amberieux d'Azergues France. Tel: +33-437-55-50-50 – Fax: +33-437-55-50-59 OPTEX SECURITY Sp. Z.o.o. UI Bltwy warszawskiej 1920r.7B, 02-366 Warszawa, Poland. Tele: +48 2259 80654 – Fax: +48 2259 80661
