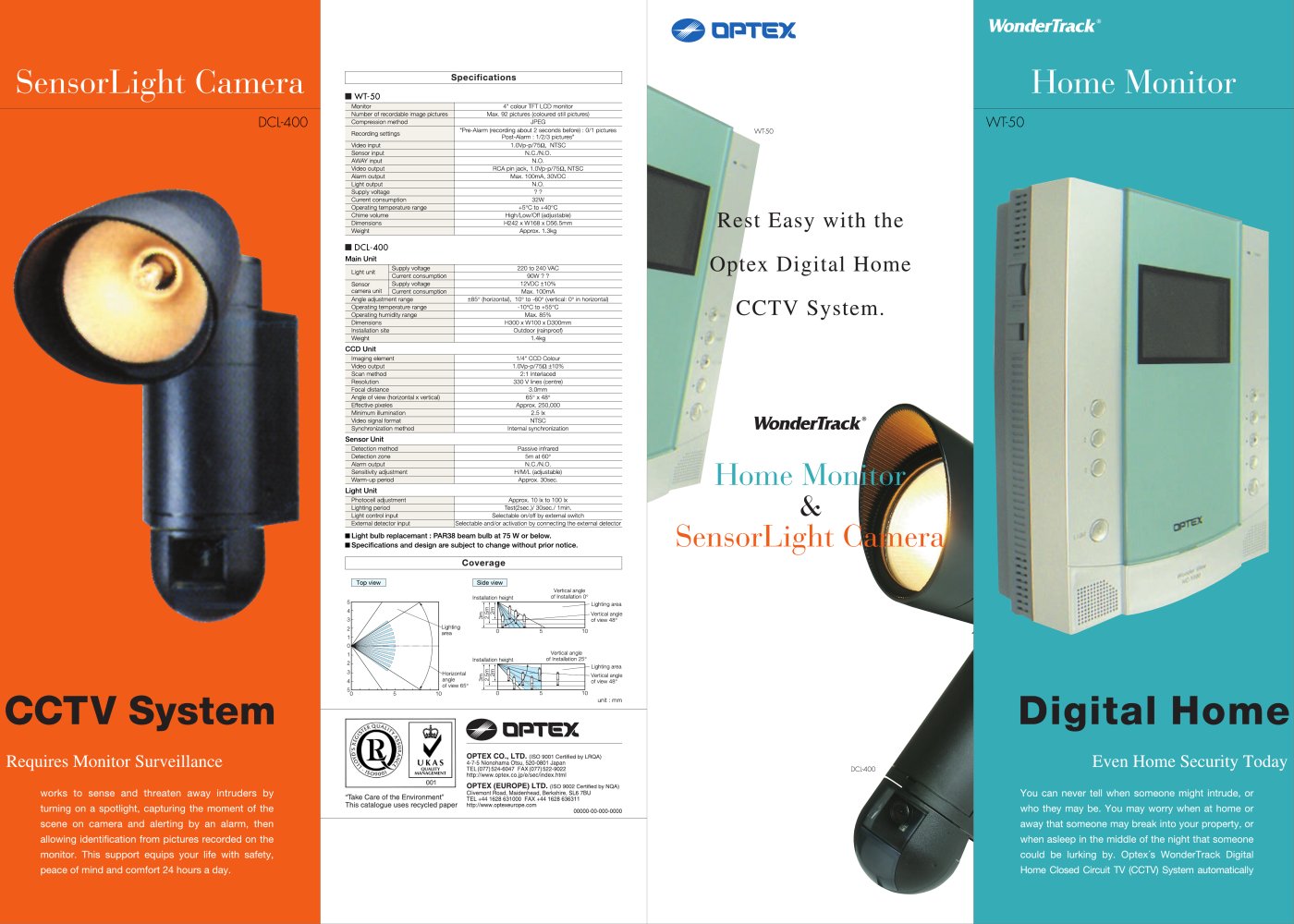

| | | WonderTrack' | | |
| | | |
| | | íensorLight Camera | | |
| | | Home Monito | | |
| | | | | | | | | | | ■ WT-50 | | | | Monitor | 4" colour TFT LCD monitor | | | | Number of recordable image pictures | Max. 92 pictures (coloured still pictures) | | | | Compression method | JPEG | | | | Recording settings | "Pre-Alarm (recording about 2 seconds before): 0/1 pictures Post-Alarm: 1/2/3 pictures" | | | | Video input | 1.0Vp-p/75Q, NTSC | | | | Sensor input | N.C./N.O. | | | | AWAY input | N.O. | | | | Video output | RCA pin jack, 1.0Vp-p/75n, NTSC | | | | Alarm output | Max. 100mA, 30VDC | | | | Light output | N.O. | | | | Supply voltage | ? ? | | | | Current consumption | 32W | | | | Operating temperature range | +5°C to +40°C | | | | Chime volume | High/Low/Off (adjustable) | | | | Dimensions | H242xW168xD56.5mm | | | | Weight | Approx. 1.3kg | | | | ■ DCL-400 Main Unit | | | | Light unit | Supply voltage | 220 to 240 VAC | | | | Current consumption | 90W?? | | | | Sensor camera unit | Supply voltage | 12VDC±10% | | | | Current consumption | Max. 100mA | | | | Angle adjustment range | ±85° (horizontal), 10° to -60° (vertical: 0° in horizontal) | | | | Operating temperature range | -10°C to +55°C | | | | Operating humidity range | Max. 85% | | | | Dimensions | H300xW100xD300mm | | | | Installation site | Outdoor (rainproof) | | | | Weight | 1.4kg | | | | CCD Unit | | | | Imaging element | 1/4" CCD Colour | | | | Video output | 1.0Vp-p/75£i ±10% | | | | Scan method | 2:1 Interlaced | | | | Resolution | 330 V lines (centre) | | | | Focal distance | 3.0mm | | | | Angle of view (horizontal x vertical) | 65° x 48° | | | | Effective pixeles | Approx. 250,000 | | | | Minimum illumination | 2.5 Ix | | | | video signal format | NTSC | | | | Synchronization method | Internal synchronization | | | | Sensor Unit | | | | Detection method | Passive infrared | | | | Detection zone | 5m at 60° | | | | Alarm output | N.C./N.O. | | | | Sensitivity adjustment | H/M/L (adjustable) | | | | Warm-up period | Approx. 30sec. | | | | Light Unit | | | | Photocell adjustment | Approx. 10lxto100lx | | | | Lighting period | Test(2sec.)/ 30sec./1 min. | | | | Light control input | Selectable on/off by external switch | | | | External detector input | Selectable and/or activation by connecting the external detector | | | | | | | | | | |
| | | |
| | | |
| | | VVT-50 | | |
| | | DCL-400 | | |
| | | |
| | | |
| | | WT-50 | | |
| | | |
| | | Rest Easy with the Optex Digital Home ^^■CCTV System. | | |
| | | |
| | | WonderTrack | | |
| | | |
| | | Pp Home Mori & J SensorLight | | |
| | | |
| | | I Light bulb replacemant: PAR38 beam bulb at 75 W or below. I Specifications and design are subject to change without prior notice. Coverage | | |
| | | |
| | | |
| | | Top view | | |
| | | |
| | | -Ughting | | |
| | | |
| | | Vertical angle of Installation 25° | | |
| | | Installation height | | |
| | | |
| | | |
| | | Lighting area | | |
| | | |
| | | CCTV System | | |
| | | Digital Home | | |
| | | | | | | | | | | U K A S QUALITY MANAGEMENT | | | | | 001 | | | | | | | | | |
| | | □PTEX | | |
| | | | |
| | | |
| | | OPTEX CO., LTD. (ISO 9001 Certified by LRQA) 4-7-5 Nionohama Otsu, 520-0601 Japan TEL (077) 524-6047 FAX (077) 522-9022 http://www.optex.co.jrVe/secrfndex.htnil OPTEX (EUROPE) LTD. (ISO 9002 Certified by NQA) Clivemont Road, Maidenhead, Berkshire, SL6 7BU TEL +44 1628 631000 FAX +44 1628 636311 http://www.optexeurope.corn 00000-00-000-0000 | | |
| | | Requires Monitor Surveillance works to sense and threaten away intruders by turning on a spotlight, capturing the moment of the scene on camera and alerting by an alarm, then allowing identification from pictures recorded on the monitor. This support equips your life with safety, peace of mind and comfort 24 hours a day. | | | | | |
| | | DCL-400 | | |
| | | |
| | | |
| | | |
| | | You can never tell when someone might intrude, or who they may be. You may worry when at home or away that someone may break into your property, or when asleep in the middle of the night that someone could be lurking by. Optexs WonderTrack Digital Home Closed Circuit TV (CCTV) System automatically | | |
