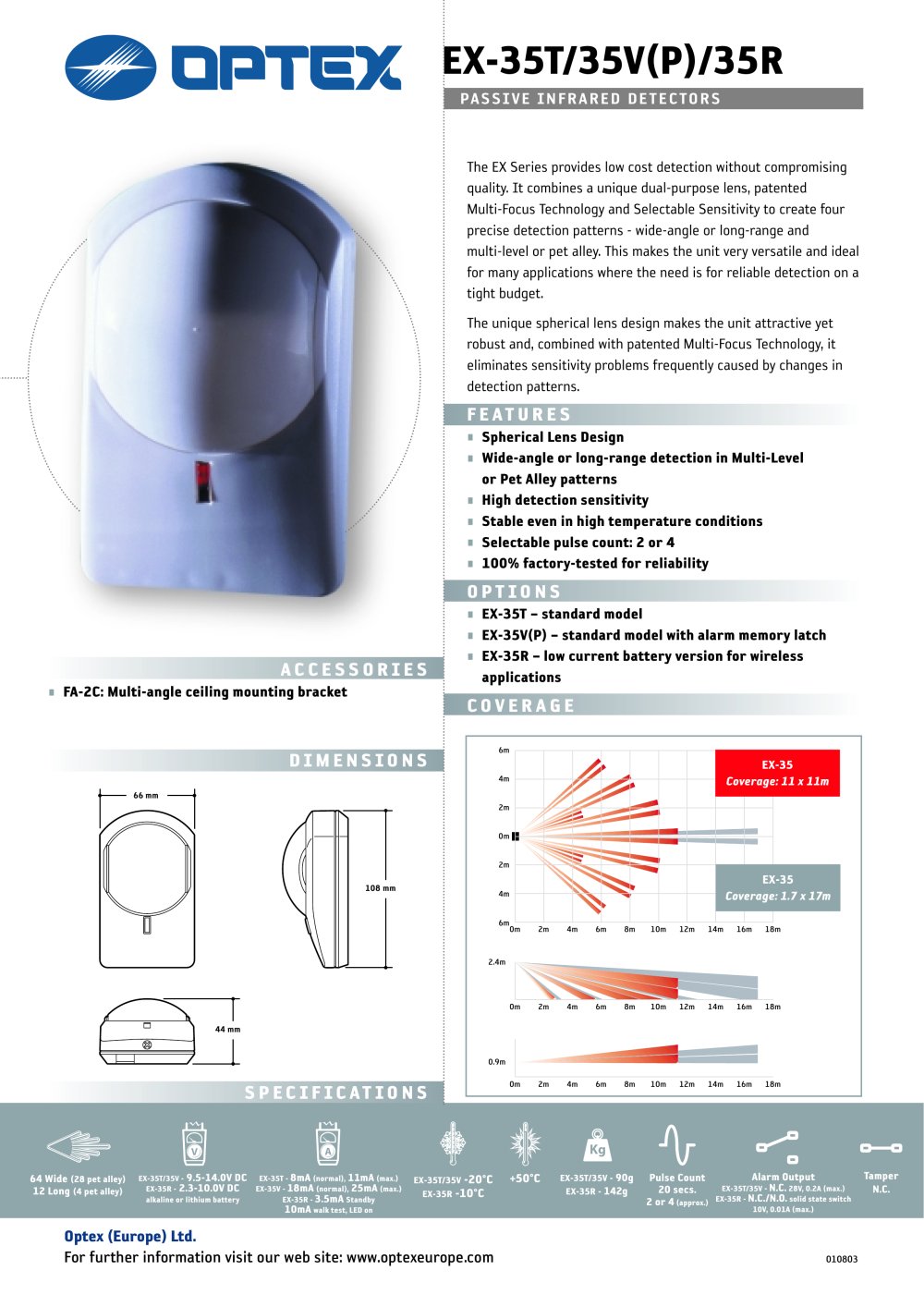

EX-35T/35V(P)/35R
□PTEX
PASSIVE INFRARED DETECTORS
The EX Series provides low cost detection without compromising quality. It combines a unique dual-purpose lens, patented Multi-Focus Technology and Selectable Sensitivity to create four precise detection patterns - wide-angle or long-range and multi-level or pet alley. This makes the unit very versatile and ideal for many applications where the need is for reliable detection on a tight budget.
The unique spherical lens design makes the unit attractive yet robust and, combined with patented Multi-Focus Technology, it eliminates sensitivity problems frequently caused by changes in detection patterns.
■ Spherical Lens Design
■ Wide-angle or long-range detection in Multi-Level or Pet Alley patterns
^ High detection sensitivity
^ Stable even in high temperature conditions
^ Selectable pulse count: 2 or 4
^ 100% factory-tested for reliability
OPTIONS ^^^^^^^^^B
^ EX-35T - standard model
^ EX-35V(P) - standard model with alarm memory latch ^ EX-35R - low current battery version for wireless applications
COVERAGE ^^^^^^B
■ FA-2C: Multi-angle ceiling mounting bracket
6m
EX-35 Coverage: 11 x 11m
If.
»
EX-35
Coverage: 1.7 x 17m
4m
2m
0m
2m
4m
0m 2m 4m 6m 8m 10m 12m 14m 16m 18 m
2.4m
0m 2m 4m 6m 8m 10m 12m 14m 16m 18m
0.9m
0m
2m
4m
6m
8m
10m 12m 14m 16m 18m
SPECIFICATIONS
04 wide (¿8 pet aiiey) 12 Long (4 pet alley)
cx-351 - uiiiA (normal), 11mA (max.) EX-35V - 18mA (normal), 25mA (max.) EX-35R - 3.5mA Standby 10mA walk test, LED on
EX-35T/35V -20 C EX-35R -10°C
+50 C
EX-35I/35V - 90g
EX-35R - 142g
EX-35T/35V - N.C. 28V, 0.2A (max.) NX.
EX-35R - N.C./N.O. solid state switch 10V, 0.01A (max.)
EX-35R -2.3-10.0V DC alkaline or lithium battery
20 secs.
2 or 4 (approx.)
Optex (Europe) Ltd.
For further information visit our web site: www.optexeurope.com
010803
