Stand
|
OMVIVO SPECIFICATION CATALOGUE - 136 Pages
edition two
Note: due to varying manufacturing methods, the dimensions illustrated here are nominal and subject to change.
Omvivo has detailed, to the best of its ability, the most approximate measurement possible for each product
given the method of manufacturing used.
Omvivo Pty Ltd Schiavello Complex T: + 61 3 9339 8130
1 Sharps Road Tullamarine F: + 61 3 9330 8611
Victoria Australia 3043 info@omvivo.com www.omvivo.com

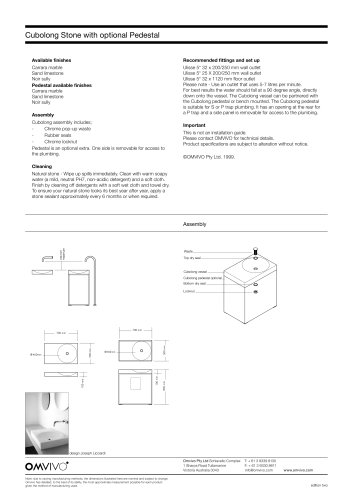

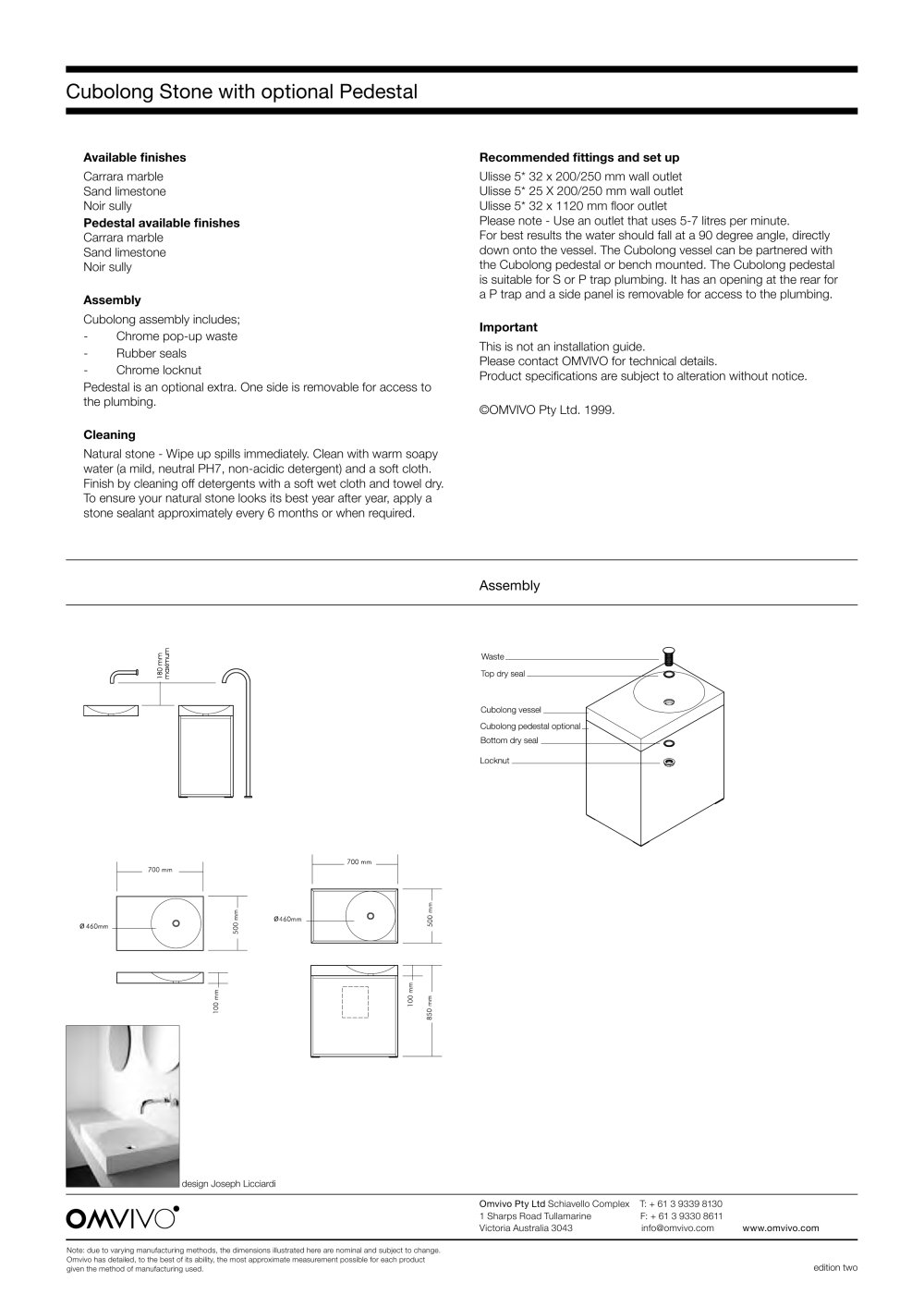

Cubolong Stone with optional Pedestal
Available finishes
Carrara marble
Sand limestone
Noir sully
Pedestal available finishes
Carrara marble
Sand limestone
Noir sully
Assembly
Cubolong assembly includes;
- C hrome pop-up waste
- R ubber seals
- C hrome locknut
Pedestal is an optional extra. One side is removable for access to
the plumbing.
Cleaning
Natural stone - Wipe up spills immediately. Clean with warm soapy
water (a mild, neutral PH7, non-acidic detergent) and a soft cloth.
Finish by cleaning off detergents with a soft wet cloth and towel dry.
To ensure your natural stone looks its best year after year, apply a
stone sealant approximately every 6 months or when required.
Recommended fittings and set up
Ulisse 5* 32 x 200/250 mm wall outlet
Ulisse 5* 25 X 200/250 mm wall outlet
Ulisse 5* 32 x 1120 mm floor outlet
Please note - Use an outlet that uses 5-7 litres per minute.
For best results the water should fall at a 90 degree angle, directly
down onto the vessel. The Cubolong vessel can be partnered with
the Cubolong pedestal or bench mounted. The Cubolong pedestal
is suitable for S or P trap plumbing. It has an opening at the rear for
a P trap and a side panel is removable for access to the plumbing.
Important
This is not an installation guide.
Please contact OMVIVO for technical details.
Product specifications are subject to alteration without notice.
©OMVIVO Pty Ltd. 1999.
