OMVIVO SPECIFICATION CATALOGUE - 136 Pages
design Joseph Licciardi
edition two
Note: due to varying manufacturing methods, the dimensions illustrated here are nominal and subject to change.
Omvivo has detailed, to the best of its ability, the most approximate measurement possible for each product
given the method of manufacturing used.
Omvivo Pty Ltd Schiavello Complex T: + 61 3 9339 8130
1 Sharps Road Tullamarine F: + 61 3 9330 8611
Victoria Australia 3043 info@omvivo.com www.omvivo.com

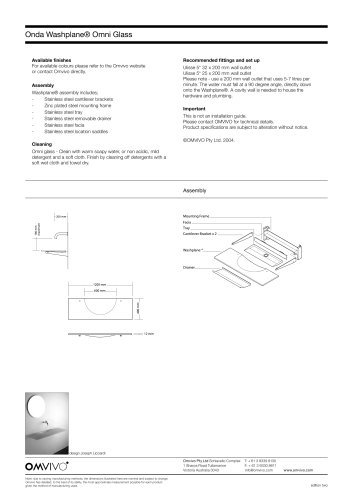

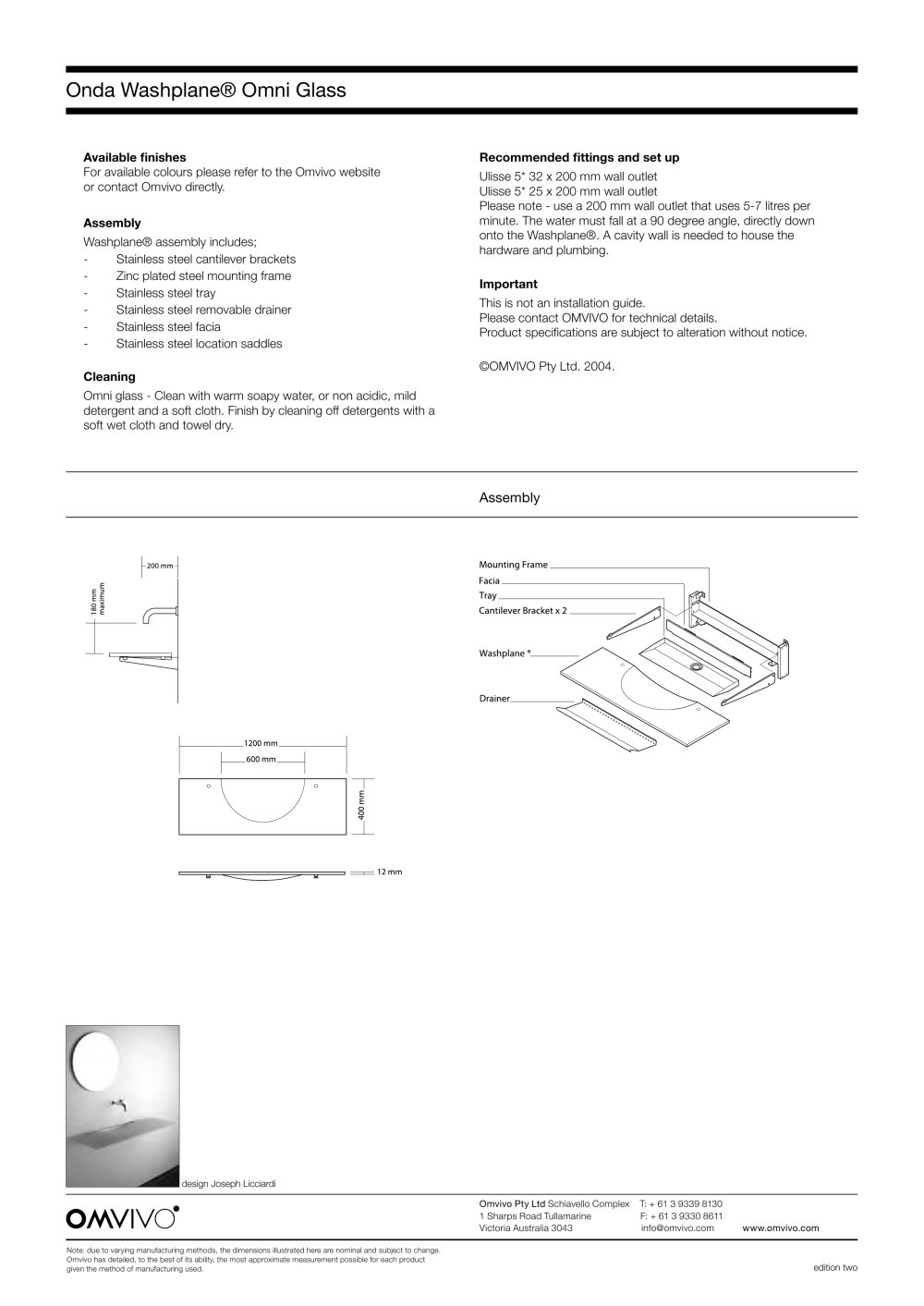

Onda Washplane® Omni Glass
Available finishes
For available colours please refer to the Omvivo website
or contact Omvivo directly.
Assembly
Washplane® assembly includes;
- S tainless steel cantilever brackets
- Zinc plated steel mounting frame
- S tainless steel tray
- S tainless steel removable drainer
- S tainless steel facia
- S tainless steel location saddles
Cleaning
Omni glass - Clean with warm soapy water, or non acidic, mild
detergent and a soft cloth. Finish by cleaning off detergents with a
soft wet cloth and towel dry.
Recommended fittings and set up
Ulisse 5* 32 x 200 mm wall outlet
Ulisse 5* 25 x 200 mm wall outlet
Please note - use a 200 mm wall outlet that uses 5-7 litres per
minute. The water must fall at a 90 degree angle, directly down
onto the Washplane®. A cavity wall is needed to house the
hardware and plumbing.
Important
This is not an installation guide.
Please contact OMVIVO for technical details.
Product specifications are subject to alteration without notice.
©OMVIVO Pty Ltd. 2004.
Assembly
-
