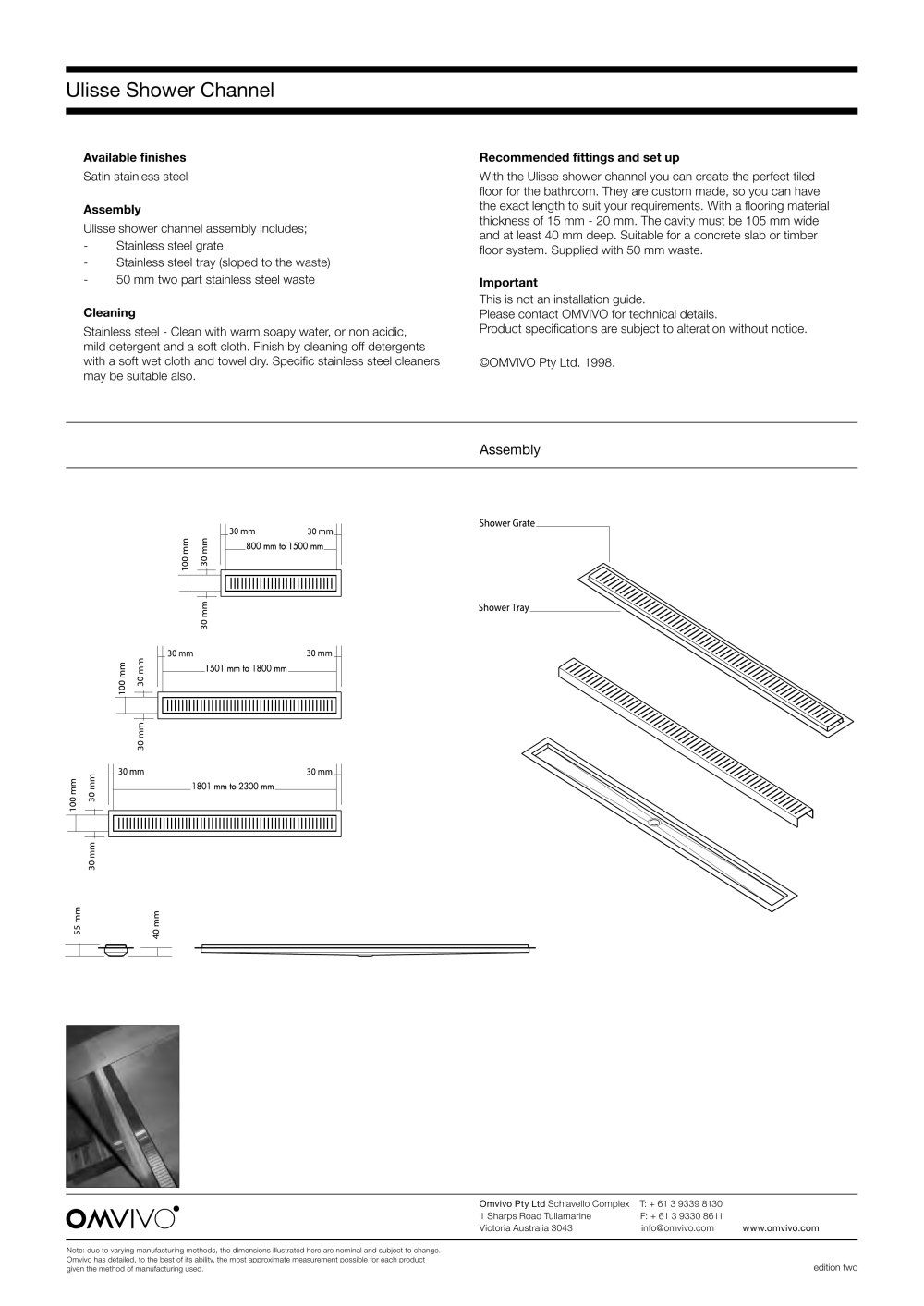

Ulisse Shower Channel
Available finishes
Satin stainless steel
Assembly
Ulisse shower channel assembly includes;
- S tainless steel grate
- S tainless steel tray (sloped to the waste)
- 50 mm two part stainless steel waste
Cleaning
Stainless steel - Clean with warm soapy water, or non acidic,
mild detergent and a soft cloth. Finish by cleaning off detergents
with a soft wet cloth and towel dry. Specific stainless steel cleaners
may be suitable also.
Recommended fittings and set up
With the Ulisse shower channel you can create the perfect tiled
floor for the bathroom. They are custom made, so you can have
the exact length to suit your requirements. With a flooring material
thickness of 15 mm - 20 mm. The cavity must be 105 mm wide
and at least 40 mm deep. Suitable for a concrete slab or timber
floor system. Supplied with 50 mm waste.
Important
This is not an installation guide.
Please contact OMVIVO for technical details.
Product specifications are subject to alteration without notice.
©OMVIVO Pty Ltd. 1998.
Assembly
-
