Sento ceiling lamp CDM - 4 Pages

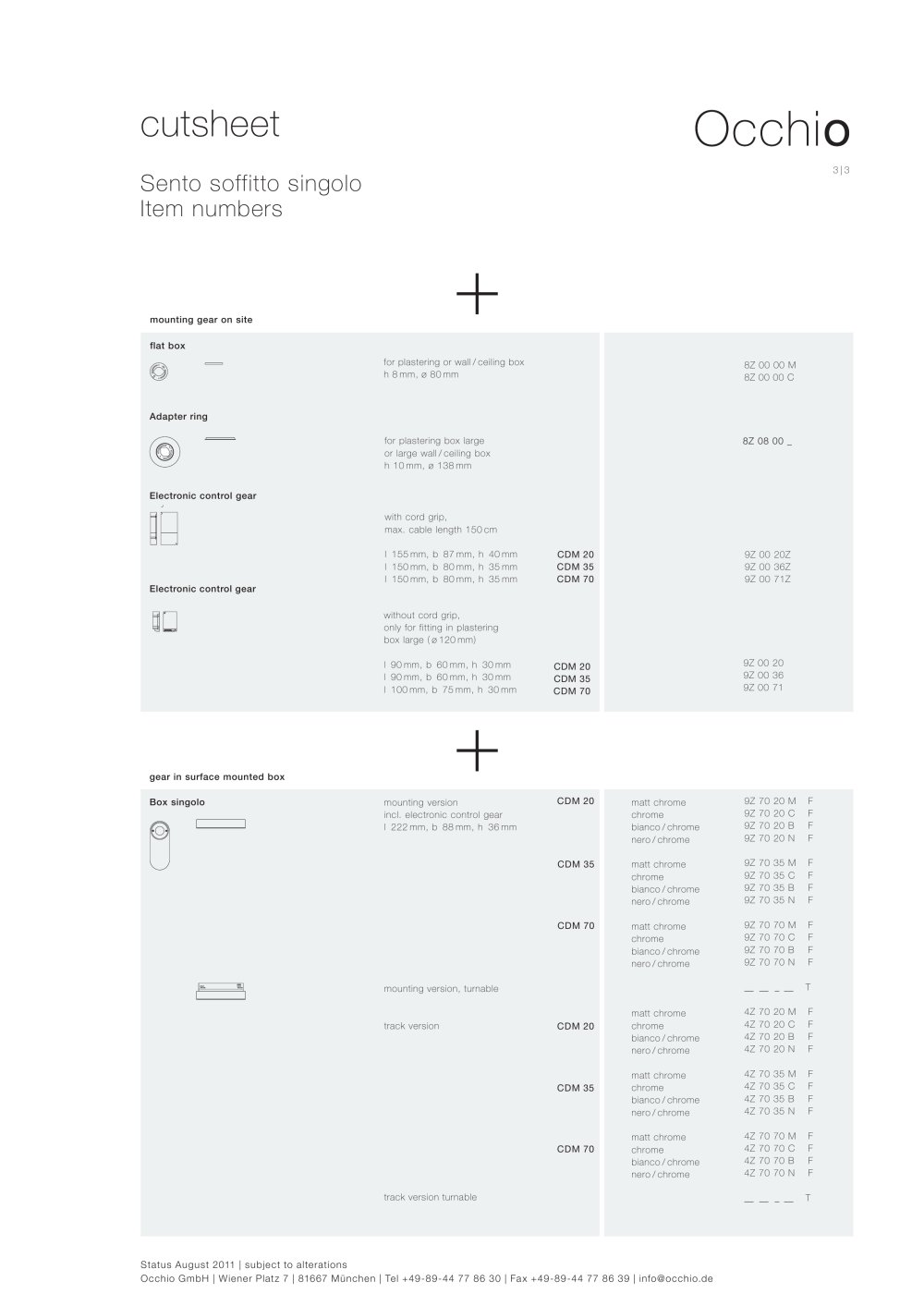

cutsheet
Occhio
Sento soffitto singolo
Item numbers
3 ; 3
mounting gear on site
flat box
for plastering or wall/celling box
h 8mm, 0 80mm
8Z 00 00 M
8Z 00 00 C
Adapter ring
for plastering box large
or large wall/celling box
h 10mm, 0 138mm
8Z 08 00 .
Electronic control gear
Electronic control gear
with cord grip,
max, cable length 150 cm
I 155mm, b 87mm, h 40mm
I 150mm, b 80mm, h 35mm
I 150mm, b 80mm, h 35mm
without cord grip,
only for fitting In plastering
box large (0120mm)
90mm, b 60mm, h 30mm
I 90mm, b 60mm, h 30mm
I 100mm, b 75mm, h 30mm
CDM 20
CDM 35
CDM 70
CDM 20
CDM 35
CDM 70
9Z 00 20Z
9Z 00 36Z
9Z 00 71Z
9Z 00 20
9Z 00 36
9Z 00 71
gear in surface mounted box
Box singolo
mounting version
Incl. electronic control gear
222mm, b 88mm, h 36mm
CDM 20
CDM 35
CDM 70
matt chrome
chrome
bianco/chrome
nero/chrome
matt chrome
chrome
bianco/chrome
nero/chrome
matt chrome
chrome
bianco/chrome
nero/chrome
mounting version, tumable
9Z 70 20 M F
9Z 70 20 C F
9Z 70 20 B F
9Z 70 20 N F
9Z 70 35 M F
9Z 70 35 C F
9Z 70 35 B F
9Z 70 35 N F
9Z 70 70 M F
9Z 70 70 C F
9Z 70 70 B F
9Z 70 70 N F
____T
track version
CDM 20
CDM 35
CDM 70
matt chrome
chrome
bianco /chrome
nero/chrome
matt chrome
chrome
bianco/chrome
nero/chrome
matt chrome
chrome
bianco/chrome
nero/chrome
4Z 70 20 M F
4Z 70 20 C F
4Z 70 20 B F
4Z 70 20 N F
4Z 70 35 M F
4Z 70 35 C F
4Z 70 35 B F
4Z 70 35 N F
4Z 70 70 M F
4Z 70 70 C F
4Z 70 70 B F
4Z 70 70 N F
track version turnable
Status August 2011 | subject to alterations
Occhio GmbH I Wiener Platz 7 | 81667 München | Tel +49-89-44 77 86 30 | Fax +49-89-44 77 86 39 | info@occhio.de
-
