MATERIAL
Combination of two layers
of Basotect (BASF) melamine
foam separated by an
EPDM layer (5,5 kg/m2),
Isotek Gum Foam especially
absorbs medium and low
frequencies (100÷2000 Hz).
Resistant to temperatures
from - 60 °C to + 150 °C. In
the event of fire this product
doesn't drip, its smokes are
non toxic and it doesn't produce
fibres.
COMPOSITION
STANDARD
DIMENSIONS:
Width:mm 1200
Length: mm 600
Thickness:mm 50
Other size on request.
Size tolerance to DIN 7715
standard, Part 2.
FIRE REACTION
Class 1 to CSE RF/2/75/A
and CSE RF 3/77.
ONORM B3800: DIN 4102
B1
Q1: low smoke emission.
T1: non drip.
SOUNDPROOFING
BASOTECT (BASF)
PROFILED MELAMINE
FOAM PANEL
WITH INTERMEDIATE
EPDM LAYER
50

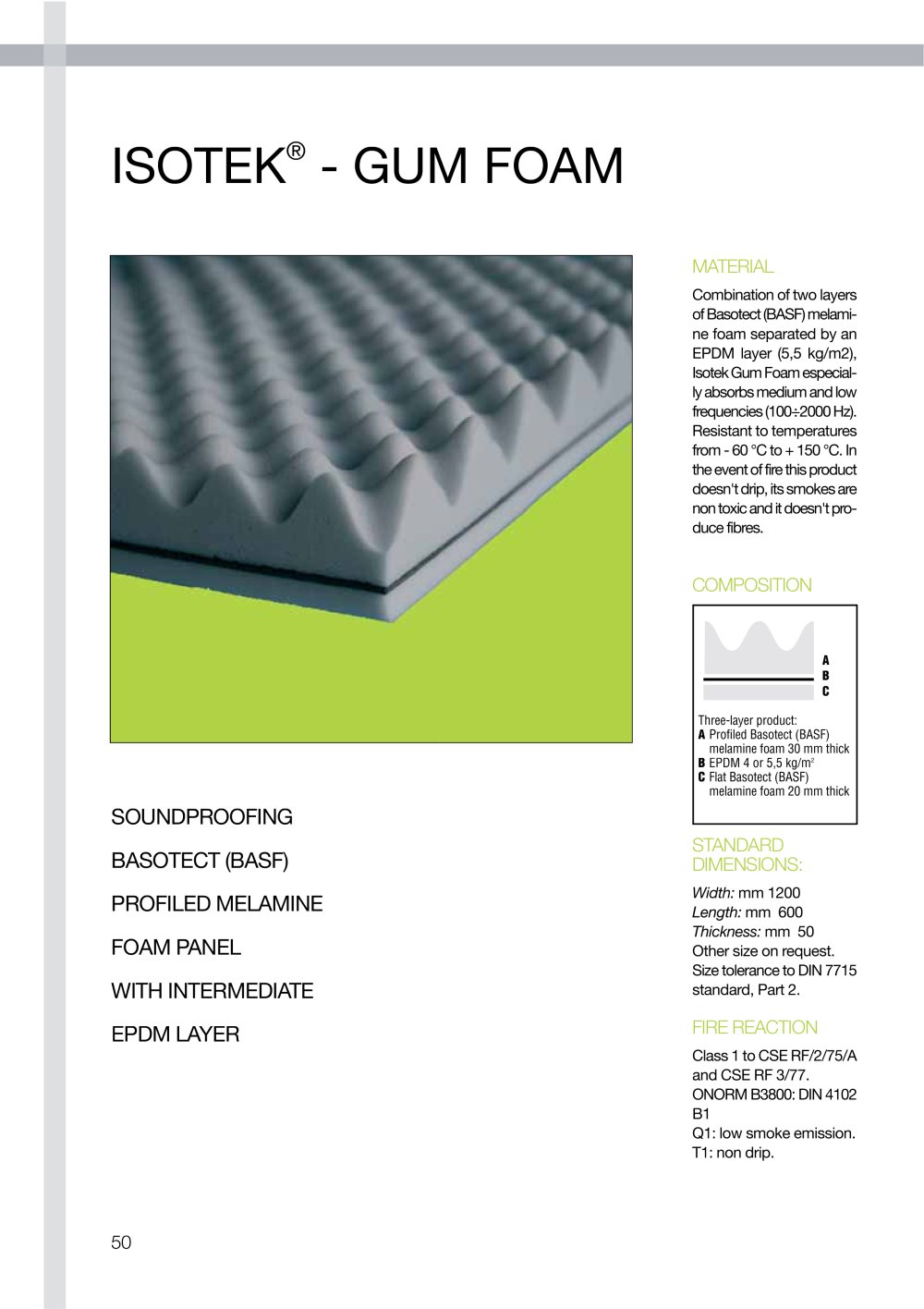

ISOTEK® - GUM FOAM
Three-layer product:
A Profiled Basotect (BASF)
melamine foam 30 mm thick
B EPDM 4 or 5,5 kg/m2
C Flat Basotect (BASF)
melamine foam 20 mm thick
ABC
