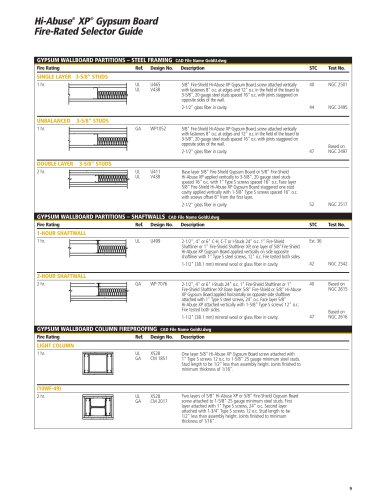

| Hi-Abuse® XP® Gypsum Board Fire-Rated Selector Guide | |||||||
| GYPSUM WALLBOARD PARTITIONS - STEEL FRAMING cad File Name GoldU.dwg | |||||||
| Fire Rating | Ref. Design No. Description | STC | Test No. | ||||
| SINGLE LAYER 3-5/8" STUDS | |||||||
| 1 hr. | UL U465 5/8" Fire-Shield Hi-Abuse XP Gypsum Board, screw attached vertically UL V438 with fasteners 8" o.c. at edges and 12" o.c. in the field of the board to 3-5/8", 20 gauge steel studs spaced 16" o.c. with joints staggered on opposite sides of the wall. 2-1/2" glass f ber n cav ty. | 40 | NGC 2501 | ||||
| 44 | NGC 2495 | ||||||
| UNBALANCED 3-5/8" STUDS | |||||||
| 1 hr. | GA WP1052 5/8" Fire-Shield Hi-Abuse XP Gypsum Board, screw attached vertically with fasteners 8" o.c. at edges and 12" o.c. in the field of the board to 3-5/8", 20 gauge steel studs spaced 16" o.c. with joints staggered on opposite sides ofthe wall. 2-1/2" glass fiber in cavity. | 47 | Based on NGC 2497 | ||||
| DOUBLE LAYER 3-5/8" STUDS | |||||||
| 2 hr. | UL U411 Base layer 5/8" Fire-Shield Gypsum Board or 5/8" Fire-Shield UL V438 Hi-Abuse XP applied vertically to 3-5/8", 20 gauge steel studs spaced 16" o.c. with 1" Type S screws spaced 16" o.c. Face layer 5/8" Fire-Shield Hi-Abuse XP Gypsum Board staggered one stud cavity applied vertically with 1-5/8" Type S screws spaced 16" o.c. with screws offset 8" from the first layer. 2-1/2" glass fiber in cavity. | 52 | NGC 2517 | ||||
| GYPSUM WALLBOARD PARTITIONS - SHAFTWALLS cad File Name GoldU.dw | |||||||
| Fire Rating | Ref. Design No. Description | STC | Test No. | ||||
| I-HOUR SHAFTWALL | |||||||
| 1 hr. | UL U499 2-1/2", 4" or 6" C-H, C-T or I-Studs 24" o.c. 1" Fire-Shield Shaftliner or 1" Fire-Shield Shaftliner XP, one layer of 5/8" Fire-Shield Hi-Abuse XP Gypsum Board applied vertically on side opposite shaftliner with 1" Type S steel screws, 12" o.c. Fire tested both sides. 1-1/2" (38.1 mm) mineral wool or glass fiber in cavity. | Est. 36 | NGC 2542 | ||||
| 42 | |||||||
| 2-HOUR SHAFTWALL | |||||||
| 2 hr. | GA WP 7076 2-1/2", 4" or 6" I-Studs 24" o.c. 1" Fire-Shield Shaftliner or 1" Fire-Shield Shaftliner XP. Base layer 5/8" Fire-Shield or 5/8" Hi-Abuse XP Gypsum Board applied horizontally on opposite side shaftliner attached with 1" Type S steel screws, 24" o.c. Face layer 5/8" Hi-Abuse XP attached vertically with 1-5/8" Type S screws 12" o.c. Fire tested both sides 1-1/2" (38.1 mm) mineral wool or glass fiber in cavity. | 40 | Based on NGC2615 | ||||
| 47 | Based on NGC 2616 | ||||||
| GYPSUM WALLBOARD COLUMN FIREPROOFING cad File Name Goidu dw | |||||||
| Fire Rating | Ref Design No Description | ||||||
| LIGHT COLUMN | |||||||
| 1 hr. | UL X528 One layer 5/8" Hi-Abuse XP Gypsum Board screw attached with GA CM 1851 1" Type S screws 12 o.c. to 1-5/8" 25 gauge minimum steel studs. Stud length to be 1/2" less than assembly height. Joints finished to minimum thickness of 1/16". | ||||||
| (10WF-49J | |||||||
| 2 hr. | UL X528 Two layers of 5/8" Hi-Abuse XP or 5/8" Fire-Shield Gypsum Board GA CM 2017 screw attached to 1-5/8" 25 gauge minimum steel studs. First layer attached with 1" Type S screws, 24" o.c. Second layer attached with 1-3/4" Type S screws 12 o.c. Stud length to be 1/2" less than assembly height. Joints finished to minimum thickness of 1/16". | ||||||
| 9 | |||||||
-
